LightTC™ Conical Reducer & Angular Offset Flexible Connectors: Engineer's Specification Guide
Quick Technical Answer for Process & Plant Engineers:When connecting piping or equipment with mismatched inlet/outlet diameters, installing a conical reducer flexible connector provides a continuous, ledge-free taper that prevents powder hang-up and eliminates product stagnation. When process lines are non-concentric or vibrating equipment shifts out of alignment, an angular offset flexible connector for vibratory sifter and screener lines absorbs multi-axis stress without creasing or tearing. Engineered with FDA-grade polymers and ultra-lightweight composite collars, the SOSHH® LightTC conical reducer connector delivers a 100% dust-tight seal while completely eliminating load cell drift flexible connector interference on high-precision loss-in-weight feeders.

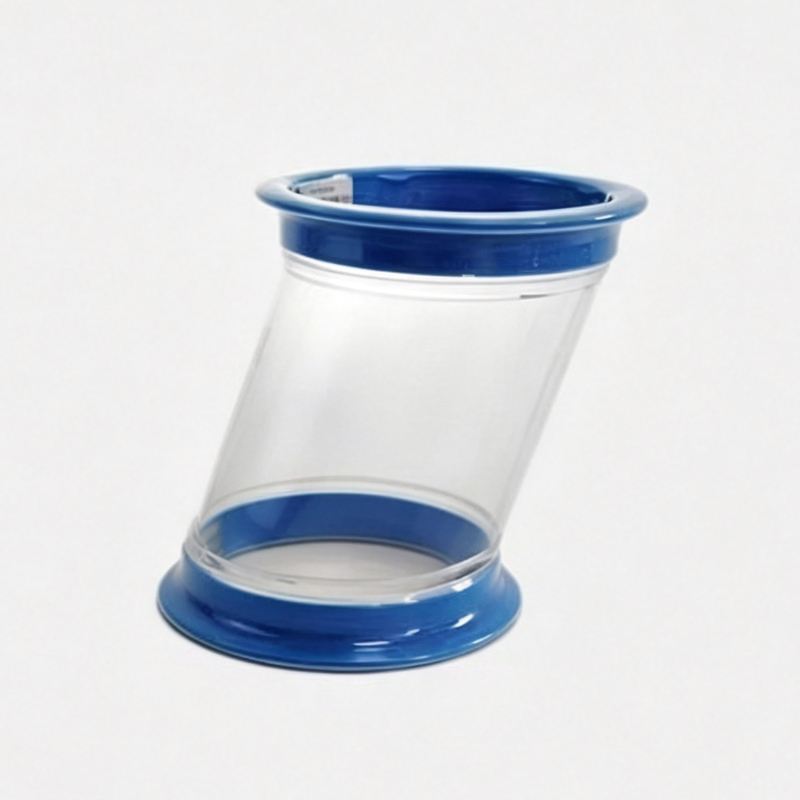

![SOSHH LightTC angular offset flexible connector for absorbing vibrating sifter misalignment and scale load cell drift]()

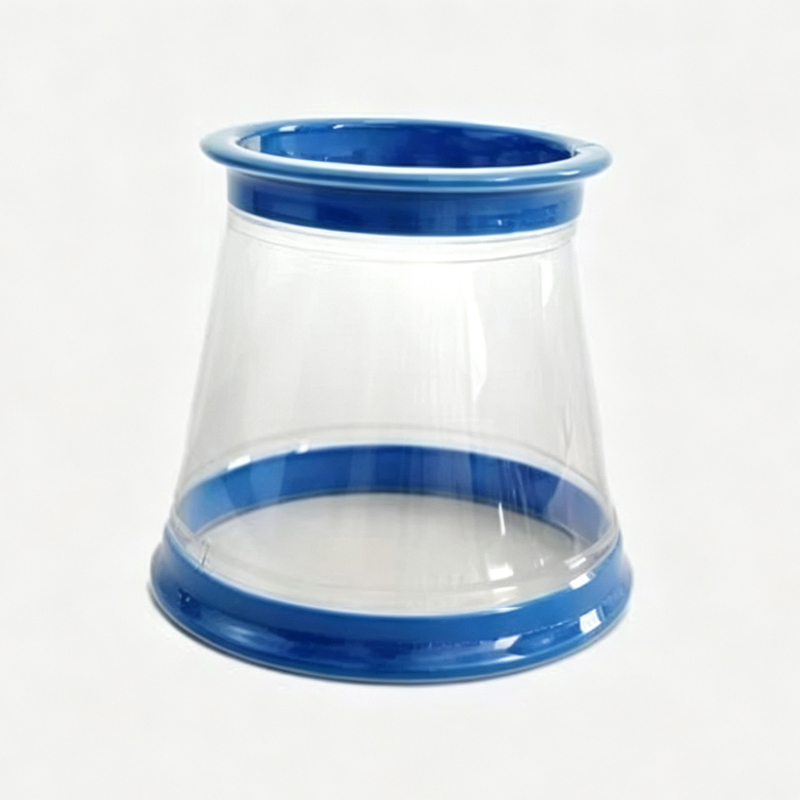

![SOSHH LightTC sanitary conical reducer flexible connector with lightweight composite Tri-Clamp ferrules for powder transfer]()
Solving 3 Critical Plant Alignment & Powder Dosing Challenges
1. Eliminating Material Hang-Up with Seamless Conical Reducers
Connecting two mismatched pipe diameters with conventional stepped steel transitions creates internal ledges where bulk solids, grains, and pharmaceutical powders accumulate. Installing a sanitary flexible reducer for screw conveyor inlets, cyclones, and rotary valves provides an uninterrupted conical slide path. Manufactured via continuous high-frequency dielectric fusion, our custom TPU reducing bellows feature smooth, non-stick internal bores with zero stitch lines, zero adhesive contamination, and zero dead zones, ensuring fast batch purges and Clean-In-Place (CIP) compliance.
2. Absorbing Multi-Axis Vibration with Pre-Formed Angular Offsets
Forcing a conventional straight sleeve between oscillating machinery and rigid downstream hoppers creates severe shearing strain, leading to perimeter wrinkling and early fatigue blowouts. Utilizing an angular offset flexible connector pre-accommodates static installation misalignments and continuous dynamic motion. With standard 15° pre-formed angles and custom offset geometry up to 25°, this flexible sleeve for powder handling maintains full flow velocity without choking the throat or pinching under continuous sifter oscillation.
3. Eliminating Continuous Scale & Load Cell Tare Drift
Standard heavy stainless steel Tri-Clamp ferrules add significant parasitic tare weight and transmit structural torque onto loss-in-weight feeders and batch-weighing hoppers. The LightTC conical reducer connector utilizes injection-molded, food-grade engineering composite collars that are over 80% lighter than stainless steel ferrules. By neutralizing external mechanical tension, this design functions as a true load cell drift flexible connector, safeguarding repeatable, gram-level dosing accuracy on gravimetric feeding systems.
Engineering Material Matrix for Sanitary & Hazardous Zones
| Engineering Property | SOSHH PU10 (Sanitary Standard) | SOSHH PU05 (Ultra-Flex Scale) | SOSHH AS-TPU (ATEX Rated) | SOSHH PTFE (Extreme Duty) |
|---|
| Primary Contact Polymer | 100% Virgin Polyether TPU | 100% Virgin Polyether TPU | Carbon-Dissipative Ether TPU | Molded / Welded Virgin PTFE |
| Target Application | Heavy sifter duty, chutes, transfer lines | Micro-dosing feeders, loss-in-weight scales | Combustible dust, explosive flour/sugar lines | Aggressive acids, harsh solvents, hot CIP |
| Nominal Wall Thickness | 1.0 mm (Wear-resistant) | 0.5 mm (Ultra-low reactive force) | 1.0 mm / 1.5 mm | 0.8 mm – 1.5 mm |
| Working Temperature | -20°C to +90°C (-4°F to +194°F) | -20°C to +80°C (-4°F to +176°F) | -20°C to +90°C (-4°F to +194°F) | -70°C to +260°C (-94°F to +500°F) |
| Surface Resistivity | Insulative (> 10¹¹ Ω) | Insulative (> 10¹¹ Ω) | Dissipative (10⁶ to 10⁹ Ω) | Chemically inert (> 10¹² Ω) |
| Regulatory Approvals | FDA 21 CFR 177.2600, EU 10/2011 | FDA 21 CFR 177.2600, EC 1935/2004 | ATEX Zones 20, 21, 22, IECEx | USP Class VI, FDA Compliant |
Engineering Note: In explosive dust environments where static accumulation presents an ignition hazard, always specify our antistatic flexible offset connector (SOSHH AS-TPU) to ensure continuous electrical dissipation across isolated equipment flanges.
Standard Tri-Clamp Sizing & Custom Transition Range
The tri-clamp flexible reducing sleeve line is designed for drop-in compatibility with standard sanitary Tri-Clamp, BS 4825, ISO 2852, and DIN 32676 hygienic fittings:
| Tri-Clamp Flange Size | Ferrule OD (Clamp Face) | Nominal Sleeve ID | Standard Height Range | Available Transition Configurations |
|---|
| TC 2.0" (DN50) | 64.0 mm | 48 mm – 50.8 mm | 80 mm – 300 mm | Concentric reduction to 1.5" / Straight / Offset |
| TC 3.0" (DN80) | 91.0 mm | 72 mm – 76.2 mm | 100 mm – 500 mm | Concentric reduction to 2.0" / Straight / Offset |
| TC 4.0" (DN100) | 119.0 mm | 98 mm – 102.0 mm | 100 mm – 600 mm | Conical reduction to 3.0" & 2.5" / 15° Offset |
| TC 6.0" (DN150) | 167.0 mm | 148 mm – 152.4 mm | 150 mm – 600 mm | High-volume conical reduction (e.g., 6" to 4") |
| TC 8.0" (DN200) | 217.0 mm | 198 mm – 203.0 mm | 150 mm – 800 mm | Eccentric reducer flexible sleeve / Custom angles up to 25° |
(Zero Tooling Fee Notice: All non-standard diameter combinations, custom millimeter lengths, and square-to-round custom transitions are fabricated without tooling charges.)
3-Step Sizing Guide for Custom Sifter & Feeder Connectors
To obtain a verified engineering drawing within 24 hours, maintenance and project teams only need to provide three operational dimensions:
- Step 1 — Verify Both Port Diameters (D1 & D2): Measure the outside diameter (OD) of the upper discharge spout and the lower receiving inlet, or confirm the standard sanitary Tri-Clamp flange size.
- Step 2 — Measure the Net Installed Gap (CL): Determine the vertical distance between the two clamping faces under resting conditions. For dynamic equipment, confirm the vibratory amplitude (stroke $\pm\text{mm}$).
- Step 3 — Define Centerline Offset (X/Y): Measure the horizontal distance between the center axis of D1 and the center axis of D2 to establish whether a concentric cone, an eccentric reducer flexible sleeve, or an angled offset profile is required.
Frequently Asked Engineering Questions (FAQ)
Q1: Will a conical reducer sleeve restrict powder discharge flow?
A: No. Unlike rigid stepped fittings that create flat shelves, the smooth internal transition of our conical reducer flexible connector maintains natural mass flow. The internal cone angle is matched to the bulk material's angle of repose during our pre-manufacturing technical review to prevent bridging and rat-holing.
Q2: Can a standard stainless steel Tri-Clamp latch onto a LightTC™ composite collar?
A: Yes. The external clamping bevel of the LightTC™ collar precisely replicates standard sanitary BS / DIN / ISO clamp profiles. Your team can utilize existing standard single-pin, double-pin, or safety toggle clamps without modifying piping or purchasing proprietary clamping systems.
Q3: Can you fabricate an eccentric reducer flexible connector, not just concentric cones?
A: Yes. In horizontal screw feeding lines and inclined chute layouts where the bottom surface must remain completely flat to eliminate product pooling, we manufacture custom eccentric reducer flexible sleeve components to exact site specifications with zero tooling fees.
Q4: What compliance documentation is included with export orders?
A: Every production batch leaves our facility with complete regulatory and quality dossiers, including FDA 21 CFR 177.2600 certificates, EU 10/2011 declarations of conformity, ATEX compliance certificates (for antistatic series), and individual laser caliper dimensional inspection reports for full batch traceability.
Request a 24-Hour CAD Review & Direct Factory Proposal
Whether you are retrofitting a misaligned screener, replacing leaking rubber boots on a loss-in-weight feeder, or commissioning a new hygienic packaging suite, our technical application engineers will review your dimensional parameters:
- Engineering Desk: AMIN@soshh.com
- Direct Web Portal: www.soshh.com
- Service Deliverables: 24-hour CAD Production Traveler, material validation certificate, 3D STEP model download, and formal DDP air/sea courier quotation.
