Sanitary Tri-Clamp Flexible PU Connectors with Integrated Gaskets
![Assortment of SOSHH custom length cylindrical and conical Tri-Clamp flexible PU connectors]()
Custom Length & Conical Flexible PU Sleeves
![SOSHH Sanitary Tri-Clamp flexible PU connector with hot-melt welded SS ferrules and integrated O-ring gasket]()
Tri-Clamp Flexible Connection Structure
💡 Executive Summary :Core Innovation: SOSHH® Tri-Clamp (TC) Flexible Connectors combine transparent FDA polyurethane (PU) sleeves with precision SS304/SS316L ferrules and integrated O-ring gaskets.Primary User Benefit: Eliminates separate rubber washers entirely—preventing accidental gasket displacement and deadly product batch contamination in food, dairy, and pharmaceutical API lines.Fast Maintenance: 100% sanitary tool-free assembly and disassembly in under 30 seconds.Standards Compliance: Certified for FDA 21 CFR 177.2600, EC 1935/2004, and ATEX Zone 20/21/22 explosive powder environments.
In hygienic powder conveying, sifter discharge, and rotary valve connections, traditional flexible sleeves requiring separate Tri-Clamp gaskets create major operational headaches. Field operators frequently misalign loose gaskets during CIP maintenance, leading to powder micro-leakage or, worse, loose rubber washers dropping into the process stream.
The SOSHH® Tri-Clamp Flexible PU Connector solves this bottleneck with a seamlessly integrated O-ring gasket design. The transparent PU body is hot-melt welded directly to stainless steel TC quick-clamp connectors, delivering a leak-proof, zero-contamination seal every single time.
Key Features & Engineering Advantages
- Integrated Sanitary Gasket (Zero Contamination Risk): Built-in O-ring seal eliminates the need for separate loose washers. Saves installation time while completely preventing gasket displacement and batch contamination.
- Standard Sanitary Tri-Clamp Compatibility: Both ends feature precision SS304 or SS316L ferrules compatible with all standard hygienic TC clamps.
- 30-Second Tool-Free Assembly: Ergonomic quick-clamp mechanism allows plant operators to remove and reinstall flexible joints in under 30 seconds during Clean-In-Place (CIP) washdowns.
- 100% Transparent Visual Flow Monitoring: Crystal-clear PU wall allows real-time visual inspection of powder flow, bridging, and material buildup.
![Sanitary Tri-Clamp flexible connector key features and tool-free connection diagram]()
Tri-Clamp Flexible Joint Key Features
Material Selection Matrix (FDA & ATEX Compliant Grades)
Select the ideal sleeve material formulation based on your specific bulk material properties, working temperature, and explosion hazard zoning:
| Material Code | Material Formulation | Primary Application | Color / Appearance | Wall Thickness | Temp Range (°C) | Surface Resistivity (Ω) | Food Grade Compliance |
|---|
| PU10 | Polyurethane (PU) | General-purpose bulk powder handling & granule transfer | Clear / Transparent | 1.0 mm | -20 to +110 | > 10¹² | FDA & EC Compliant |
| PU05 | Polyurethane (PU) | Precision weighing hoppers & loss-in-weight feeders | Clear / Transparent | 0.5 mm | -20 to +110 | > 10¹² | FDA & EC Compliant |
| PUHT | High-Temp Polyurethane | High-temperature processing & hot air drying lines | Clear / Transparent | 1.0 mm | -20 to +150 | > 10¹² | FDA & EC Compliant |
| PUAS | Anti-Static Polyurethane | Handling combustible & explosive powders (Sugar, Starch) | Clear / Transparent | 1.0 mm | -20 to +110 | < 10⁹ (ATEX Zone 20/21/22) | FDA & EC Compliant |
| PURF | Fiber-Reinforced PU | High positive and negative pressure pneumatic conveying | Opaque White | 0.8 mm | -20 to +110 | > 10¹² | FDA & EC Compliant |
| PUFL | Helix Wire Reinforced PU | Dynamic flexing, stroke alignment & offset piping | Translucent White | 0.6 mm | -20 to +110 | > 10¹² | FDA & EC Compliant |
| TE02 | 100% Pure PTFE | Corrosive acids, strong bases, organic solvents & high heat | White | 0.2 mm | -40 to +300 | > 10¹² | FDA & EC Compliant |
| TE02AS | 100% Pure Anti-Static PTFE | Corrosive chemicals in ATEX hazardous dust environments | Black | 0.2 mm | -40 to +300 | < 10⁶ | FDA & EC Compliant |
![]()
![SOSHH Tri-Clamp flexible PU connector material matrix showing PU10, PU05, PUHT, and PUAS specifications]()
![SOSHH reinforced polyurethane and PTFE flexible sleeve material specification matrix showing PURF, PUFL, TE02, and TE02AS]()

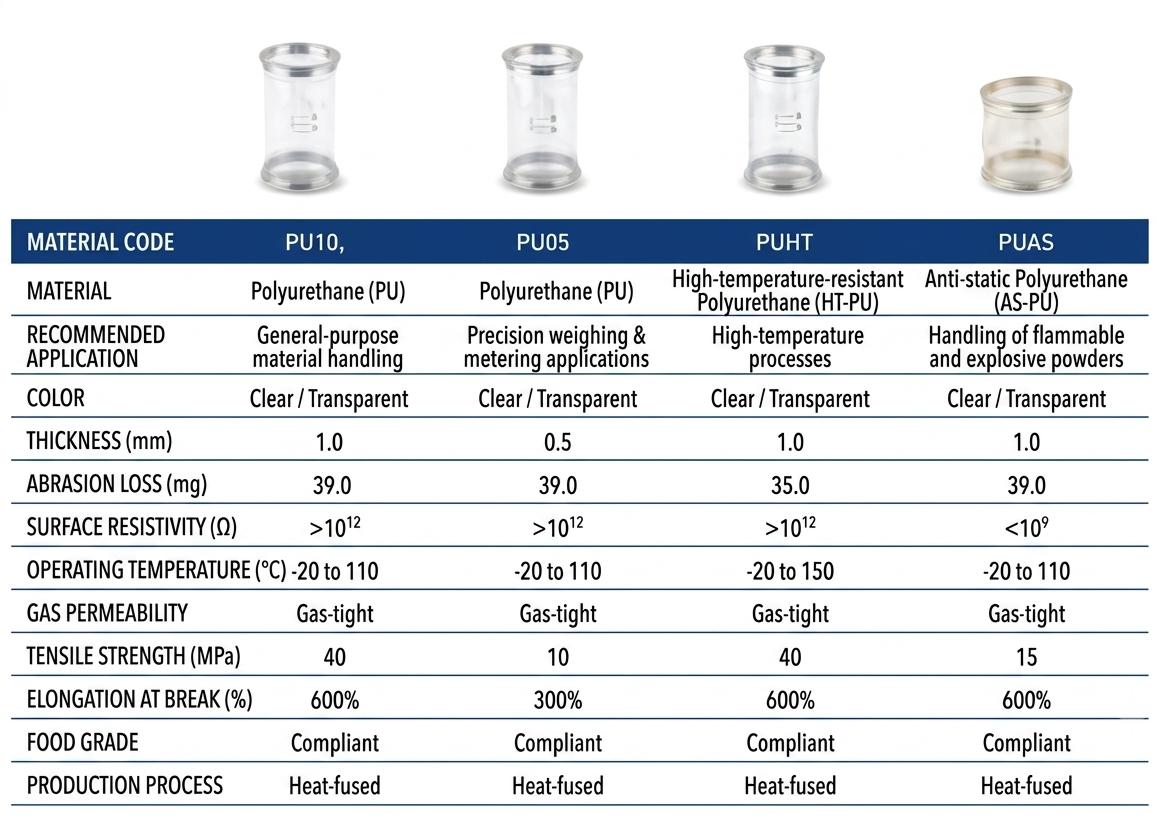

Polyurethane (PU) Sleeve Material Specification Matrix (PU10 to PUAS) and Reinforced PU and PTFE Sleeve Material Specification Matrix (PURF to TE02AS)
Model & Dimension Matrix (DN76 to DN508)
SOSHH® supplies a complete standard size range matching international TC sanitary flange specifications:
| Item / Sr. No. | Joint Outer Dia. D (mm) | Clamp Flange O.D. C (mm) | Available Sleeve Length CL (mm) | Ferrule Material Options |
|---|
| 1 – 9 | 76, 89, 102, 104, 108, 114, 127, 133, 140 | 91, 106, 119, 119, 119, 130, 145, 145, 155 | 100 to 1000 mm (Customizable) | Stainless Steel 304 / 316L |
| 10 – 18 | 152, 154, 159, 168, 180, 204, 219, 254, 273 | 168, 183, 183, 183, 200, 217, 233, 268, 286 | 100 to 1000 mm (Customizable) | Stainless Steel 304 / 316L |
| 19 – 27 | 305, 325, 356, 377, 406, 425, 457, 476, 508 | 319, 350, 380, 400, 430, 450, 480, 500, 530 | 100 to 1000 mm (Customizable) | Stainless Steel 304 / 316L |
- Custom Length (CL): Standard collar lengths include 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 500 mm, and up to 1000 mm. Custom non-standard lengths are prototyped within 48 hours (minimum length: 100 mm).
![Engineering dimensional diagram for Tri-Clamp flexible connector showing Joint OD D, Flange OD C, and Length CL]()
Tri-Clamp Connector Model Dimensions
Step-by-Step Installation Guide (< 30 Seconds)
Step 1: Weld TC Quick-Clamp Connectors (Skip if pipeline is pre-welded)
Measure the outside diameter (O.D.) of your equipment stub or piping. Select the matching SOSHH® stainless steel TC ferrule and complete full orbital welding on both pipe ends sequentially.
![Step 1 guide for welding TC quick-clamp connectors on field equipment piping]()
Weld TC Quick-Clamp Connectors Step 1
Step 2: Mount Flexible Sleeve & Tighten TC Clamps
- Align the flexible sleeve between the top and bottom welded TC ferrules.
- Position the integrated O-ring ferrule directly against the pipe flange face.
- Sequentially place standard sanitary Tri-Clamp clamps on both ends and hand-tighten the wing nuts or bolts to complete a dust-tight, leak-proof assembly.
![Step 2 guide for mounting TC flexible sleeve and tightening Tri-Clamp clamps]()
Mount Sleeve and Tighten TC Clamps Step 2
🛡️ Quality Assurance & Official Test Reports
All SOSHH® Tri-Clamp flexible connectors are manufactured in accordance with strict ISO9001 hygienic quality management procedures. Download our third-party testing credentials below:
![Certified quality assurance: SGS, MA, ilac-MRA, and CNAS laboratory testing reports for sanitary flexible connectors]()
📄 [Download PDF Report] 📐 Technical Resources, CAD Drawings & RFQ Downloads
Frequently Asked Questions
Q: Why choose an integrated gasket Tri-Clamp flexible connector over standard sleeves?
A: Traditional sleeves require loose rubber or silicone gaskets sandwiched between flanges. During vibration or routine washdowns, loose gaskets shift, leading to powder leaks or batch contamination. SOSHH® integrated O-ring gaskets are fused directly to the ferrule, guaranteeing 100% alignment and zero gasket drop.
Q: Can these Tri-Clamp connectors withstand CIP (Clean-In-Place) washdown chemicals?
A: Yes. Our PU10, PU05, and PUHT polyurethane grades resist standard CIP sanitizers and hot water up to 110°C (150°C for PUHT). For harsh concentrated acids or solvents, select our TE02 100% PTFE flexible sleeves rated from -40°C to +300°C.
Q: Are 3D CAD STEP files available for plant equipment designers?
A: Yes. We provide free 3D STEP models and 2D CAD drawings for all standard TC sizes (DN76 to DN508). Contact our engineering desk at soshh.com to receive instant CAD files for SolidWorks or AutoCAD integration.
Q: What is the global shipping lead time for custom TC sleeve lengths?
A: Standard TC sizes ship from stock within 24 hours. Custom flange diameters or specific sleeve lengths (CL) are manufactured within 48 hours and delivered worldwide via DHL/FedEx Express in 7–14 days with DDP (Delivered Duty Paid) terms available.
🛠️ B2B Engineering Services & Factory Support
- Free OEM Sample Express: Request a free test sample for OEM trial runs and plant validation. Shipped via DHL Express within 24 hours.
- Custom Prototyping Desk: Need non-standard flange diameters or eccentric offset sleeves? Our engineering team designs custom solutions within 48 hours.
- Global DDP Express Delivery: Hassle-free door-to-door delivery with prepaid duties to North America, Europe, Southeast Asia, and Australia.
Conclusion & Actionable Next Steps
Eliminate gasket drops, line downtime, and compliance risks with SOSHH® Sanitary Tri-Clamp Flexible PU Connectors.
👉 Need custom ferrule CAD drawings or an official factory quotation?
Contact our engineering team at soshh.com to receive complete technical support within 12 hours.
