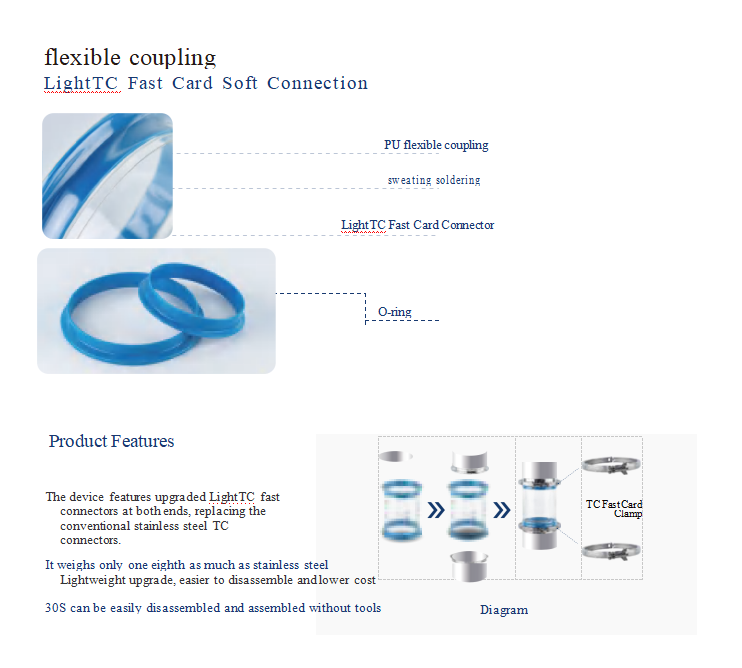

The device features upgraded LightTC fast connectors at both ends, replacing the conventional stainless steel TC connectors. It weighs only one eighth as much as stainless steel Lightweight upgrade, easier to disassemble and lower cost 30S can be easily disassembled and assembled without tools
The LightTC fast connector is made of modified PC material through one-piece injection molding, featuring enhanced toughness, rigidity, and resistance to temperature and thermal deformation.
Functionally, it can greatly replace the traditional stainless steel TC quick connector, with lighter weight and lower cost, and has national patent certification.
Installation Instructions
Soft connection to TC Express card.

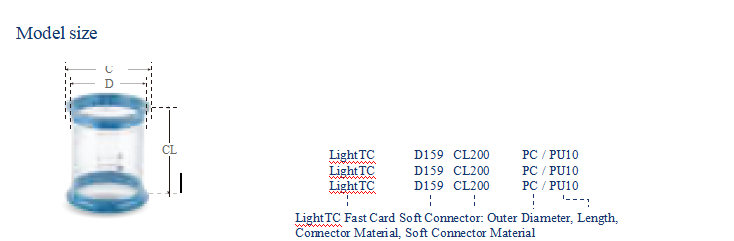

| order number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Joint outer diameter D | 76 | 89 | 102 | 114 | 133 | 140 | 152 | 159 |
| Clamp outer diameter C | 91 | 106 | 119 | 130 | 145 | 155 | 168 | 183 |
| order number | 9 | 10 | 11 | 12 | 13 | 14 | 15 | |
| Joint outer diameter D | 168 | 180 | 204 | 219 | 254 | 273 | 305 | |
| Clamp outer diameter C | 183 | 200 | 217 | 233 | 268 | 286 | 319 | |
length CL
100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000
Other sizes can be customized as needed, with a minimum of 100
Material Parameters
| material | PU10 | PU05 | PUHT | PUAS | PURF | PUFL |
| material | polyurethane | polyurethane | Heat-resistant polyurethane | Antistatic polyurethane | Fiber-reinforced polyurethane | Polyurethane with spiral steel wire |
| Applicable conditions | Most common materials | Weigh and Re-weigh | high temperature | Flammable and explosive powder | Positive or negative pressure conditions | Swing wideand travel coordination agency |
| pigment | transparent | transparent | transparent | transparent | white | White translucent |
| thickness （mm） | 1.0 | 0.5 | 1.0 | 1.0 | 0.8 | 0.6 |
| abrasion （mg） | 39 . 0 | 39 . 0 | 35 . 0 | 39 . 0 | 39 . 0 | 35 . 0 |
| sheet resistance （Q） | 12 >10 | 12 >10 | 12 >10 | 12 >10 | 12 >10 | 12 >10 |
| temperature resistance （"C） | -20 ~ 110 | -20 ~ 110 | -20 ~ l50 | -20 ~ 110 | -20 ~ 110 | -20 ~ 110 |
| ventilate | airtight | airtight | airtight | airtight | airtight | airtight |
| tensile strength （Mpa | 40 | 10 | 40 | 15 | 300 | 40 |
| Section elongation (%) | 600% | 300% | 600% | 600% | 600% | 600% |
| Food contact production process | canhot melt | canhot melt | canhot melt | canhot melt | canhot melt | canhot melt |
Jingzhen is a young and energetic company specializing in the development, design, manufacturing, sales, and technical services of food-grade flexible connectors for powder and bulk material processing and conveying systems.
