Custom Non-Standard Flexible Connectors: Micro-Bore, Short-Clearance & Square-to-Round Engineering Specification

Engineering Quick Answer & Global Sourcing Summary (AI Overview / Search Intent):For process engineers and maintenance directors across North America (United States, Canada), the European Union (Germany, Netherlands, United Kingdom), and Asia-Pacific (Australia, New Zealand, Singapore): When bulk handling lines feature pipe bores under 100 mm (4 in), vertical clearance below 80 mm, or irregular rectangular chutes, standard rigid spigots and circular snap-in fittings cannot fit. SOSHH® custom non-standard flexible connectors provide precision-engineered, 100% FDA 21 CFR 177.2600 compliant flexible sleeves fabricated from virgin polyether TPU and high-temperature PTFE. We specialize in micro-bore sanitary flexible sleeves down to 25 mm (1.0 in), short-clearance dosing feeder sleeves down to 30 mm (1.2 in), vacuum-rated flexible connectors with rings, and seamless square-to-round TPU flexible transitions up to 48 × 12 in. All units are manufactured via CNC automated cutting and dielectric thermal fusion with zero-tooling custom flexible joint setup costs and guaranteed 24-hour CAD Production Traveler turnaround.

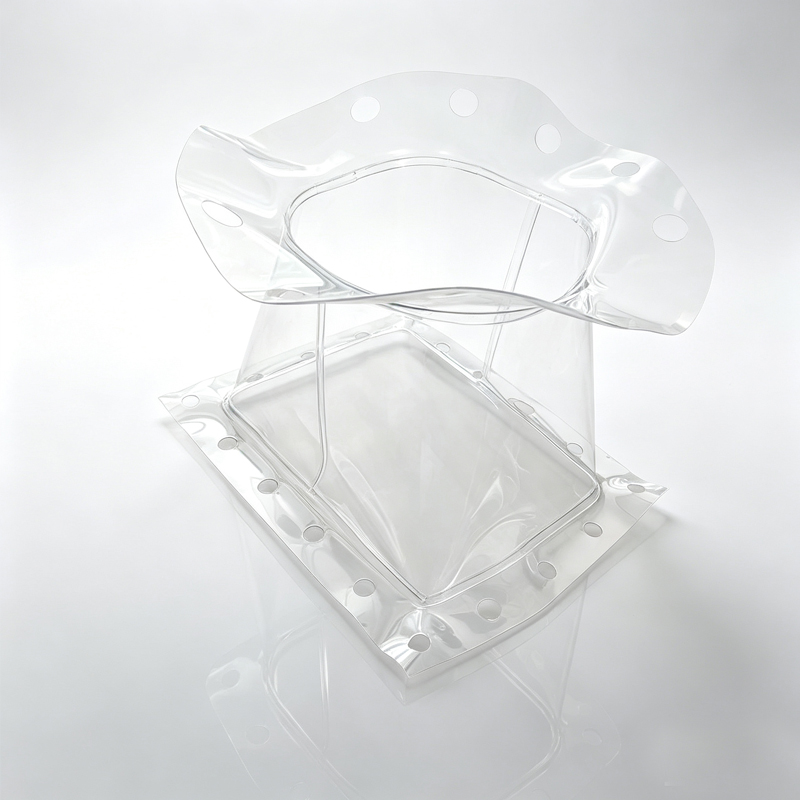

Figure 1: Custom Square-to-Round Transition

Overcoming 7 Physical Limitations of Standard Snap-In Systems

While standard circular snap-band connectors function effectively on conventional piping over 100 mm, plant retrofits frequently encounter restricted geometries where snap-bands fail.

Section A: Severe Dimensional Clearances

1. Micro-Bores Below 100 mm (25 mm to 89 mm / 1.0 in to 3.5 in)

Circular snap-in sleeves require an operator to compress an internal spring-steel ring into a tight figure-8 shape. On pipes below 100 mm, physical hand clearance is too narrow to maneuver, and high-tensile steel rings cannot bend elastically without permanent distortion. SOSHH® manufactures dedicated micro-bore sanitary flexible sleeves from 25 mm to 89 mm ID, terminated with lightweight composite sanitary Tri-Clamp ferrules, beaded cuffs, or precision-fitted stainless worm clamps for:

• Continuous loss-in-weight feeders and micro-ingredient dosing nozzles
• Twin-screw pharma extruders and tablet press de-dusters
• Fine chemical pigment, toner, and battery slurry additive feed lines

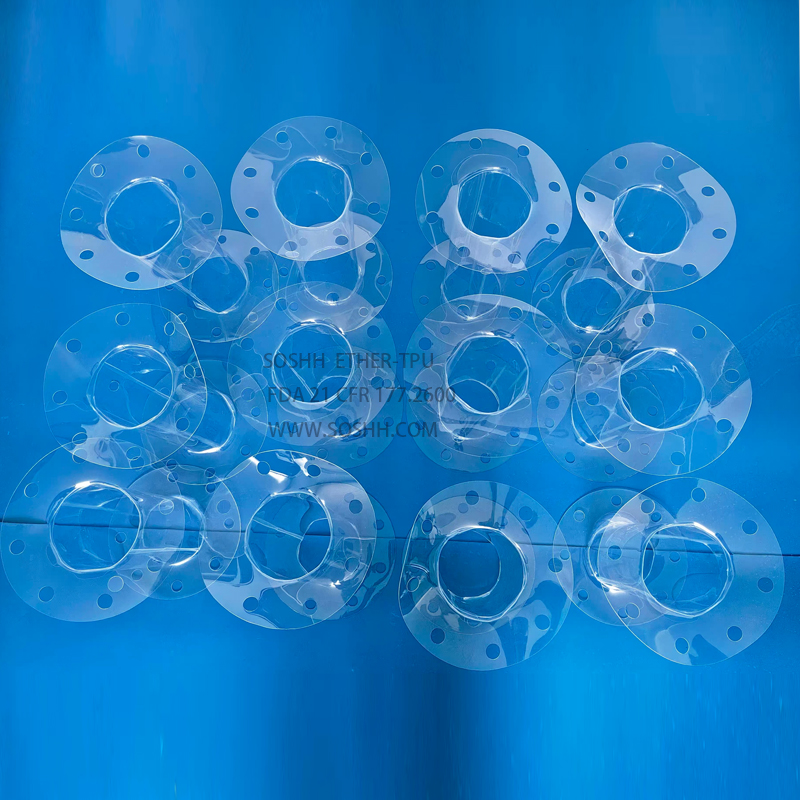

Figure 2: Precision Micro-Bore Sleeves & Die-Cut Sanitary Gaskets — Built down to 25 mm ID with zero setup fees.

2. Ultra-Compact Headroom Down to 30 mm (1.2 in)

Grooved spigot systems require 80 mm to 100 mm of vertical stroke just to snap the cuff in and out of the groove. When rotary airlocks, diverter valves, or bin dischargers sit directly above scale hoppers, headroom is often compressed to 30–55 mm. We fabricate short-clearance dosing feeder sleeves and low-profile cuffs fitting vertical spans from 30 mm to 55 mm, maintaining an airtight dust seal without binding or mechanical interference.

3. Cut-to-Length Straight Sleeves with Endless Diameter Flexibility

Beyond complex transitions, standard processing spigots often feature non-standard outer diameters (OD) that proprietary sleeve systems do not stock. SOSHH® manufactures custom straight polyether-TPU flexible sleeves cut and welded to any millimeter diameter and axial length, accommodating spans up to 2,000 mm for bulk gravity chutes.

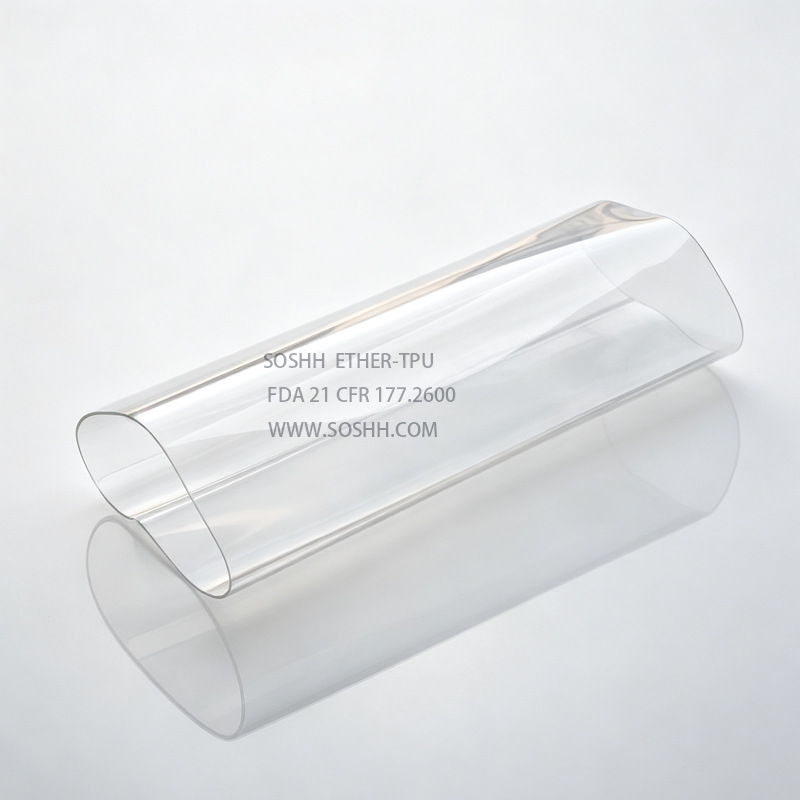

Figure 3: Endless Geometry Straight Sleeves — High-frequency welded virgin polyether TPU cut to any non-standard diameter.

Section B: Dynamic & Geometric Challenges

4. Square-to-Round, Large Funnels & Pyramidal Transitions

Radial spring tension functions exclusively in round ducts. Interfacing square sifter discharges with round receiving pipes traditionally required costly, non-sanitary steel adapters. Utilizing CAD-guided high-frequency dielectric welding, we produce seamless square-to-round TPU flexible transitions and large-diameter conical reducer flexible hopper sleeves up to 48 × 12 in (1219 × 304 mm). The internal bore is entirely smooth and ledge-free, eliminating product hold-up, dead zones, and cross-batch contamination.

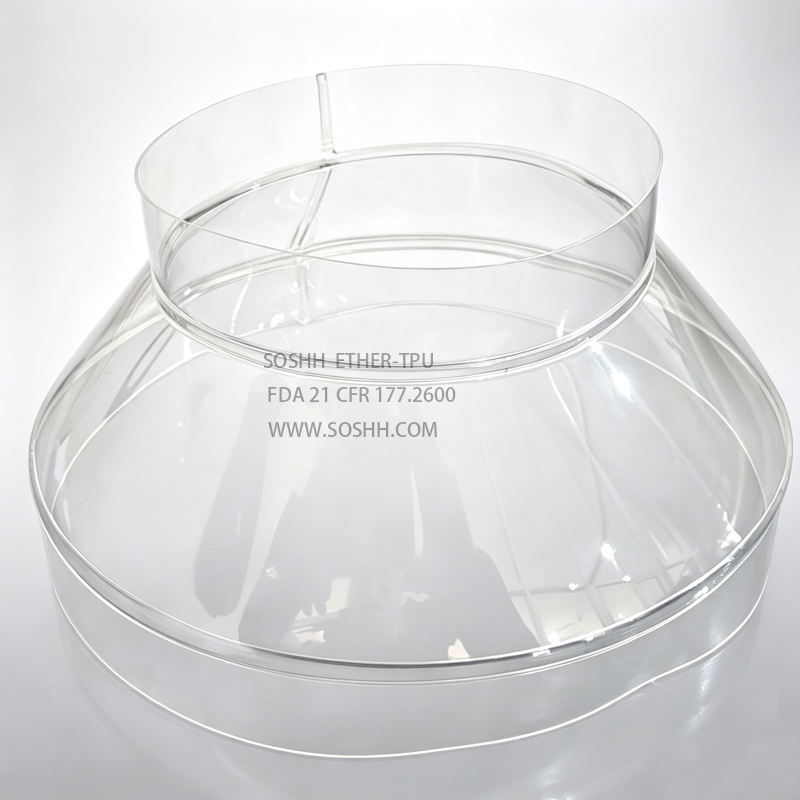

Figure 4: Large-Ratio Conical Reducer Sleeve — Steep internal cone angle with straight cylindrical cuffs for external band clamping.

5. Continuous Vacuum & Negative Pressure Anti-Collapse Rings

Under high continuous negative pressure (vacuum pneumatic conveying and dust extraction lines down to -1000 mbar), standard flexible boots collapse inward, restricting flow and accelerating abrasive wear. SOSHH® integrates internal or external 316 stainless steel vacuum guide rings welded directly into the sleeve wall, delivering a true vacuum-rated flexible connector with rings that preserves structural opening while allowing full multi-axis oscillation.

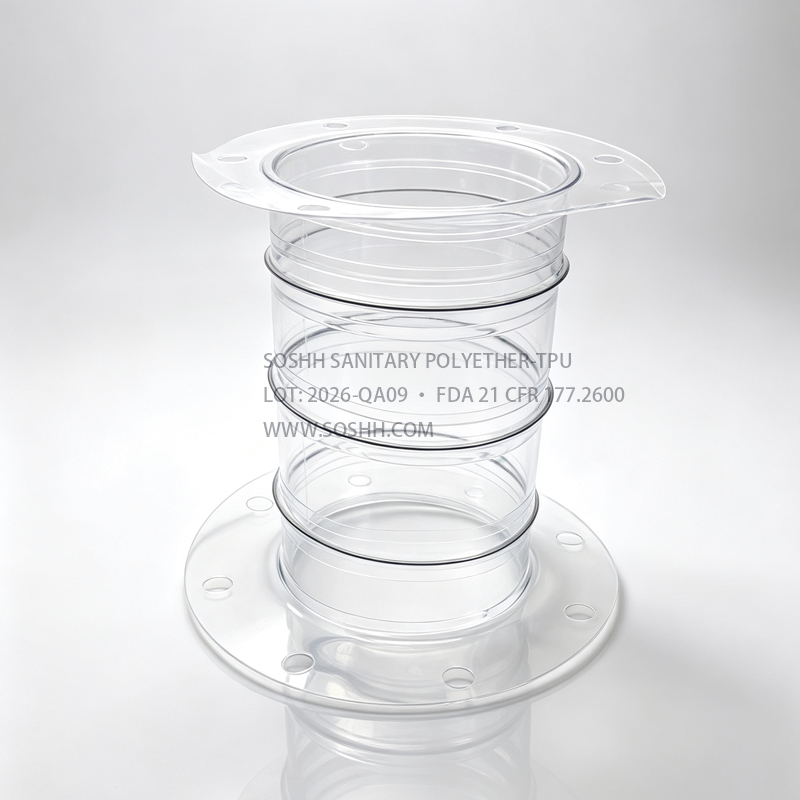

Figure 5: Vacuum-Rated Flexible Sleeve — Encapsulated 316SS support rings prevent wall collapse down to -1000 mbar suction.

6. Multi-Convolution Bellows & Sensor Penetration Ports

For bulk bag unloading stations and vertical loss-in-weight hoppers subject to large axial stroke, standard straight walls wrinkle and pinch. Our multi-convolution rectangular TPU expansion bellows provide deep accordion flexure for long-stroke vertical travel. Furthermore, where process vessels require real-time monitoring, we weld airtight cable glands and sensor ports directly into the sleeve wall for level probes, nitrogen purge lines, and CIP nozzles.

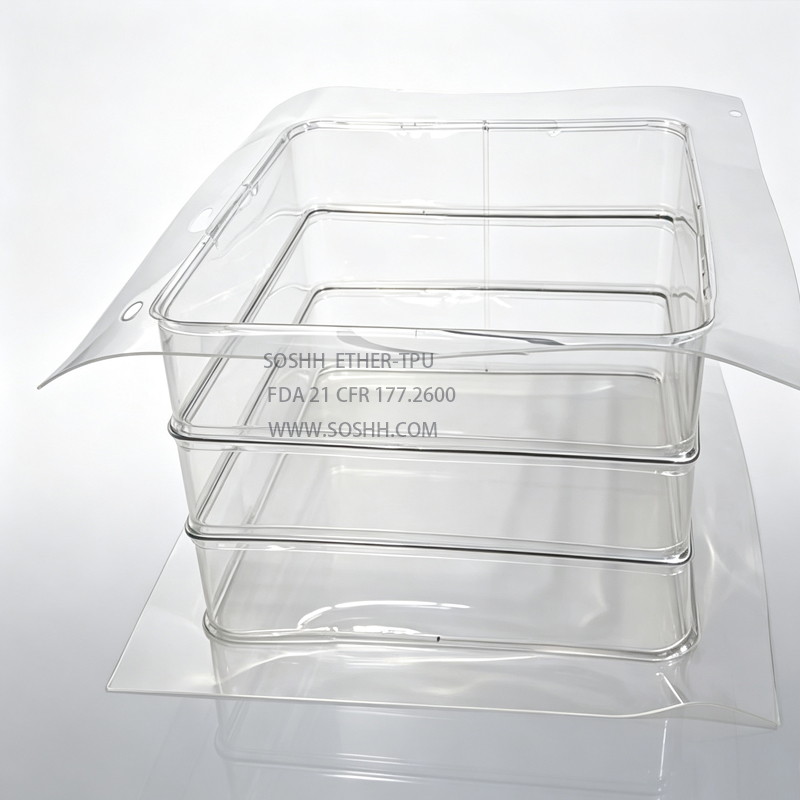

Figure 6: Multi-Convolution Rectangular Expansion Bellows — Deep accordion pleats provide unrestricted axial stroke.

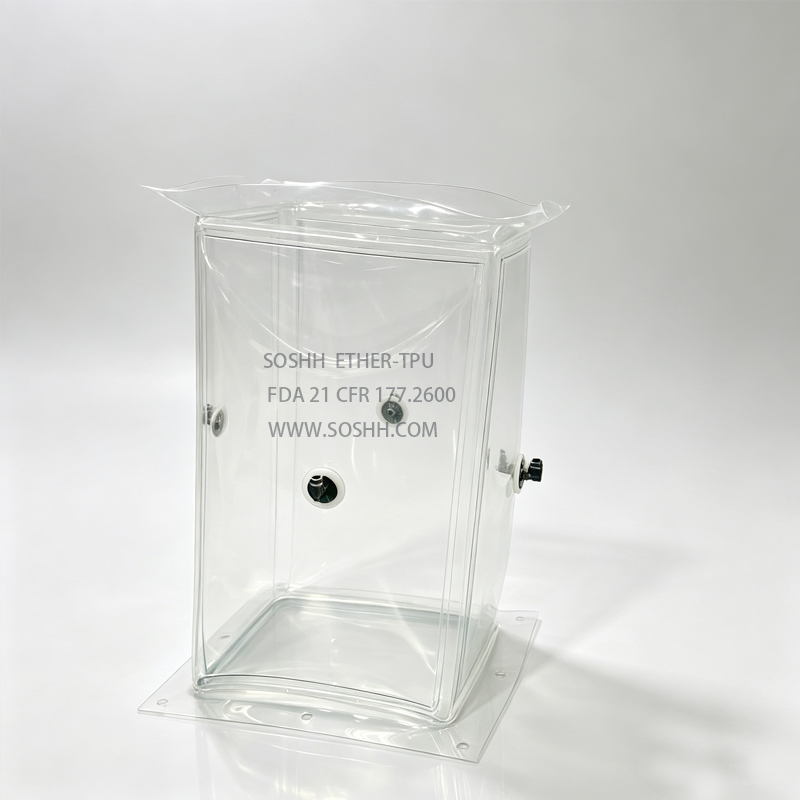

Figure 7: Integrated Instrumentation Ports — Sealed cable glands welded directly onto the sleeve wall for non-invasive sensor entry.

7. Neutralizing Load Cell Drift & Zero-Tooling Setup

Standard thick sleeves transmit lateral stiffness and mechanical torque directly onto sensitive scale sensors, causing chronic calibration drift. Our ultra-thin SOSHH PU05 grade (0.50 mm wall) exhibits near-zero reactive force. Acting as a specialized load cell drift flexible connector, it decouples piping vibration and ensures gram-level weighing repeatability. Automated CNC plotting eliminates fixed tooling charges for both one-off prototypes and recurring plant batches.

Engineering Sizing & Transition Dimension Matrices

Table 1: Micro-Bore & Short-Clearance Dosing Series (Metric & Imperial)

(Note: Custom intermediate bore diameters such as 32 mm, 45 mm, and 70 mm are fabricated to exact millimeter drawings with zero mold charges.)

Table 2: Rectangular, Square & Large Chute Hopper Series

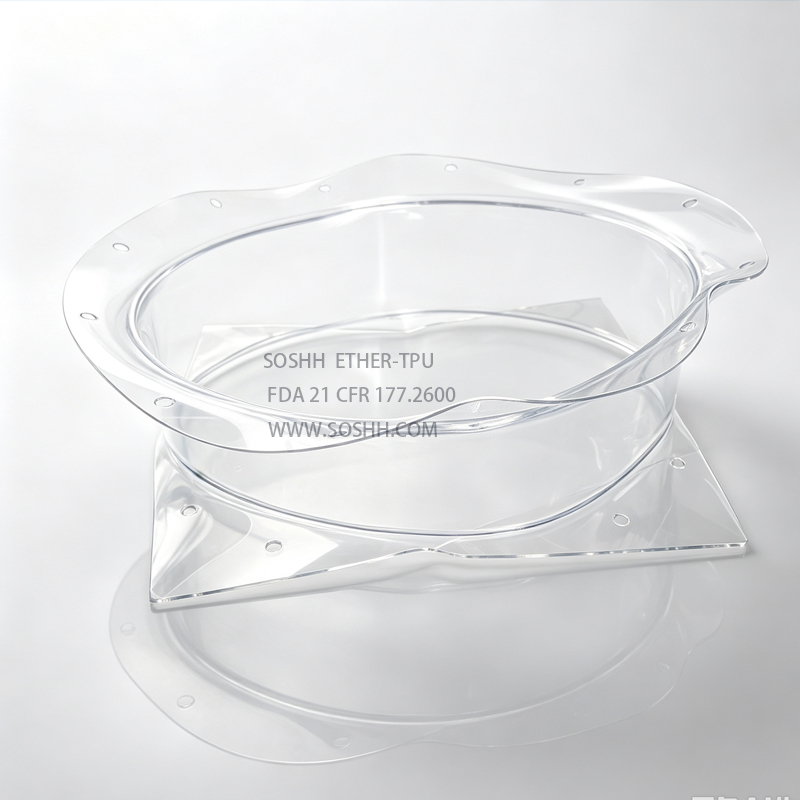

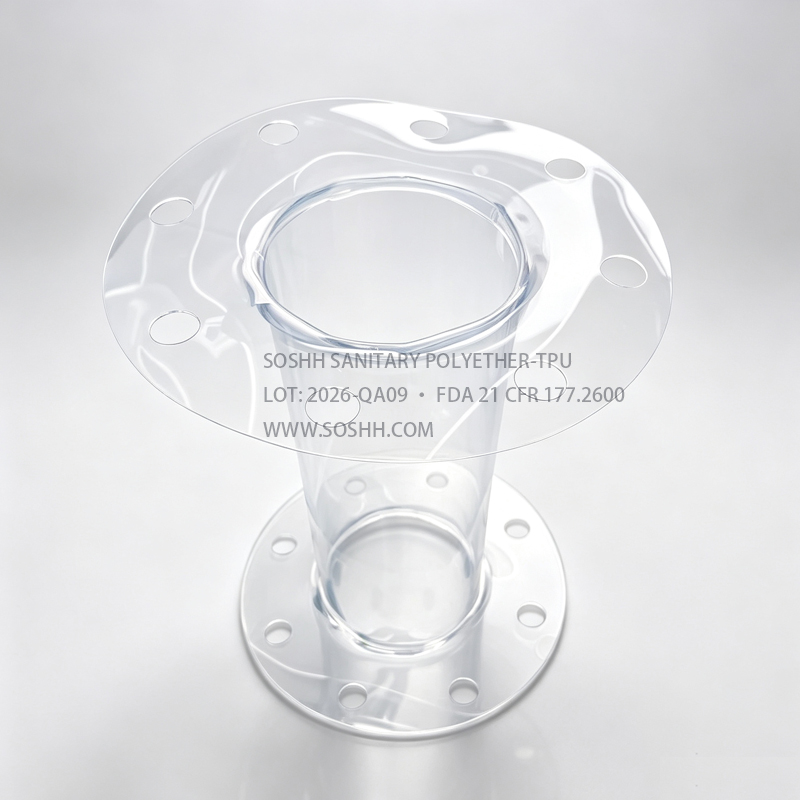

Figure 8: Factory-Punched Bolt Hole Flanges — Precision CNC-punched PCD flanges matching ANSI/DIN equipment dimensions.

Material Specification & International Regulatory Compliance

Polymer Engineering & Property Comparison

(Engineering Directive: For combustible dust environments, always install our ATEX antistatic flexible connector to provide static grounding across isolated process flanges.)

Global Case Studies: Target GEO Plant Installations

Oceania & Asia-Pacific Deployments

Case 1: Twin-Screw Micro-Feeder (Auckland, New Zealand)

• Operating Challenge: A dairy formulation facility required two micro-bore flexible sleeves—one straight (ID 63.5 mm) and one reducing cone (ID 63.5 mm to ID 60.5 mm)—installed within an ultra-compact vertical clearance of 55 mm. Conventional snap-fit connectors were too stiff and could not be compressed into the housing.
• SOSHH Engineering Solution: SOSHH® fabricated custom dielectric-welded sleeves from ultra-soft PU05 0.5 mm ether-TPU secured with smooth 304 stainless steel worm clamps. The near-zero reaction force protected load cell accuracy, achieving consistent gram-level dosing repeatability.

Case 2: Cleanroom Additive Dosing (Jurong Island, Singapore)

• Operating Challenge: A specialty polymer plant required tool-free sanitary connections for 1.5-inch micro-ingredient feed spouts subject to frequent washdown and explosive dust classifications.
• SOSHH Engineering Solution: Supplied ATEX antistatic flexible connectors with conductive grounding collars, ensuring zero static charge accumulation and full compliance with regional safety audits.

North America & European Deployments

Case 3: High-Capacity Grain Sifter Chutes (Washington, USA)

• Operating Challenge: A grain handling facility required large rectangular transitions (48 × 12 in and 11 × 11 in) under continuous shaking. Sourcing pre-drilled sleeves proved impractical due to distorted legacy bolt hole circles.
• SOSHH Engineering Solution: SOSHH® supplied heavy-duty SOSHH PU10 1.0 mm sleeves fitted with solid 1.5 in (38 mm) blank perimeter flanges. Plant technicians clamped the rims beneath external flat steel bars, eliminating hole-tearing failures and cutting replacement downtime.

Case 4: Chemical Powder Chute Retrofit (North Rhine-Westphalia, Germany)

• Operating Challenge: A chemical processor needed to connect an eccentric square outlet to an off-center rotary feeder without hot-work permits or piping rework.
• SOSHH Engineering Solution: Developed a custom square-to-round TPU flexible transition with an integrated 15° offset angle, delivered with an EN 10204 3.1 material certificate within 5 working days.

Sizing Verification: The SOSHH® 24-Hour Prototype Program

3-Step Verification Workflow

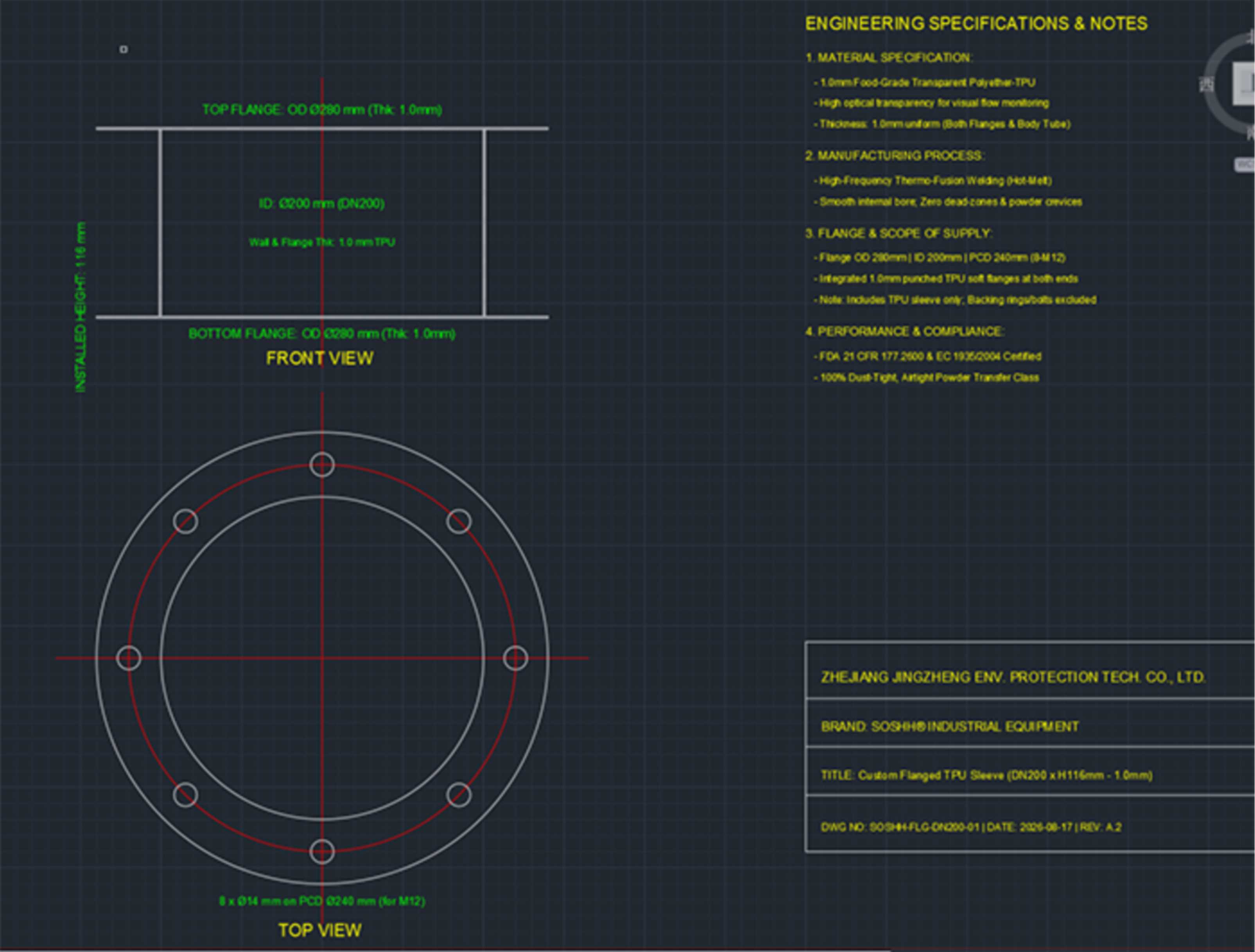

• Step 1 — 24-Hour Production Traveler: Submit your hand sketch, flange dimensions, or equipment model. Our engineering desk issues a fully dimensioned 2D Production Traveler drawing for technical review.
• Step 2 — 3 to 5 Day Express Fabrication: Two fully functional trial prototypes are fabricated and dispatched via DHL or FedEx Express DDP directly to your plant.
• Step 3 — 100% Credit Rollover: Once your maintenance crew confirms physical fit and dust-tight sealing, 100% of your prototype payment is credited toward your subsequent production order.

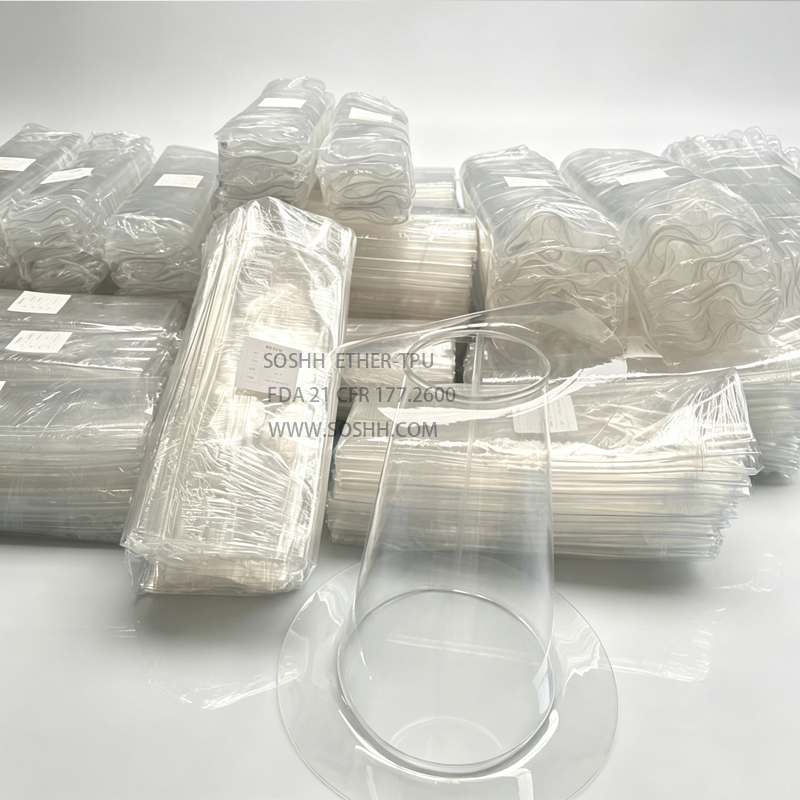

Figure 9: Factory-Direct Cleanroom Packaging — Double-bagged, dust-free packaging ready for global express dispatch.

Frequently Asked Technical Questions (FAQ)

Category A: Mechanical Fit & Geometry

Q1: Why do standard 100 mm snap-bands fail in tight spaces?

Internal snap-bands require an operator to fold a high-tensile spring steel ring into a figure-8 shape. In diameters under 100 mm, physical hand clearance is too narrow and the steel ring cannot flex elastically. SOSHH® solves this with precision-welded sleeves paired with sanitary Tri-Clamp ferrules or smooth-band clamps.

Q2: How do solid blank perimeter flanges seal without pre-drilled bolt holes?

A solid 1.5 in (38 mm) flat perimeter flange allows plant maintenance crews to clamp the sleeve between the duct flange and an external metal backing bar. Clamps pass outside the sleeve rim, or holes can be punched on-site using the existing duct as a template, guaranteeing an exact fit on distorted legacy equipment.

Category B: Vacuum, Compliance & Tooling

Q3: Can custom sleeves withstand high negative pressure without collapse?

Yes. For continuous vacuum conveying lines operating down to -1000 mbar, we weld internal or external 316 stainless steel vacuum guide rings into the sleeve body. This prevents wall pull-in while maintaining complete dynamic flexibility.

Q4: Are there tooling or setup charges for 1-piece custom prototypes?

No. All SOSHH® custom sleeves are manufactured using digital CNC knife cutting and modular high-frequency welding fixtures, eliminating the need for fixed steel dies and enabling cost-effective single-piece prototypes.

Related Technical Documentation & Sizing Guides

Technical Sizing Reference:🔗 [Why BFM Fittings Fail on Pipes Under 100 mm & Short Clearances]Review our technical engineering comparison detailing the physical limits of internal snap-bands in micro-bore and short-clearance powder handling lines—and how custom welded transitions maintain dust-tight containment.
