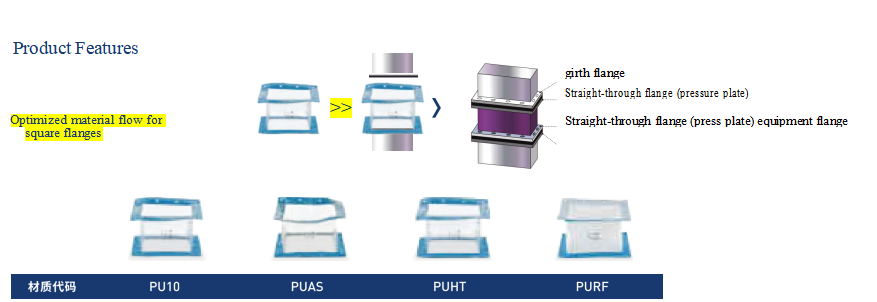

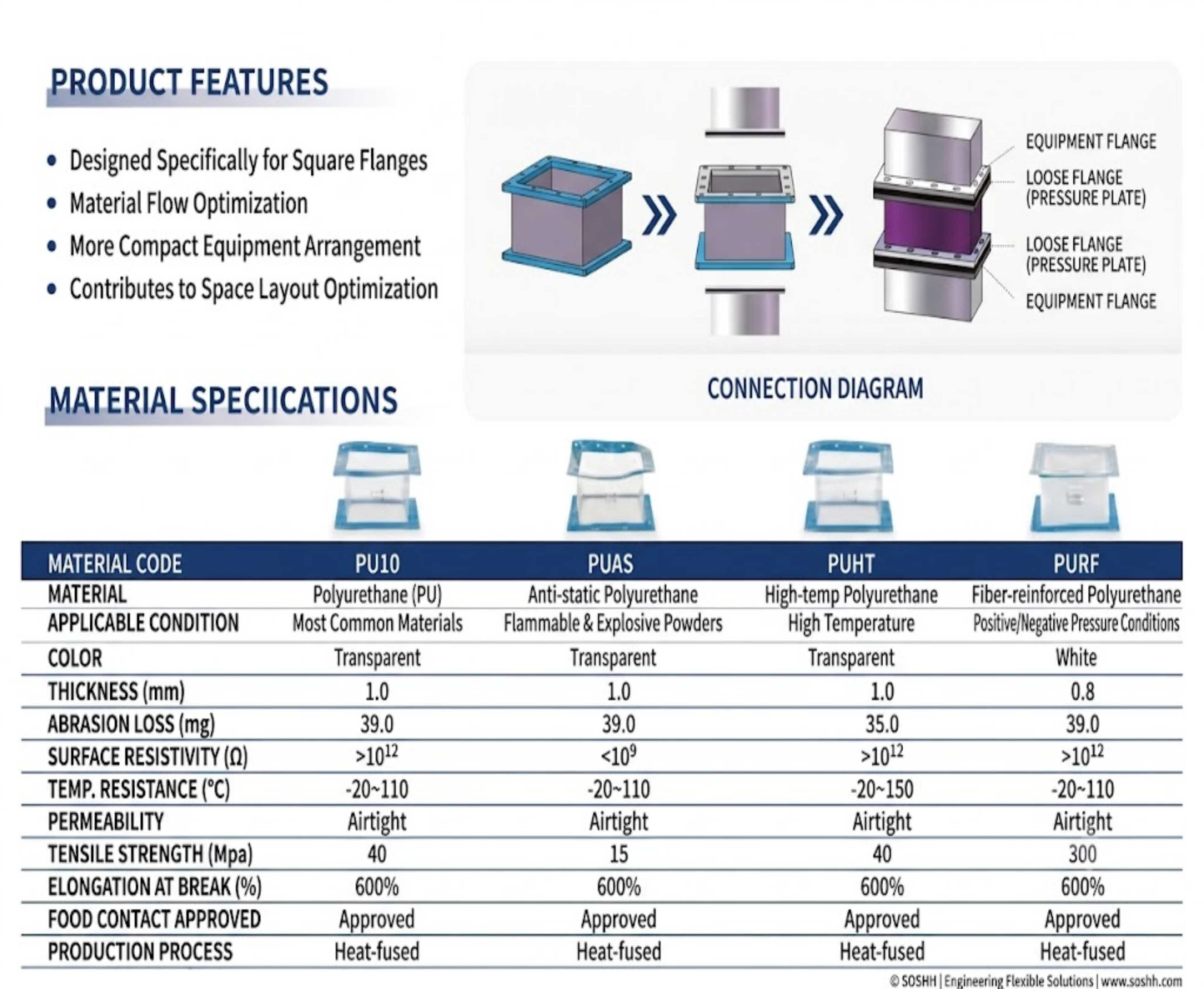

![SOSHH square and rectangular flange flexible polyurethane connector features, connection diagram, and material specification matrix]()
The SOSHH® FLR square flexible connectors and custom rectangular PU expansion joints are high-performance containment sleeves engineered specifically for square flange transitions, rectangular hopper outlets, vibrating feeder chutes, and bin dischargers. Fabricated from 100% virgin, FDA-compliant Polyurethane (Ether-grade TPU) using high-frequency seamless welding, these rectangular connectors eliminate corner stress tearing and dead-zone powder accumulation. Offering superior abrasion resistance, ATEX anti-static protection, and high-vacuum integrity, SOSHH® delivers factory-direct custom fabrication to any rectangular or square-to-round dimension with zero tooling fees.
1. Engineering Solutions for Square & Rectangular Powder Handling
Connecting non-circular equipment—such as rectangular vibratory screeners, bucket elevator discharge chutes, and square slide gates—presents unique mechanical challenges. Conventional rubber or stitched fabric square sleeves frequently fail due to high corner stress concentrations, material bridging in 90-degree edges, and severe flex fatigue during continuous oscillation.
Reinforced High-Frequency Welded Corner Architecture
Unlike glued or stitched sleeves that tear at the seams, SOSHH® FLR rectangular connectors utilize high-frequency precision thermal welding. This provides uniform tensile strength (up to 40 MPa) across both the flat walls and the formed corners, absorbing multi-axial vibration without edge splitting or micro-pinhole leaks.
Smooth Geometric Transition & Dead-Corner Elimination
The seamless, hydrophobic inner bore prevents hygroscopic and sticky bulk powders from bridging in the corners during gravity drop feeding. This ensures 100% clean product discharge and simplifies Clean-In-Place (CIP) washdown procedures.
2. Comprehensive Material Selection & Technical Performance Matrix
| Technical Parameter | Standard Food-Grade (PU10) | ATEX Anti-Static (PUAS) | High-Temperature (PUHT) | Fiber-Reinforced (PURF) |
|---|
| Primary Material | 100% Virgin Ether TPU | Carbon-Free Anti-Static TPU | Thermal-Stabilized TPU | Multi-Ply Fiber Reinforced TPU |
| Material Color | Crystal Clear / Transparent | Transparent / Optical Clear | Transparent / Light Amber | Clean Optical White |
| Wall Thickness | 1.0 mm (0.04") | 1.0 mm (0.04") | 1.0 mm (0.04") | 0.8 mm (0.03") |
| Operating Temperature | -20°C to +110°C (-4°F to +230°F) | -20°C to +110°C (-4°F to +230°F) | -20°C to +150°C (-4°F to +302°F) | -20°C to +110°C (-4°F to +230°F) |
| Surface Resistivity | > 10^12 Ω | < 10^9 Ω (Permanent ATEX) | > 10^12 Ω | > 10^12 Ω |
| Tensile Strength | 40 MPa | 15 MPa | 40 MPa | 300 MPa (Heavy Duty) |
| Elongation at Break | 600% | 600% | 600% | 600% |
| DIN Abrasion Loss | 39.0 mg | 39.0 mg | 35.0 mg | 39.0 mg |
| Permeability | 100% Airtight & Dust-Tight | 100% Airtight & Dust-Tight | 100% Airtight & Dust-Tight | 100% Airtight & Dust-Tight |
| Food Contact Standard | FDA 21 CFR 177.2600 / EU 10/2011 | FDA 21 CFR 177.2600 / EU 10/2011 | FDA 21 CFR 177.2600 / EU 10/2011 | FDA 21 CFR 177.2600 / EU 10/2011 |
| Recommended Use | General powder & gravity feed | Flammable / explosive dusts | Hot air drying & calcination | High positive / vacuum lines |
3. Performance Benchmark: SOSHH® FLR vs. Traditional Fabric & Rubber Connectors
| Performance Indicator | SOSHH® FLR Rectangular PU | Stitched Canvas / Fabric Sleeves | Molded Rubber Expansion Joints |
|---|
| Corner Leakage Risk | Zero (High-frequency seamless weld) | High (Dust escapes through needle holes) | Moderate (Corner fatigue cracking) |
| Internal Powder Trapping | Zero-crevice flush interior | Severe powder entrapment in seams | Material builds up in internal corrugations |
| Visual Monitoring | 100% Optical Clarity (PU10/PUAS) | Opaque (Requires line shutdown) | Opaque black |
| Abrasion Resistance | 3 to 5x higher than rubber | Low (Rapid wear from abrasive solids) | Standard |
| Custom Size Tooling Cost | Zero Tooling Fees (Any Aspect Ratio) | Low, but inconsistent manual stitching | Very expensive custom mold charges |
4. Key Application Scenarios & Equipment Integration
Vibrating Feeders & Rectangular Screeners
Accommodates continuous linear and multi-directional stroke vibrations between rectangular feed hoppers and vibrating conveyors without developing corner fatigue cracks.
Square-to-Round Transition Retrofits
Provides seamless transitional geometry between square bin dischargers/slide gates and circular pneumatic conveying lines, optimizing factory floor layout and eliminating expensive metal adapter fabrication.
Rotary Airlock Valves & Drop Chutes
Absorbs continuous equipment oscillation below rectangular rotary valves while maintaining a 100% dust-tight seal under positive or negative pressure.
Bulk Bag & FIBC Discharge Stations
Creates an airtight, hygienic dust containment sleeve between bulk container discharge trays and downstream process equipment.
5. 3-Step Standard Installation Guide for Square Flanges
- Step 01: Surface PreparationEnsure both equipment mating flanges are clean, flat, and free of burrs or old gasket debris.
- Step 02: Alignment & InsertionPosition the SOSHH® FLR square connector evenly over the upper and lower flanges. For loose flange clamping plates, align the bolt holes with the equipment pattern.
- Step 03: Uniform TorqueingFasten the backing clamping bars or loose flange plates, tightening bolts in a cross-pattern to distribute uniform compression along the perimeter without over-pinching the corners.
6. Factory-Direct Customization: Zero Tooling Fees & Free 3D CAD
As a direct engineering manufacturer of flexible connection systems, SOSHH® eliminates catalog dimension constraints:
- Custom Aspect Ratios: Any square, rectangular, or irregular rectangular dimensions (e.g., 150x150mm up to 2000x2000mm) manufactured to millimeter precision.
- Square-to-Round Transitions: Custom formed conical or pyramid transitions engineered directly to your mechanical layout.
- Zero Tooling Fees: No mold, die, or setup charges for non-standard lengths, wall thicknesses, or flange bolt hole configurations.
- 24-Hour Engineering CAD Verification: Our technical team provides complimentary 2D PDF approval drawings and 3D CAD models (STEP/IGES) within 24 hours.
7. Frequently Asked Questions (FAQ)
Q1: Can SOSHH® supply custom square connectors as a direct replacement for legacy equipment flanges?
Yes. Our factory specializes in precision custom manufacturing. We build drop-in replacements for standard equipment flanges, non-standard rectangular chutes, and transitional square-to-round gaps with fast international lead times and zero mold tooling costs.
Q2: How do I select the right material for explosive organic dusts (sugar, starch, flour)?
For ATEX explosive dust environments (Zone 20/21/22), select our PUAS (Anti-Static Polyurethane) material. It guarantees a permanent surface resistivity below 10^9 Ω, safely dissipating static charges and preventing combustible dust ignition.
8. Request a 24-Hour Custom Engineering Proposal
- Technical Desk: Email your flange dimensions (Length × Width), installation height (L), operating temperature, and powder media details to amin@soshh.com.
- Global Shipping: Fast air express delivery to North America, Europe, Asia-Pacific, and the Middle East.
(Trademark Disclaimer: SOSHH® is an independent registered brand of Zhejiang Jingzhen Environmental Protection Technology Co., Ltd. References to standard flange patterns or legacy equipment models are strictly for dimensional cross-reference and replacement compatibility.)
