SOSHH® Anti-Static Breathable Woven Polyester Snap-In Connector (SF-PE06-AS)
![SOSHH Anti-Static Breathable Woven Polyester Snap-In Flexible Connector SF-PE06-AS]()
![SOSHH Anti-Static Breathable Woven Polyester Snap-In Flexible Connector SF-PE06-AS]()
1. Why Switch to SOSHH Breathable Snap-In Fabric Sleeves?
- Continuous Vessel Pressure Relief: Engineered air permeability (10 to 25 L/dm2/min @200Pa) dissipates positive air surges during high-rate silo drops, loss-in-weight filling, and pneumatic conveying without dust blowouts.
- Certified ATEX Anti-Static Protection: The SF-PE06-AS grade incorporates conductive carbon grid yarns (surface resistance 10^6 to 10^8 Ohms) to ground electrostatic charges generated by dry powder friction, mitigating secondary dust explosion risks.
- 30-Second Tool-Free Snap-Band Assembly: Internal spring-steel snap rings seat directly into standard grooved spigots. Eliminates hose clamps that pinch, tear fabric cuffs, or create internal powder accumulation dead zones.
- Non-Shedding Sanitary Construction: Continuous filament yarn construction certified to FDA 21 CFR 177.1630 and EU 10/2011 prevents thread fraying, fiber shedding, and product batch contamination.
2. Breathable Media Selection Matrix
| Media Grade | Material Base & Weave Structure | Thickness | Continuous Operating Temp | Air Permeability (@200Pa) | Surface Resistance | OEM Cross-Reference / Compatibility |
|---|

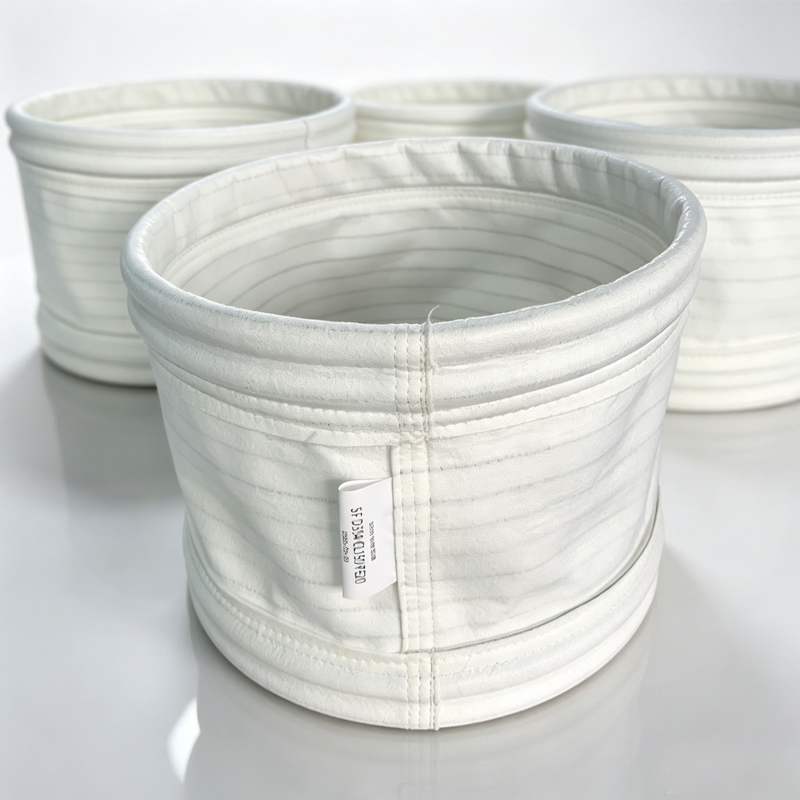

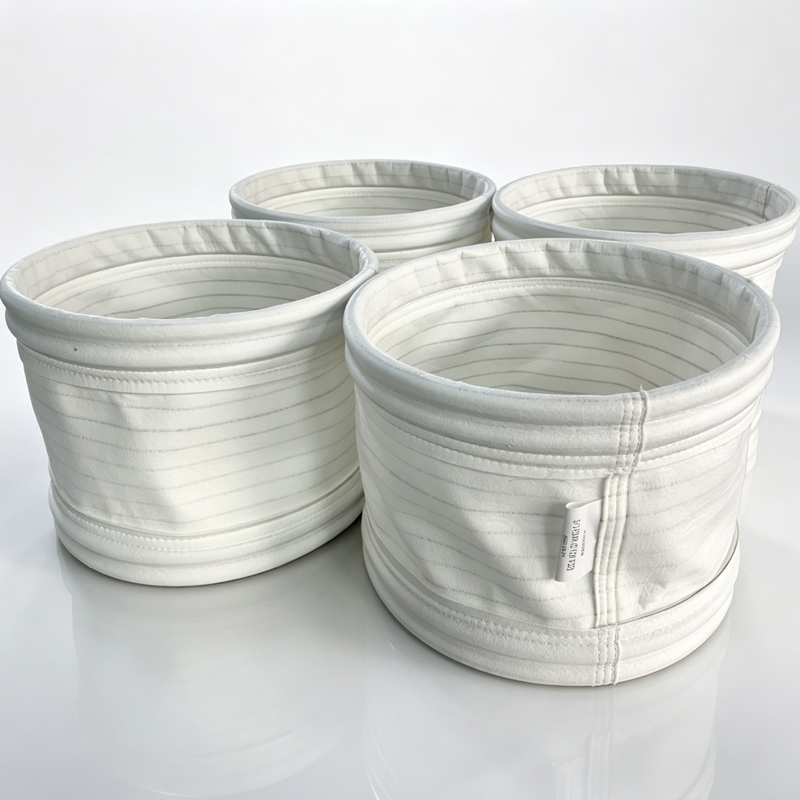

| SF-PE06-AS (Standard) | 100% Polyester Filament + Anti-Static Carbon Grid | 0.60 mm | -20 deg C to +130 deg C (Peak 150 deg C) | 10 - 25 L/dm2/min | 10^6 - 10^8 Ohms (ATEX Anti-Static) | Drop-in replacement for BFM LM4 |
| SF-PP06 | 100% Polypropylene (PP) Plain Weave Fabric | 0.60 mm | -20 deg C to +110 deg C | High Permeability | Over 10^12 Ohms (Insulative) | Acid/alkali resistant powder venting |
| SF-PE20 | Polyester Needle Felt + Micro-Porous PTFE Membrane | 2.00 mm | -20 deg C to +150 deg C | Controlled Micro-Permeability | Over 10^12 Ohms (Insulative) | High dust-load bin vents & abrasive fines |

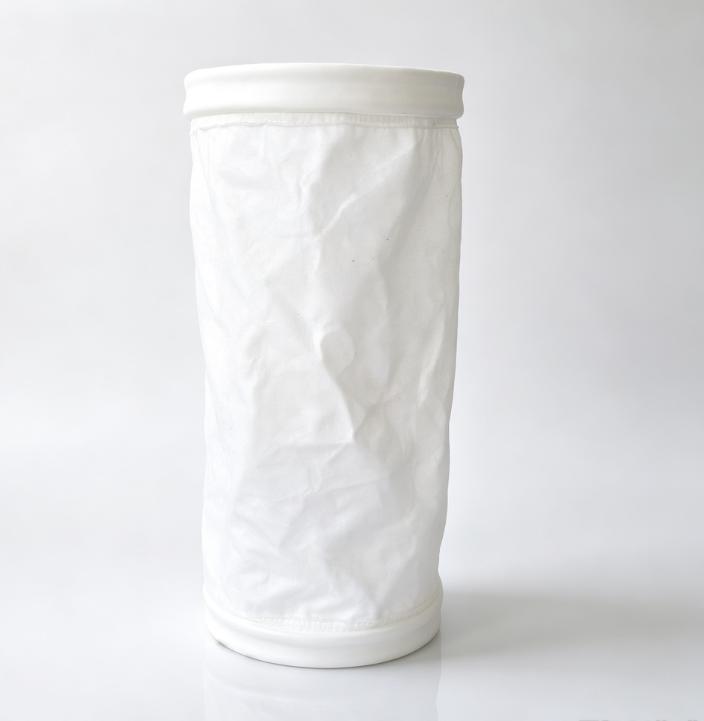

| SF-PTFE | 100% Woven Pure PTFE Filament Fabric | 0.50 mm | -70 deg C to +260 deg C | 5 - 20 L/dm2/min | Universal Inertness (pH 0-14) | Drop-in replacement for BFM FM1 / Teflex |
3. Technical Specifications: SF-PE06-AS Woven Polyester
| Technical Parameter | Test Standard | Engineering Value |
|---|
| Material Base | Polymer Analysis | 100% Food-Grade Virgin Polyester Filament (PET) |
| Weave Pattern | Visual / DIN | High-Density Plain Weave with Static Conductive Grid |
| Fabric Thickness | ISO 5084 | 0.55 mm - 0.70 mm (Nominal 0.60 mm) |
| Areal Fabric Weight | ISO 3801 | 350 - 420 g/m2 |
| Air Permeability | DIN EN ISO 9237 | 10 - 25 L/dm2/min (@200Pa) |
| Warp Tensile Strength | ISO 13934-1 | >= 1600 N / 5 cm |
| Weft Tensile Strength | ISO 13934-1 | >= 1300 N / 5 cm |
| Continuous Temp Range | Thermal Test | -20 deg C to +130 deg C (-4 deg F to +266 deg F) |
| Short-Term Peak Temp | Thermal Resistance | +150 deg C (+302 deg F) |
| Surface Resistance | ATEX Standard | 10^6 - 10^8 Ohms (Dissipative / Anti-Static) |
| Food Contact Compliance | US FDA / EU | FDA 21 CFR 177.1630 / EU 10/2011 Compliant |
| Sealing System | Snap-Band | Dual internal tempered spring steel rings |
4. Standard Dimensions & Sizing Options
| Matching Spigot Diameter (OD) | Standard Sleeve Lengths | Mechanical Customization |
|---|
| Dia. 100 mm (4 in) | 100 mm / 150 mm / 200 mm / 300 mm | Custom heights up to 1500 mm |
| Dia. 125 mm (5 in) | 100 mm / 150 mm / 200 mm / 300 mm | External anti-abrasion rings |
| Dia. 150 mm (6 in) | 150 mm / 200 mm / 300 mm / 400 mm | Conical transition cuffs (Offset) |
| Dia. 200 mm (8 in) | 150 mm / 200 mm / 300 mm / 500 mm | Integrated grounding wire tabs |
| Dia. 250 mm (10 in) | 200 mm / 300 mm / 500 mm | Reinforced seams for vibrating sifters |
| Dia. 300 mm (12 in) | 200 mm / 300 mm / 500 mm | External vacuum support rings |
| Dia. 350 mm (14 in) | 200 mm / 300 mm / 500 mm | High-temperature Kevlar stitching |
(Note: 100% geometrically compatible with standard grooved spigots and modular sanitary tubing lines.)
5. Typical Industrial Applications
- Vibrating Screeners & Sifters: Accommodates rapid continuous shaking without cuff tear while venting process air.
- Silo & Surge Bin Inlets: Equalizes positive displacement air when filling silos with flour, starch, sugar, or grain powders.
- Loss-in-Weight Batch Feeders: Flexible woven textile creates zero mechanical deadweight, preventing measurement drift on sensitive load cells.
- Fluid Bed Exhaust & Cyclones: Acts as a secondary particulate barrier while exhausting hot drying air.
6. Frequently Asked Questions (FAQ)
- Q1: Can the SOSHH SF-PE06-AS connector directly replace existing BFM LM4 sleeves?A: Yes. The SF-PE06-AS uses the exact snap-band profile to fit standard grooved spigots. It provides matching air permeability (10 to 25 L/dm2/min), an integrated static dissipation grid, and FDA compliance, functioning as a seamless drop-in alternative without duct modifications.
- Q2: When should I choose SF-PE20 needle felt over woven polyester?A: Select SF-PE20 (2.0 mm needle felt with PTFE membrane) when handling highly abrasive mineral powders or sub-micron particulate where maximum filtration efficiency and elevated burst strength are required.
- Q3: Can these breathable connectors be washed?A: Yes. Sleeves can be cleaned using compressed air dry-brushing, or washed with warm water and mild neutral detergent. Ensure the fabric is completely dry before reinstalling into powder contact lines.
7. Request CAD Drawings & Material Swatches
Need custom spigot diameter verification or a material test sample? Send your line specifications to our process team at amin@soshh.com for same-day technical consultation and expedited quote proposals.
*Disclaimer: BFM is a registered trademark of BFM Global Limited. SOSHH is an independent manufacturer of high-performance replacement sleeves and is not affiliated with, endorsed by, or sponsored by BFM Global Limited.
