Product Overview & Sanitary Snap-In Performance
The SOSHH® SF Internal Snap-On Flexible Connector is a premium sanitary flexible sleeve designed for airtight, pressure-resistant, and dust-tight pneumatic powder handling systems.
Engineered with dual integrated spring steel bands covered in high-durability elastomeric collars, this connector snaps effortlessly into standard internal pipeline grooves without requiring tools, clamps, or external hardware. The internal snap-locking mechanism creates a completely 100% flush inner wall (Zero Dead Zone), eliminating material build-up, powder bridging, and cross-contamination in strict pharmaceutical and food processing lines.
![]()
![SOSHH® ATEX anti-static and high temperature PU sleeve material specification matrix chart]()
![]()
![SOSHH® food-grade transparent PU flexible connector sleeve with stainless steel throat clamps]()
Key Engineering Features & Interchangeable Design
• Standard Spigot & Jacob Pipe Compatibility: Seamlessly interchangeable with industry-standard quick-connect snap-in fittings and Jacob tubing spigots. Allows instant field replacement without line modification or piping re-engineering.
- Tool-Free 10-Second Installation: Field operators can snap the internal spring band into place by hand within seconds, drastically reducing plant downtime during Clean-In-Place (CIP) washing or routine maintenance shifts.
- ATEX Zone 20/21/22 Explosion Protection: Optional certified anti-static TPU formulation with surface resistance under "10^6 Ω", safely dissipating electrostatic charges generated during high-speed conveying of explosive combustible dusts (sugar, starch, flour, and lithium battery powders).
- High Tear Strength & Dynamic Flexibility: Formulated from high-density virgin polyurethane (PU/TPU), offering up to 600% elongation at break to absorb continuous multi-axis vibration on sifters, screeners, and active weighing hoppers.

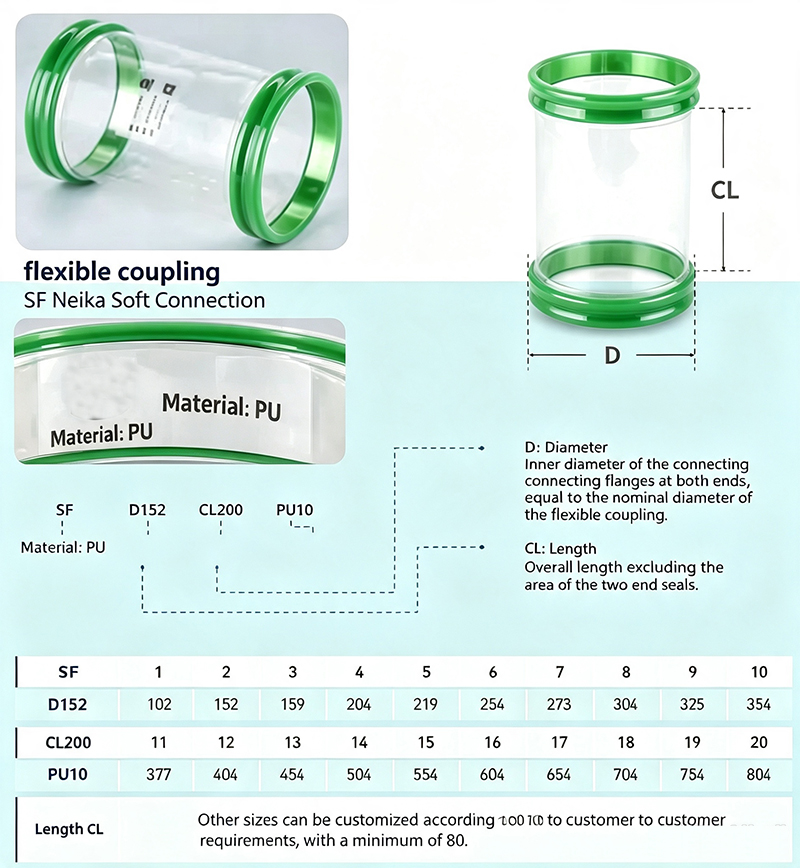

![SF snap-in flexible connector structure diagram and standard dimensions table]()
Material Specifications & Sizing Matrix
| Technical Parameter | Standard Heavy-Duty PU | Ultra-Flex Load Cell PU | ATEX Anti-Static PU | High-Temp Process PU |
| Material Formulation | 100% Virgin Food PU | Ultra-Flexible Pure PU | Surface Conductive TPU | Modified High-Temp PU |
| Wall Thickness | 1.0 mm Heavy Duty | 0.5 mm Low Torque | 1.0 mm Antistatic | 1.0 mm Heat Resistant |
| Surface Resistance | 10^12 Ω | 10^12 Ω | < 10^6 Ω (ATEX Rated) | 10^12 Ω |
| Operating Temp Range | -20°C to +110°C | -20°C to +110°C | -20°C to +110°C | -20°C to +150°C |
| Tensile / Elongation | 40 MPa / 600% | 40 MPa / 600% | 15 MPa / 600% | 40 MPa / 600% |
| Standard Diameters (D) | DN102, DN152, DN204, DN254, DN304 up to DN804 (Custom sizes available) | | | |
| Standard Lengths (CL) | 100 mm, 150 mm, 200 mm, 300 mm, 500 mm up to 1000 mm (Min custom 80 mm) | |
📐Need Custom Spigot Dimensions or **Industry** Cross-Reference Chart?
Download our complete official document: "SOSHH® SF Internal Snap-On Sleeves Engineering Catalog" to access full spigot groove matching tables and chemical resistance profiles.
Primary Applications & Industrial Equipment
- Vibratory Sifters & Tumbler Screeners: Zero-dust flexible transitions for high-frequency vibration machinery (Rotex, Sweco, Russell Finex style sifters).
- Bulk Bag (FIBC) Unloading & Filling Stations: Dust-tight sealing sleeves preventing toxic or fine powder escape during bag discharge.
- Precision Weighing Hoppers & Load Cells: Ultra-flexible 0.5mm PU sleeves providing zero vertical stiffness or force interference for exact batching scales.
- Pneumatic Conveying & Rotary Valves: Pressure-rated sanitary connections for positive and negative pressure dense-phase powder transfer lines.
![Food grade snap-on flexible PU connector installed on pharmaceutical powder filling machine]()
Typical Applications
Vibratory Sifter & Tumbler Screener Sleeves (Zero-dust transitions for high-frequency vibration equipment).
Bulk Bag & FIBC Filling/Emptying Stations (Handling hazardous or explosive powders safely).Weighing Hoppers & Load Cell Isolation (0.5mm high-flexibility sleeves with zero vertical force interference).Jacob Tubing Line Retrofits & Upgrades (Seamlessly compatible with existing industrial spigots).Quick-Connect Compatible: Superior durability, faster delivery.
Quality Assurance & Safety Compliance
- Certified Food Contact Safety: Fully compliant with "FDA 21 CFR 177.2600" and "EC 1935/2004 & EU 10/2011" international food and pharmaceutical hygiene regulations.
- Third-Party Laboratory Verified: Tested and certified by "SGS, CNAS, ilac-MRA, and MA" accredited safety testing laboratories.
- Heavy-Duty Pressure & Vacuum Rating: Airtight sealed construction tested to withstand continuous pneumatic pressure surges and vacuum cycles without snap-ring pop-out.
Frequently Asked Questions
Q: Are SOSHH® SF internal snap-on connectors directly compatible with existing standard quick-connect spigots?
A: Yes. SOSHH® SF series sleeves are engineered with exact matching spring-ring profile dimensions, allowing them to snap directly into standard quick-connect spigots and Jacob tubing grooves without replacing your existing steel pipework.
Q: How does the internal snap-in design prevent dust accumulation compared to traditional hose clamp sleeves?
A: Traditional hose clamps create a lip inside the pipe where powders settle, creating bacteria growth zones. The SOSHH® internal snap-in spring band seats into a recessed outer groove, creating a completely smooth, flush inner pipe profile (Zero Dead Zone) ideal for CIP cleaning.
Q: Which sleeve thickness should I select for weighing load cell connections?
A: For active weighing hoppers and loss-in-weight feeders, we recommend our "0.5mm Ultra-Flex PU sleeve". It provides optimal dust containment while eliminating vertical stiffness and parasitic forces on weight sensors.
Why Partner with SOSHH® Industrial Engineering?
- 10+ Years Manufacturing Expertise: Over 1,000+ successful installations across food, pharmaceutical, and battery chemical industries.
- Fast Custom Prototyping: Custom diameter and non-standard length prototypes dispatched within 48 hours.
- On-Time Delivery Guarantee: Reliable global shipping ensuring 99% on-time project completion.
![]()
![Certified quality assurance: SGS, MA, ilac-MRA, and CNAS laboratory testing reports for sanitary flexible connectors]()
Certified Quality: Our products are fully tested and compliant with SGS, CNAS, ilac-MRA, and MA laboratory safety standards.
