Why Engineers are Upgrading to Cross-Brand Compatible Snap-in PU Connectors

Why Engineers are Upgrading to Cross-Brand Compatible Snap-in PU Connectors

In modern powder handling and bulk solids processing, preventing dust leakage is paramount for maintenance engineers. For years, premium brand quick-connect systems like BFM fittings have been the industry standard for vibrating sifters, hoppers, and pneumatic conveying lines. However, rising procurement costs, rigid standard sizing, and extended lead times are driving global factory managers to search for a dependable, high-quality alternative to BFM fitting.

If you are looking to optimize your production line's uptime without compromising on hygiene or safety, our JingZheng (SOSHH) snap-in flexible connector technology offers a perfectly compatible engineering solution.

Technical Specifications: How SOSHH Compares to Seeflex Standards

When replacing international brands, engineering standards cannot be compromised. Our polyurethane connectors are engineered to meet and exceed the strictest pharmaceutical, chemical, and food-grade regulations:

• Food Contact Certified: Fully FDA compliant and EC 1935/2004 certified, making it safe for milk powder, sugar, and pharmaceutical ingredient transfer.
• Explosion Protection (ATEX Rated): For explosive dust environments like flour or chemical powder handling, our PUAS (Anti-static Polyurethane) grade safely eliminates static buildup.
• Superior Abrasion Resistance: With a material thickness of 1.0mm, it achieves an ultra-low material wear rate of 39.0mg, heavily outlasting traditional rubber sleeves.

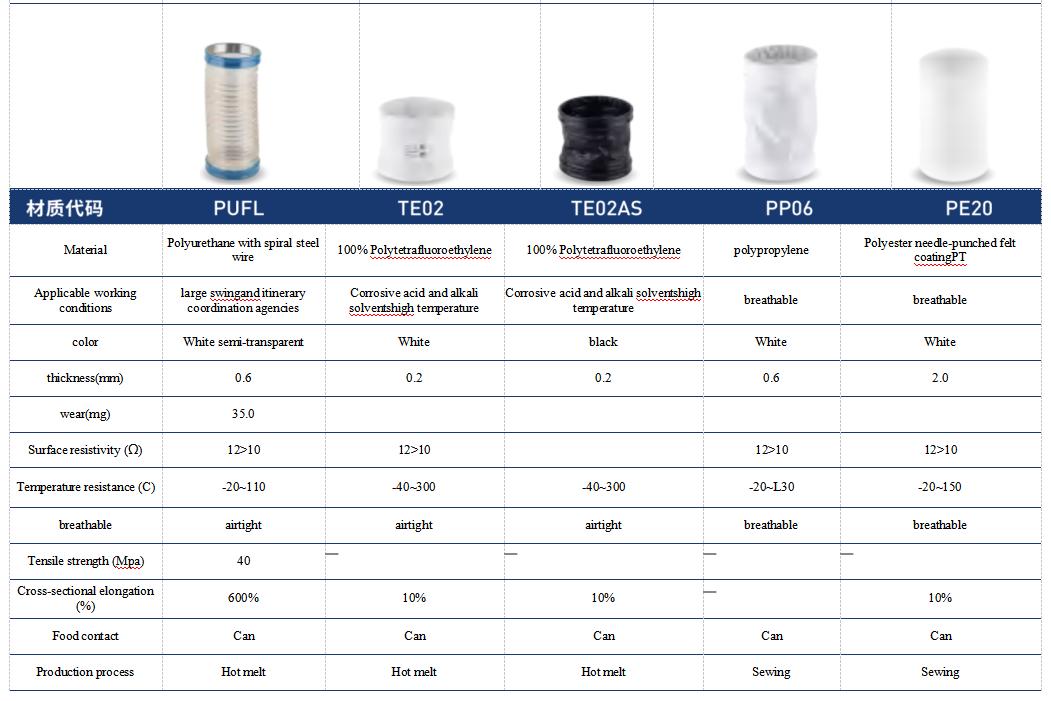

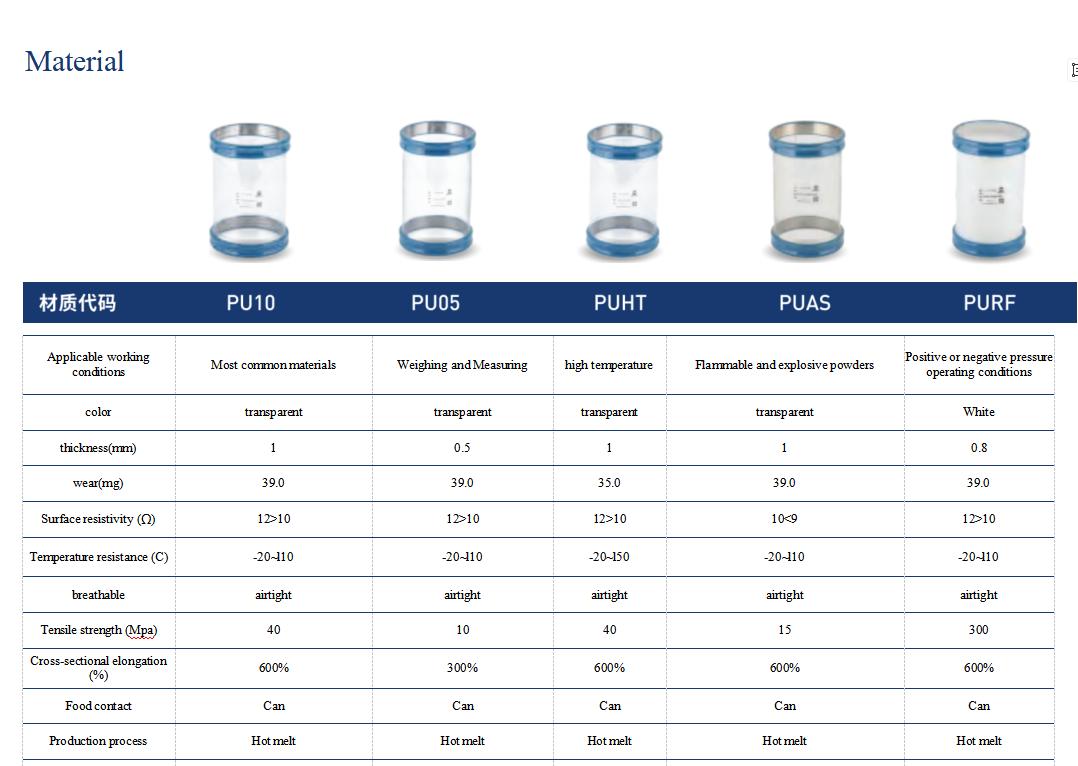

Below is the technical data sheet for our standard and anti-static materials:

(Note: Data is based on laboratory testing for SOSHH flexible connectors.)

Core Engineering Features of the SOSHH Snap-on Connection

1. 30-Second Tool-Free Installation

Traditional sleeve replacements wrapped with hose clamps are notorious for powder leakage and tedious maintenance. Our premium SF Spigot (steel welding boss) and matching PU sleeves utilize an advanced internal snap-in design. The top and bottom rims of the sleeve are embedded with precise spring steel bands and high-grade seals. Operators can simply press the flexible connection inward, snap it into the spigot groove, and allow it to spring back into place. This achieves a 100 percent dust-tight seal in under 30 seconds—completely tool-free.

2. Fully Customizable Dimensions to Retrofit Existing Ducting

One of the biggest bottlenecks with global brands is their rigid standard size matrix. If your existing spigots or piping require a non-standard diameter or custom length (CL) to fit a specific vacuum or pressure application, sourcing a replacement can take months.

Our manufacturing facility specializes in custom-made B2B solutions. We provide tailor-made retrofits with ultra-fast lead times:

• Standard Diameters: Ranging from DN102 to DN804 to match existing pipelines.
• Spigot Heights: Custom heights of 50mm or 90mm available in 304L or 316L stainless steel.
• Special Configurations: Fully customizable with offset, tapered reducers, or integrated metal and plastic support rings for vacuum applications.

Standard Size & Dimension Chart

• Wall Thickness (T): 2.0 mm
• Available Total Heights (h): 50 mm (Compact) / 90 mm (Extended - allows more room for tail cutting)
• Inner Diameter (d): Regulated precisely as D - 4mm.

(Note: Custom non-standard outer diameters, matching flanges, and free STEP/DXF 3D model verification are available upon request to assist your plant design team.)

Frequently Asked Questions (FAQ) for Procurement Engineers

Q1: Is the SOSHH snap-in sleeve a direct replacement for my existing BFM spigots?

Yes. Our SF inner snap-in flexible connectors are engineered to be cross-brand compatible with standard quick-connect spigot grooves. You can drop our sleeves into your existing setup without changing your current piping hardware.

Q2: How does the PUAS anti-static connector perform in negative pressure conditions?

Our anti-static grade (PUAS) retains full structural integrity under standard powder-conveying positive pressures. However, for high-vacuum or heavy negative pressure conditions, we highly recommend upgrading to our PURF (Fiber Reinforced Polyurethane) or incorporating stainless steel support rings to prevent the sleeve from collapsing.

Q3: Can I get custom lengths (CL) for non-standard equipment distances?

Absolutely. Unlike other suppliers who only offer fixed sizes, we can customize any length shorter or longer than standard requirements, with a minimum CL of 80mm for snap-in sleeves.

Conclusion: Lower Your Total Cost of Ownership (TCO)

Switching to a high-quality alternative to BFM fitting does not mean sacrificing performance; it means gaining supply chain flexibility, securing custom sizes, and dramatically reducing maintenance overhead. Contact our application engineers today to get a quick quote and a custom drawing for your powder handling system.
