The Ultimate Guide to JingZheng Snap-In Flexible Connectors for Powder Handling
1. Why Upgrade to JingZheng Snap-In Connectors?
Our snap-in flexible connectors are engineered to out-perform traditional canvas or silicone hoses secured by external clamps.
- 100% Dust & Leak Proof: The built-in stainless steel spring ring locks precisely into the custom spigot's internal groove. The seal tightens as internal system pressure increases.
- Zero Sanitary Dead Zones: The crevice-free internal transition prevents powder retention and batch cross-contamination, ensuring strict hygiene.
- Tool-Free CIP/SIP: Operators can install and remove the connector in seconds without screwdrivers or wrenches, drastically reducing equipment downtime.
- Superior Load Cell Protection: The highly flexible PU material isolates vibrations between equipment, safeguarding sensitive weighing modules.
2. Core Technical Specifications
Designed for seamless integration into R&D blueprints and rapid procurement:
- Material Compliance: High-purity Polyether TPU, FDA 21 CFR 177.1680 / 177.2600 and GMP compliant.
- Hardware: Built-in 304 / 316L spring stainless steel support ring.
- Temperature Resistance: -20°C to +85°C (briefly up to 100°C).
- Operating Pressure: Excellent resistance to both positive and vacuum pressure; suitable for pneumatic conveying.
- Sizes: Standard diameters (DN) from 100mm to 1000mm+. Lengths can be custom-tailored to specific installation gaps.
3. Quick-Fit Installation Guide
Proper installation ensures maximum sealing performance.
- Weld Custom Spigots: Weld JingZheng's custom grooved stainless steel spigots to the upper and lower equipment ports. Ensure welds are ground and polished (Ra < 0.8μm).

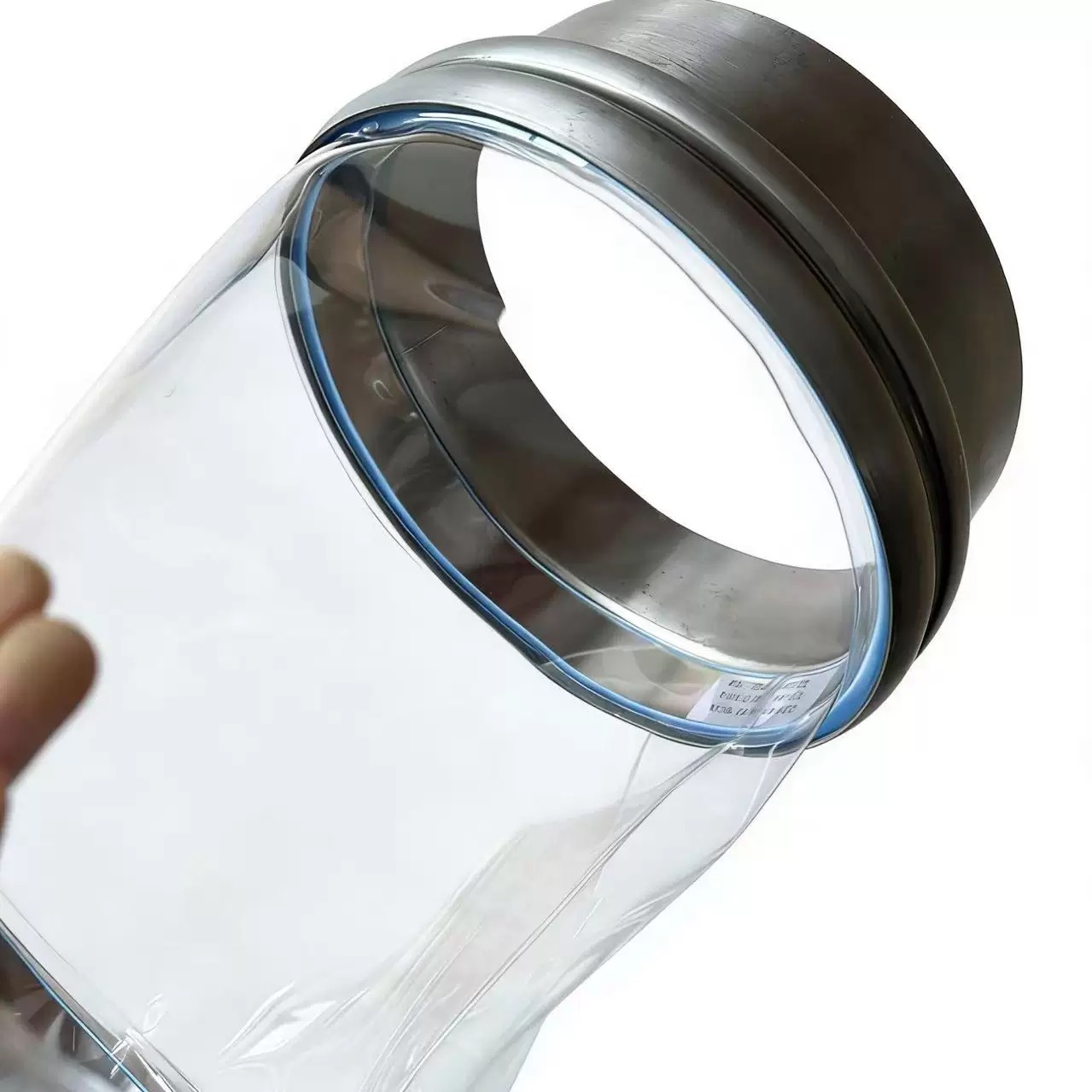

- Fold and Insert: Pinch the built-in steel ring into a "kidney" or "figure-8" shape. Insert it into the upper spigot.
- Snap to Lock: Release the ring. It will instantly snap outward into the internal groove. Repeat for the bottom port.
| Technical Parameter | JingZheng Snap-In PU Connector | Traditional Hose-Clamped Connector |
|---|---|---|
| Sealing Mechanism | Internal groove locking; seal tightens as system pressure increases. | External mechanical compression; prone to loosening over time. |
| Hygiene & Dead Zones | Seamless inner bore; Zero dead zones or powder retention. | Crevices exist between the hose and pipe; high risk of powder buildup. |
| Installation / Removal Time | < 5 Seconds per end. | 5 – 15 Minutes per end. |
| Tool Requirement | 100% Tool-Free (Manual snap-in). | Requires screwdrivers, nut drivers, or torque wrenches. |
| Load Cell Protection | Exceptional vibration isolation; highly flexible. | Clamp rigidity can transfer vibrations, skewing weighing data. |
| Durability at Connection | High; spring ring distributes tension evenly. | Low; clamps often cut into or tear the silicone/canvas over time. |
| CIP/SIP Efficiency | Drastically reduces downtime; ideal for frequent washdowns. | Labor-intensive; requires complete disassembly of clamps. |
4. Frequently Asked Questions (FAQ)

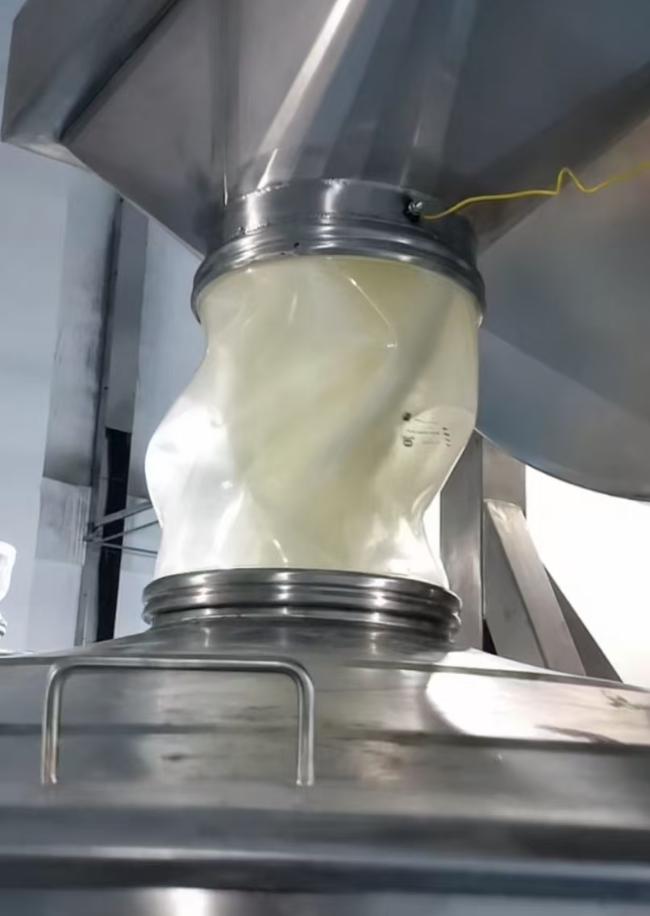

Q1: Can the connector handle misaligned or offset equipment?A: Yes. As demonstrated in our field installations, JingZheng PU connectors possess exceptional flexibility. They easily accommodate eccentric (offset) or torsional alignments without the snap rings dislodging or compromising the airtight seal.
Q2: Are these connectors suitable for ATEX explosion-hazard zones?A: Yes. We offer customized anti-static (conductive) PU materials that comply with ATEX safety standards for combustible powder handling environments.
Q3: Do I need special tools for maintenance?A: No. The snap-in design is entirely tool-free. It relies on the tension of the internal spring ring, allowing for instant manual removal and reinstallation during cleaning cycles.
Q4: Can you manufacture custom lengths?A: Absolutely. While we stock standard sizes (e.g., DN150, DN200), we specialize in custom manufacturing to precisely match the specific installation gap of your existing production line.
Upgrade your bulk material handling efficiency today. Whether you are sourcing replacements for existing equipment or specifying components for new R&D projects, visit soshh.com to contact the JingZheng engineering team for customized solutions and CAD support.
