2026 HSE Guide: Visual Chemochromic Hydrogen Tape vs. Electronic Sensors in High-Pressure Piping Safety

Hydrogen gas (H₂) is rapidly expanding across global energy corridors—from Hydrogen Refueling Stations (HRS) in North America and Europe to massive green hydrogen electrolyzer plants in the Middle East. However, hydrogen's ultra-small molecular size, low ignition energy (0.02 mJ), and wide flammability limit (4% to 75% in air) make fugitive micro-leak detection a critical safety mandate for plant operations.

While electronic sniffer sensors are standard across process plants, field experience reveals significant operational blind spots. This article evaluates the technical kinetics, total cost of ownership (TCO), and sourcing economics of Visual Chemochromic Hydrogen Leak Detection Tapes as a zero-power Layer of Protection (LOPA).

1. The Outdoor Blind Spot: Why Electronic Point Sensors Fail in the Field

Plant managers and HSE officers managing high-pressure hydrogen infrastructure face two persistent challenges with traditional electronic point detectors:

1. Outdoor Wind Dissipation: In outdoor environments such as refueling dispenser islands or open-air tube trailer manifolds, ambient wind currents rapidly disperse leaking H₂ gas before it reaches fixed point sensors. This creates high-risk "blind spots" where micro-leaks can persist unnoticed.
2. Elevated OPEX & Calibration Drift: Electronic sensors suffer from sensor drift and cross-sensitivity. They require mandatory recalibration every 6 to 12 months, along with expensive flameproof cabling and PLC I/O channel allocation.

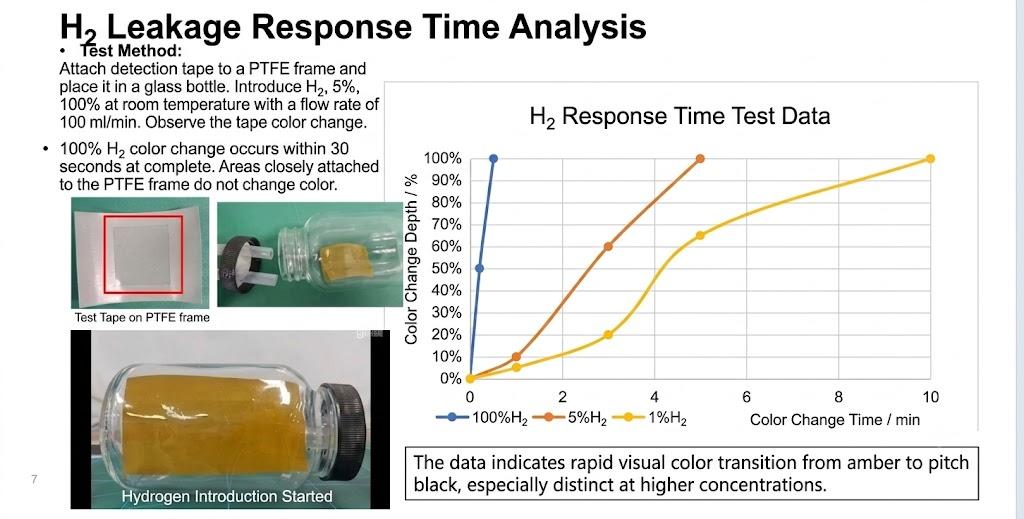

The Visual Chemochromic Solution: A self-adhesive indicator tape wraps directly over the flange interface or threaded connection. By forming a boundary seal at the leak origin, it captures escaping H₂ gas and provides an immediate, optical color change from Amber to Pitch Black within seconds—completely unaffected by ambient wind.

2. Engineering Mechanism: Reversible vs. Irreversible Visual Indicators

Visual hydrogen tapes utilize a chemochromic transition layer coated on high-performance backing films. When choosing between indicator models for facility design, engineering teams must evaluate their specific operational use cases:

Technical Insight: For permanent industrial piping, irreversible models are preferred by HSE auditors because they retain a permanent black record of intermittent or transient micro-leaks that occur during pressure spikes or thermal cycling.

3. Total Cost of Ownership (TCO) & OEM Sourcing Analysis

Procurement teams evaluating gas safety budgets must look beyond initial unit costs. Below is a 3-year TCO benchmark comparing a 50-flange piping manifold setup using electronic point sensors versus a passive visual tape installation:

The Sourcing Advantage: Direct Factory OEM vs. International Retail Markup

Historically, European and North American EPCs relied on Japanese brand-name suppliers (such as Nitto Denko) for chemochromic safety tapes, often paying $150 to $250+ per roll with 8-to-12-week lead times.

By partnering directly with specialized Chinese OEM coating manufacturers like SOSHH® (Zhejiang Jingzhen Environmental Protection Technology Co., Ltd.), international buyers achieve:

• Cost Savings: Direct factory-direct pricing ($28–$65/roll depending on volume), yielding a 50% to 70% reduction in procurement spend.
• Rapid Dispatch: Standard 25mm x 10m rolls shipped via global express within 5 business days.
• Full Compliance: Form-fit-function equivalents featuring ATEX Zone 1/2 suitability, ISO 19880-1 alignment, and FDA 21 CFR compliance.

4. Field Installation Best Practices for Piping Engineers

To ensure zero false positives and optimal adhesion under extreme outdoor weathering:

1. Clean the Substrate: Ensure SUS304/SUS316L stainless steel pipes or carbon steel flanges are thoroughly degreased using isopropyl alcohol or industrial solvent wipes.

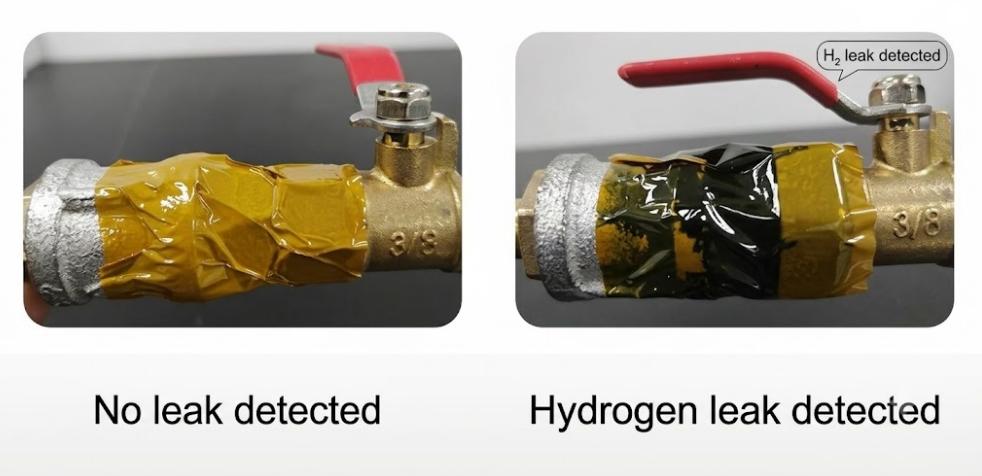

2. 50% Overlap Wrapping: Apply the self-adhesive polyimide tape around the flange joint or valve body with a 50% spiral overlap, ensuring complete coverage over gasket edges.
3. Routine Inspection Protocols: Incorporate tape color checks into daily operator walk-throughs. Any black visual indicator signals an immediate maintenance ticket for flange re-torquing.

Conclusion & Next Steps for Procurement Officers

Visual chemochromic hydrogen detection tape provides an essential, low-CAPEX "Layer of Protection" that bridges the gap left by electronic point sensors in outdoor and high-vibration hydrogen infrastructure.

For complete engineering data sheets, dimensional drawings, or to request a laboratory testing sample kit:

Contact Us & Request Free Sample Kit

Visual chemochromic hydrogen detection tape provides an essential, low-CAPEX "Layer of Protection" that bridges the gap left by electronic point sensors in outdoor and high-vibration hydrogen infrastructure.

To request a laboratory testing sample kit, custom OEM dimensions, or a formal RFQ for your project, contact the SOSHH® HSE engineering team directly:

• Manufacturer: Zhejiang Jingzhen Environmental Protection Technology Co., Ltd. (SOSHH®)
• Official Website: www.soshh.com
• Direct Email: amin@soshh.com
• Global Express Sample Dispatch: 1x Roll (25mm x 5m) sample packs available for laboratory testing ($50 flat-rate global express delivery, fully deductible from bulk orders)
• Custom OEM Capabilities: Tailored tape widths, roll lengths, and private-label packaging for EPC contractors and equipment manufacturers
