SF Internal Snap-On Flexible Connectors: The Complete Engineering & Procurement Guide for Zero-Leak Powder Handling
SF Internal Snap-On Flexible Connectors: The Complete Engineering & Procurement Guide for Zero-Leak Powder Handling
The Engineering Challenge: Why Traditional Hose Clamps Fail in Powder Processing
In high-purity powder handling—such as pharmaceutical APIs, food ingredients, and battery material manufacturing (LiPF6 / LiBF4)—traditional hose-clamped flexible sleeves present recurring operational bottlenecks:
- Product Accumulation & Dead Zones: External clamps create internal fabric folds where fine powders settle, leading to cross-contamination between batches.
- Chronic Dust Leaks: Thermal expansion and mechanical vibration cause worm-gear clamps to loosen, releasing airborne dust into cleanroom environments.
- Extended Maintenance Downtime: Replacing a single clamped sleeve requires tools and 10–15 minutes of manual labor, lowering overall equipment effectiveness (OEE).
- Uneven Sealing Pressure: Overtightening tears the PU sleeve, while undertightening causes powder blowout under positive pressure spikes.
The Solution: SF Internal Snap-On Sealing Technology

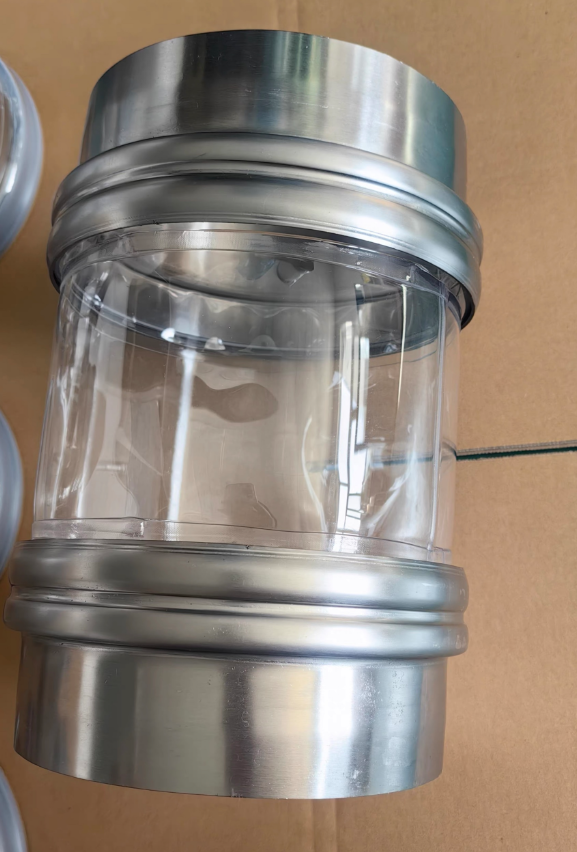

The SF Internal Snap-On Flexible Connector solves these challenges through an internal snap-ring design that seals from within the mating pipe.
Key Mechanical Advantages:
- 30-Second Tool-Free Installation: Maintenance personnel compress the spring-steel ring by hand, insert it into the welded joint, and release. The ring pops into position instantly.
- Crevice-Free Interior: The internal seal eliminates product traps, meeting strict CIP (Clean-in-Place) and WIP (Washing-in-Place) standards.
- Continuous Sealing Pressure: The tensioned spring-steel band maintains consistent outward radial pressure against the spigot wall, maintaining a seal despite continuous vibration from sifters or vibratory feeders.
Technical Specifications & Compliance Sheet
Below is the standard material and performance specification matrix for engineering review and quality compliance verification:
| Technical Parameter | Engineering Specification | Compliance & Standard |
| Sleeve Material | Premium Solid-Molded Thermoplastic Polyurethane (TPU) | Food-Grade / Pharma Grade |
| Food Safety Compliance | FDA 21 CFR 177.2600 & EC 1935/2004 | 100% Zero Metal Contamination |
| Surface Resistivity | < 10⁹ Ω (Anti-Static Option Available) | ATEX Zone 20/21/22 Dust Explosion Proof |
| Operating Temperature | -20°C to +85°C (Continuous) | High-Temp Silicone Options Available |
| Pressure Rating | Positive Pressure: Up to 0.2 bar; Vacuum: Up to -0.4 bar | Vacuum-Ring Reinforced Versions Available |
| Standard Diameters (D) | 102 mm to 804 mm (4" to 32") | Custom Diameter Sizes Available |
| Standard Lengths (CL) | 100 mm to 1000 mm | Customizable Minimum Starting at 80 mm |
Technical Comparison: SF Snap-In vs. Traditional Hose Clamps vs. Proprietary Internal Lock Systems
When evaluating flexible couplings for new OEM equipment or plant retrofit projects, procurement teams must balance unit costs, lead times, and engineering performance:
| Evaluation Feature | Traditional Hose Clamping | Proprietary Internal Lock Systems | SOSHH SF Snap-In Connector |
| Installation Time | 10 – 15 Mins (Tools Required) | < 30 Seconds (Tool-Free) | < 30 Seconds (Tool-Free) |
| Internal Crevices / Leaks | High Risk of Powder Buildup | Zero Crevice / Dust-Tight | Zero Crevice / Dust-Tight |
| Supply Chain & Lead Time | Standard Stock | Long Lead Times / Single Source | Global Shipping / Fast Dispatch |
| Procurement Cost | Low Initial / High Maintenance | High Proprietary Pricing | High Cost-Efficiency (Direct Mfr) |
| Custom Size Flexibility | Limited Custom Dimensions | Fixed Standard Sizes | Fully Customizable Diameter & CL |
Target Applications in Process Industries
SF Snap-In Flexible Connectors are engineered for critical processing interfaces across bulk solids and powder handling infrastructure:
- Li-ion Battery Raw Material Lines: Metering bin connections for LiPF6, LiBOB, LiBF4, and cathode/anode precursor powders.
- Pharmaceutical Powder Processing: Milling, micronizing, tablet pressing, and cleanroom isolator transfer sleeves.
- Food & Dairy Processing: Infant formula bagging lines, milk powder spray drying towers, and flour/starch sifters.
- Chemical & Polymer Manufacturing: Cyclones, rotary valves, loss-in-weight feeders, and dust collection hoppers.
Frequently Asked Questions (Engineering & Procurement FAQs)
Q1: Are these flexible connectors compatible with standard internal snap-groove spigots?
A: Yes. If your existing piping already utilizes standard internal snap-groove steel joints, the SOSHH SF Internal Snap-On sleeve easily snaps into place with identical dimensions and sealing integrity, providing a seamless retrofit without pipeline modifications.
Q2: Are these flexible connectors safe for explosive dust environments (ATEX)?
A: Absolutely. We offer an ATEX-compliant anti-static TPU version with surface resistance rated below 10⁹ Ω. This prevents electrostatic charge buildup during high-velocity pneumatic powder conveying.
Q3: How do I select the correct diameter (D) and length (CL) for my drawing?
A:
- Diameter (D): Measure the outer diameter of the steel welding spigot at the groove position.
- Length (CL): Measure the net gap distance between the two end spigots (excluding the seal insertion area).
Request CAD Drawings & Technical Quotations
Need 2D/3D CAD models, material certificates, or custom dimensions for your project specifications?
- Web: www.soshh.com
- Email: amin@soshh.com
- Technical Support: Direct custom engineering for OEM machinery manufacturers and processing plants worldwide.
