The Ultimate Guide to Flexible Connectors: Optimizing Powder Handling with Quick-Release Technology
Why Switch to Tri-Clamp Quick-Release TPU Connectors?
Whether you are managing weighing systems, vibrating sifters, or raw material transfer, the transition to quick-release technology provides immediate operational benefits:
1. Seconds, Not Minutes: Rapid Installation
The Tri-Clamp design allows for tool-free, lightning-fast assembly and disassembly. This is critical for processes that require frequent cleaning, filter changes, or batch switches, effectively minimizing costly downtime.
2. Premium TPU Material Performance
Unlike standard rubber or silicone, TPU (Thermoplastic Polyurethane) offers:
- Superior Abrasion Resistance: Significantly reduces wear from abrasive powders.
- High Tear Strength: Ensures longevity even under constant vibration or mechanical stress.
- Food-Grade Compliance: Meets rigorous food contact standards, ensuring your process is safe and compliant with industry regulations (GMP, FDA).
3. Specialized Solutions for Complex Environments
Not all powders are created equal. Our range of TPU sleeves is engineered for specific industrial challenges:
- PUAS (Antistatic): Prevents static charge accumulation in combustible or explosive powder environments (Surface Resistance $<10^9 \Omega$).
- PUHT (High-Temperature): Built to withstand temperatures up to $150^\circ C$, perfect for hot-fill or drying processes.
- PURF (Fiber-Reinforced): Engineered for high-pressure or vacuum applications, offering exceptional tensile strength ($300\text{ MPa}$).
Technical Selection Guide
Selecting the right connector is vital for system safety. Use this quick reference to find the best match for your application:

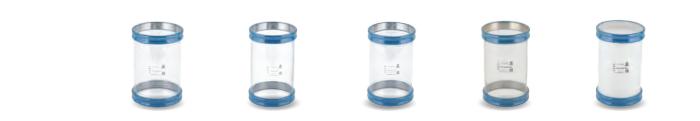

| Material Code | PU10 | PU05 | PUHT | PUAS | PURF |
|---|---|---|---|---|---|
| Material | Polyurethane | Polyurethane | High-Temp PU | Antistatic PU | Fiber-Reinforced PU |
| Application | General usage | Weighing | High temperature | Explosive dust | Positive/Negative pressure |
| Color | Transparent | Transparent | Transparent | Transparent | White |
| Thickness (mm) | 1 | 0.5 | 1 | 1 | 0.8 |
| Abrasion (mg) | 39 | 39 | 35 | 39 | 39 |
| Surface Resistance (Ω) | >10¹² | >10¹² | >10¹² | <10⁹ | >10¹² |
| Temperature (°C) | -20~110 | -20~110 | -20~150 | -20~110 | -20~110 |
| Air Permeability | Airtight | Airtight | Airtight | Airtight | Airtight |
| Tensile Strength (MPa) | 40 | 10 | 40 | 15 | 300 |
| Elongation (%) | 600% | 300% | 600% | 600% | 600% |
| Food Contact | Yes | Yes | Yes | Yes | Yes |
| Process | Hot Melt | Hot Melt | Hot Melt | Hot Melt | Hot Melt |

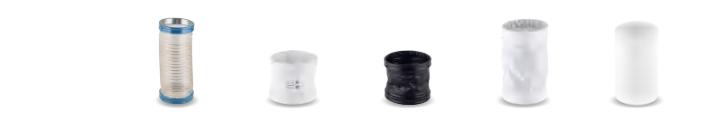

| Material Code | PUFL | TE02 | TE02AS | PP06 | PE20 |
|---|---|---|---|---|---|
| Material | Spiral Steel Reinforced PU | 100% PTFE | 100% PTFE | Polypropylene | PTFE-Coated Needle Felt |
| Application | Large vibration/travel | Corrosive acid/alkali & High temp | Corrosive acid/alkali & High temp | Breathable | Breathable |
| Color | Translucent White | White | Black | White | White |
| Thickness (mm) | 0.6 | 0.2 | 0.2 | 0.6 | 2 |
| Abrasion (mg) | 35 | — | — | — | — |
| Surface Resistance (Ω) | >10¹² | >10¹² | <10⁶ | >10¹² | >10¹² |
| Temperature (°C) | -20~110 | -40~300 | -40~300 | -20~130 | -20~150 |
| Breathability | Airtight | Airtight | Airtight | Breathable | Breathable |
| Tensile Strength (MPa) | 40 | — | — | — | — |
| Elongation (%) | 600% | 10% | 10% | — | 10% |
| Food Contact | Yes | Yes | Yes | Yes | Yes |
| Process | Hot Melt | Hot Melt | Hot Melt | Sewing | Sewing |
Conclusion: Compliance and Safety
All materials listed—from the ultra-thin PU05 to the heavy-duty PE20—are Food Contact Compliant and manufactured using high-quality Hot Melt or Sewing processes. By matching the material code to your specific environmental constraints, you reduce the risk of material failure and maximize the ROI of your processing equipment.
