Drop-In Alternative Guide for Snap-In Flexible Sleeves: Solving Custom Lengths, Vacuum Collapse & Extreme Temperature Gaps

⚡ Executive Summary for Plant Engineers & Procurement Directors

• 100% Drop-In Spigot Compatibility: Precision-machined dual spring-steel bands seat directly into existing standard grooved spigots (zero pipe cutting, zero hot-work welding, 100% direct retrofit).
• Bespoke Millimeter Lengths (Zero Tooling Fees): Eliminates rigid 50 mm length catalog constraints by offering any custom height (80 mm to 6,000 mm), conical reducers, and rectangular geometries with $0 mold fees and a 1-piece MOQ.
• Engineered for Extreme Operating Gaps: Extends operating limits where standard clear polyurethanes fail—providing 316L ring-reinforced anti-collapse sleeves for -1000 mbar deep vacuum and CNC machined virgin PTFE bellows for continuous +260°C & pH 0–14 aggressive chemicals.
• Direct Factory Economics & 48-Hour Fast-Track: Eliminates multi-tier distributor markups (30% to 50% procurement cost reduction) backed by 48 to 72-hour rapid prototyping for emergency line-down situations.

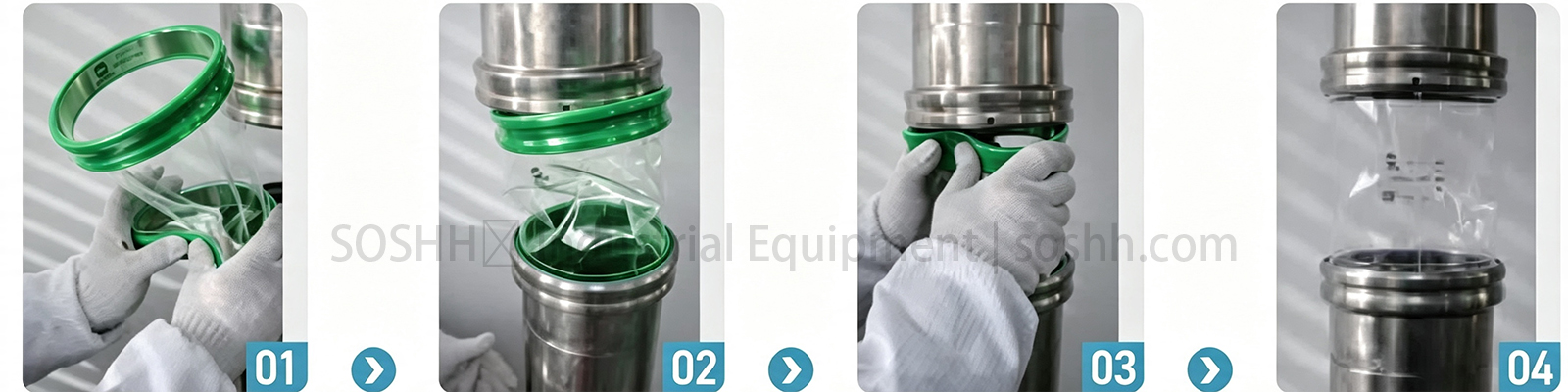

Fig 1. 100% Tool-free drop-in replacement: SOSHH SF-ClearFlex™ snapping directly into existing standard grooved spigots in under 30 seconds.

Snap-in flexible connector systems transformed sanitary bulk solids handling by eliminating filthy hose clamps, product dusting, and unsanitary internal crevices. However, as processing plants increase throughput and automate packaging lines, plant maintenance and reliability engineers face distinct operational hurdles with conventional market-standard snap-in brands:

1. Rigid Catalog Dimensions: Standard suppliers provide only fixed 50 mm length steps (e.g., 100 mm, 150 mm, 200 mm). When equipment settles or retrofit gaps measure an awkward dimension (e.g., 135 mm, 175 mm), standard sleeves bunch up, crease, and tear prematurely.
2. Premature Failure in Extreme Duty: Standard polyurethanes soften and degrade above 90°C, collapse under dense-phase vacuum conveying, and dissolve when exposed to aggressive organic solvents.
3. Inflated Distribution Costs & Long Lead Times: Sourcing replacement sleeves through layered agent networks creates 4 to 8 week delivery delays and high procurement markups.

This engineering guide demonstrates how SOSHH® Snap-In Flexible Solutions provide 100% mechanical interchangeability while solving the custom geometry, vacuum collapse, and high-temperature challenges standard market offerings cannot resolve.

1. 100% Spigot Fit: Seamless Drop-In Replacement Without Hot Work

Switching flexible sleeve suppliers should never require costly plant modifications. Process managers cannot afford to cut stainless ductwork or weld new flanges in cleanroom or ATEX dust hazard suites.

SOSHH SF-ClearFlex™ and SF-StatFlex™ sleeves are engineered with exact dimensional profile matching:

• Direct Diameter Interoperability: Precision-matched to all standard metric spigots (DN100, DN125, DN150, DN200, DN250, DN300, up to DN650).
• Calibrated Dual Snap-Ring Fit: High-tensile spring-steel bands snap outward into standard internal spigot grooves with calibrated retention force.
• Self-Energizing Pressure Seal: Internal line pressure or air pulses push the cuff tighter against the spigot wall, maintaining a certified hermetic seal up to 1.0 bar (14.5 PSI).
• Tool-Free 30-Second Retrofit: Operators pull the old sleeve out by hand and snap the SOSHH replacement into place—zero tools, zero downtime.

2. Unmet Need 1: The "Fixed Length" Bottleneck vs. Millimeter-Custom Tailoring

When connecting gyratory screeners, blenders, or loss-in-weight feeders, real-world vertical gaps rarely align with standard catalog increments. Installing a sleeve that is too long creates inward fold creases that collect powder and abrade; installing one too short stretches the sleeve into constant tension, causing fatigue blowout at the cuff seams.

Comparison Matrix: Standard Brands vs. SOSHH® Custom Fabrication

Fig 2. SOSHH ring-reinforced TPU sleeve maintaining 100% full circular bore under -800 mbar pneumatic vacuum transfer.

3. Unmet Need 2: Preventing Deep Vacuum Collapse (-1000 mbar)

Standard unsupported polyurethane sleeves rely purely on polymer wall thickness (0.8 mm to 1.0 mm). When installed on dense-phase vacuum conveying lines, vacuum receiver loaders, or dust collectors operating between -200 mbar and full vacuum (-1000 mbar / -100 kPa), external atmospheric pressure instantly crushes the sleeve walls flat, choking powder flow and destroying the sleeve within weeks.

Structural Performance Matrix: Unsupported vs. Ring-Reinforced Sleeves

4. Unmet Need 3: Extreme Thermal & Corrosive Gaps (-70°C to +260°C)

Thermoplastic polyurethane (TPU) is the benchmark material for abrasive dry powders at ambient temperatures. However, chemical synthesis reactors, fluid bed dryers, rotary kilns, and continuous steam-in-place (SIP) circuits operate far beyond the thermal limits of polyurethane. Above 110°C, TPU undergoes thermal softening, loss of tensile strength, and polymer degradation.

Extreme Duty Benchmark: High-Temp Materials vs. SOSHH® Machined PTFE

Fig 3. SOSHH CNC machined virgin PTFE bellows bridging extreme chemical lines up to +260°C where standard TPU cannot survive.

5. Model Interchangeability & Specification Cross-Reference Guide

Use this direct technical cross-reference matrix to identify the matching SOSHH high-performance drop-in replacement for your existing plant hardware:

6. Manufacturing Economics: Factory-Direct Supply & Fast-Track Dispatch

By partnering directly with SOSHH as an engineering source manufacturer, processing plants and OEM machinery builders bypass layered distribution markups:

• Factory-Direct Pricing: Eliminate third-party agent markups, achieving 30% to 50% net cost savings on recurring flexible sleeve replacements.
• 48-Hour Emergency Fast-Track: Unexpected sleeve rupture? Our digital fabrication cell manufactures and dispatches custom replacement sleeves within 48 to 72 hours.
• Door-to-Door DDP Logistics: Seamless international shipping with Delivered Duty Paid (DDP) express delivery directly to your plant site.
• Audit-Ready Documentation: Every order is accompanied by comprehensive regulatory packages including FDA 21 CFR 177.2600 Declarations of Compliance (DoC), EU 10/2011 migration reports (SGS/TÜV), and EN 10204 3.1 Material Test Certificates.

7. Frequently Asked Questions (FAQ)

Q1: Will SOSHH SF-ClearFlex™ sleeves fit our existing installed snap-in spigots?

A1: Yes, 100%. SOSHH snap-in cuffs are precision-machined to match standard spigot internal groove profiles. They snap into place securely by hand with zero piping modifications, providing a certified dust-tight seal up to 1.0 bar (14.5 PSI).

Q2: How does SOSHH achieve custom lengths without mold tooling fees?

A2: Rather than relying on rigid injection molds, SOSHH utilizes automated 3D CAD pattern unfolding, flatbed CNC cutting, and high-frequency molecular fusion welding. This allows us to produce any custom height (e.g., 125 mm, 175 mm, 320 mm) or non-standard diameter with $0 tooling fees and a 1-piece MOQ.

Q3: How do I verify compliance for our upcoming food safety audit?

A3: Every sleeve features a permanent, hygienic laser-etched batch code displaying production lot numbers and standard markings. We provide a full audit dossier containing our FDA 21 CFR 177.2600 Declaration of Compliance (DoC) and EU 10/2011 migration test reports from accredited independent laboratories (SGS / TÜV).

Q4: What is the minimum order quantity (MOQ) for custom-sized sleeves?

A4: Our MOQ is 1 piece. Whether you need a single prototype to solve an urgent line misalignment or high-volume serial production for OEM skids, we support your exact project schedule.

8. Quality Assurance & E-E-A-T Compliance Documentation

Every SOSHH flexible connector is backed by rigorous engineering verification and hygienic certification:

• FDA 21 CFR 177.2600 Declaration of Compliance (DoC) for direct aqueous, dry, and fatty food contact.
• EU Regulation 10/2011 & EC 1935/2004 Migration Reports certified by independent SGS / TÜV laboratories.
• EC 2023/2006 (GMP) Good Manufacturing Practice Workflow Certification.
• USP Class VI Biological Reactivity Certification ensuring zero cellular toxicity in pharmaceutical API processing.
• Permanent Laser-Etched Batch Traceability Codes on every sleeve.
• EN 10204 3.1 Material Test Certificates (MTC) available with every batch.

9. Related High-Performance Powder Handling Solutions

SOSHH® SF-ClearFlex™ Transparent TPU Snap-In Sleeves – Direct product page for food-grade snap-in connectors.

SOSHH® SF-WeighFlex™ Ultra-Flexible Weighing Bellows – Food-grade zero-force sleeves for loss-in-weight feeders.

SOSHH® SF-StatFlex™ Permanent Anti-Static TPU Connectors – ATEX Zone 20/21 static-dissipative sleeves (10^6 to 10^9 Ohm).

Square & Rectangular Flexible Connectors (FLR Series) – Custom square-to-round food-grade transition sleeves.

Heavy-Duty CNC Machined PTFE Corrugated Bellows – High-temperature (+260°C) and universal chemical-resistant PTFE expansion joints.

10. Request Your Free Drop-In Fit Sample & Engineering Cross-Reference Quote

Upgrade your plant's flexible connections with zero tooling costs and factory-direct reliability. Contact our technical engineering team with your spigot diameter, installed height, or current part numbers for immediate cross-referencing, complimentary test samples, and 24-hour CAD drawings.

• Free Drop-In Sizing Cross-Reference Review within 12 to 24 hours
• Free Material Sample Kits available for qualified plant maintenance & OEM engineering teams
• Complete Compliance Dossier (DoC + SGS/TÜV Reports) provided with every formal quote
• Zero Tooling Fees on all custom heights, conical reducers, and rectangular transitions
• Direct Factory Supply with worldwide DDP door-to-door express delivery
