Custom Square-to-Round & Conical Reducer Sleeves: Zero Tooling Fee Fabrication for Misaligned Powder Ducts

⚡ Executive Summary for Plant Engineers & Fabricators

Eliminate Duct Misalignment Stresses: Custom-engineered square-to-round, rectangular, and eccentric conical sleeves bridge irregular equipment offsets without inducing mechanical strain or tearing.
Zero Tooling Fees (No Mold Costs): Advanced CAD 3D pattern cutting and automated high-frequency thermal welding enable 100% custom dimensional tailoring with zero mold tooling investment.
100% Dust-Tight & Smooth Material Flow: Precision-welded seams eliminate internal ledges, preventing powder stagnation, bridging, and microbial harboring.
Food & Chemical Grade Compliance: Fabricated from virgin polyether-TPU certified to FDA 21 CFR 177.2600 and EU Regulation 10/2011, providing superior abrasion resistance over legacy rubber or canvas socks.

Custom square-to-round transparent TPU flexible connector with reinforced rings and bolted flanges for powder transitions

Fig 1. SOSHH custom square-to-round transparent TPU transition sleeve with internal support rings and integrated bolt flanges.

In brownfield plant expansions, hopper retrofits, and bulk solids packaging lines, piping geometry is rarely a simple straight cylinder. Process engineers frequently face complex interface challenges: square slide gates discharging into circular rotary valves, hopper outlets offset from downstream equipment due to structural constraints, or dissimilar flange sizes across OEM machinery.

Historically, maintenance teams resorted to rigid metal transition hoppers (which transmit vibration and noise) or stitched canvas socks (which leak fine dust and harbor bacteria). When ordering custom molded rubber sleeves, plants are routinely quoted thousands of dollars in mold tooling fees and 8 to 12 weeks of lead time.

This engineering guide explains how SOSHH Custom Polyurethane Flexible Sleeves provide a fast, hygienic, and zero-tooling-cost solution for non-standard, eccentric, and square-to-round powder transitions.

1. Why Standard Sleeves Fail on Misaligned & Irregular Powder Ducts

Connecting mismatched or misaligned equipment without an engineered transition sleeve leads to frequent operational failures:

Square-to-Round Flange Mismatches

Slide gate valves, screw conveyor troughs, and square hopper outlets frequently need to connect to round pneumatic piping or rotary airlocks. Clamping a standard cylindrical sleeve over a square flange creates deep corner wrinkles where fine powder escapes.

Axial and Angular Offsets (Eccentric Misalignment)

Due to structural floor beams, load cell positioning, or thermal expansion, upper and lower spigots are frequently non-concentric. Forcing a straight sleeve onto an eccentric offset places continuous tension on one side of the sleeve, causing premature tear-out along clamp edges.

Restricted Height (Short Installation Envelopes)

In tight processing suites with low ceilings, standard long expansion joints cannot fit. Custom-fabricated short-stroke connectors are required to achieve full dynamic vibration isolation within restricted vertical spaces (< 100 mm).

2. Common Non-Standard Transition Geometries in Bulk Solids Handling

SOSHH custom fabricates flexible sleeves across four primary geometric configurations to match any equipment layout:

Transition Geometry	Common Industrial Applications	Key Engineering Advantage
Square-to-Round / Rectangular-to-Round	Slide gates, square bin activators to round rotary valves	Smooth transitional geometry eliminates corner dead zones

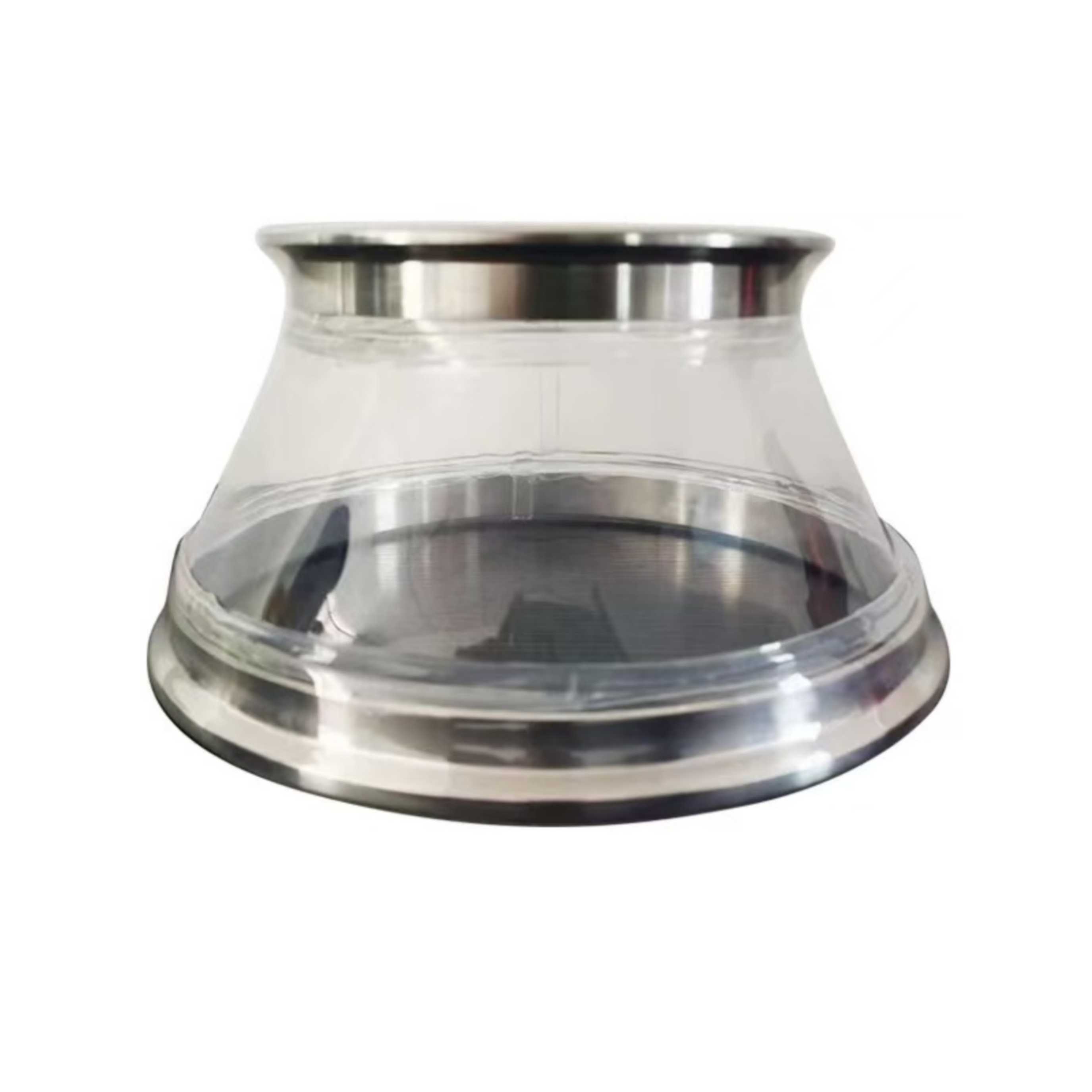

Concentric Conical Reducer	Large silo outlets connecting to smaller feed chutes	Calibrated cone angle prevents powder bridging and compaction
Eccentric (Offset) Reducer	Misaligned ductwork bypassing structural columns	Flat-back design allows flush wall mounting and unhindered gravity flow
Bespoke Multi-Angle Bellows	3D vibrating screeners with combined vertical & lateral stroke	Independent convolution sizing absorbs multi-axis motion

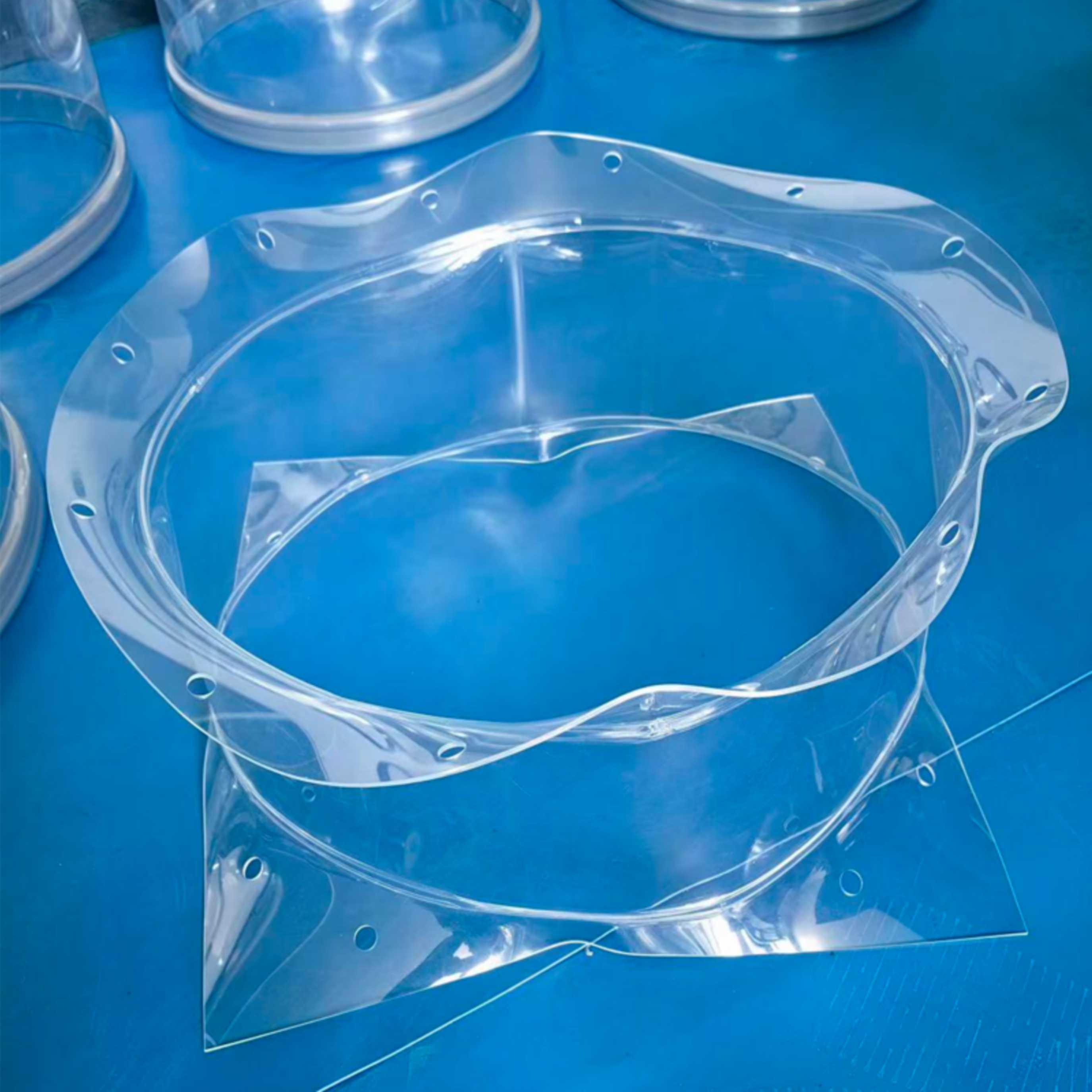

Top view of custom square-to-round polyurethane flexible transition sleeve with bolt holes on workshop table

Fig 2. Seamless transition geometry from square base to circular upper flange.

3. The Digital High-Frequency Welding Advantage: Zero Tooling Fees Explained

Traditional rubber and silicone sleeves require heavy metal compression molds costing $2,000 to $5,000 per size. SOSHH utilizes digital precision fabrication to deliver custom geometries without mold tooling:

Digital 3D CAD Pattern Unfolding

Our engineering team takes your centerline offset, top/bottom dimensions, and height, generating a mathematically precise 2D flat pattern unfolded from 3D CAD models.

Automated CNC Laser & Knife Cutting

Virgin polyether-TPU sheets (1.0 mm to 2.0 mm wall thickness) are cut on precision CNC flatbed cutters with sub-millimeter edge accuracy.

High-Frequency Molecular Fusion Welding

Seams are bonded using high-frequency dielectric molecular welding. Rather than using glue or thread, the TPU polymer chains melt and fuse under high-frequency electromagnetic energy. The resulting seam exhibits 100% of the parent material's tensile strength (over 110 N/mm) and is completely smooth, crevice-free, and dust-tight.

4. Engineering Comparison & Performance Benchmark: Molded Rubber vs. SOSHH® Welded TPU

Performance Metric	Traditional Molded Rubber Sleeves	SOSHH® Custom Welded Polyether TPU	Operational Advantage
Tooling & Mold Fee	$2,000 to $5,000 per size	$0 (Zero Tooling Fees)	Eliminates capital expenditure on molds
Tear Strength (Die C)	40 to 50 N/mm	110+ N/mm	2.5x higher resistance against dynamic tearing
Elongation at Break	300% to 400%	700%+	Seamlessly absorbs severe equipment misalignments
Abrasion Resistance	Moderate (sheds carbon dust)	Exceptional (30 mg DIN loss)	3x longer lifespan on abrasive powder lines
Sanitary Compliance	Often contains plasticizers & sulfur	FDA 21 CFR 177.2600 & EU 10/2011	Certified safe for direct food & pharma contact
Optical Clarity	100% Opaque (Black / Dark)	High-Clarity Transparent	100% visual flow and bridging monitoring
Production Lead Time	6 to 10 Weeks	5 to 7 Working Days	Reduces maintenance downtime by up to 80%
Minimum Order (MOQ)	50 to 100 Pieces	1 Piece (Prototypes Welcome)	Highly economical for single-piece retrofits

Custom fabricated transparent TPU sleeves and ring-reinforced square-to-round connectors

Fig 3. Custom square-to-round sleeves with external reinforcement rings for high-vacuum and heavy-dust lines.

5. Mounting & Flange Configurations for Custom Transitions

Every custom transition sleeve can be configured with your preferred mounting system:

SOSHH® SF-ClearFlex™ Snap-In Cuffs: Integrated spring-steel snap bands for tool-free 30-second maintenance.
Integrated Bolted Flanges: Polyurethane flat flanges with custom laser-drilled bolt hole patterns (ANSI 150#, DIN PN10/PN16, JIS, or custom rectangular hole spacing).
Sanitary Tri-Clamp Ferrules: Welded 304/316L stainless steel ferrules for CIP washdown suites.
Straight Cuffs with Band Clamps: Economical smooth ends for heavy-duty quick-release worm-drive or bridge clamps.

6. Fast RFQ Guide: 4 Key Measurements for Custom Fabrication

To receive a formal 2D/3D CAD drawing and factory-direct quote within 24 hours, provide our engineering team with:

Top Interface: Shape (Round / Square / Rectangular) and Outer/Inner Dimensions (D1 or L1 x W1).
Bottom Interface: Shape and Outer/Inner Dimensions (D2 or L2 x W2).
Vertical Height (H): Installed distance between upper and lower metal spigots.
Offset Distance (X & Y): Centerline horizontal offset between top and bottom flanges (if eccentric).

7. Material Selection Guide by Powder & Process Type

To ensure long-term durability and regulatory compliance, select the optimal elastomer matrix based on your process media:

Powder & Application Category

Recommended Material & Configuration	Technical Compliance & Key Advantages
Food-Grade Transparent Polyether TPU (1.0 mm wall)	FDA 21 CFR 177.2600 & EU 10/2011 certified; 100% plasticizer-free; ultra-smooth inner surface prevents powder stagnation
Heavy-Duty Wear-Resistant TPU (1.5 mm to 2.0 mm wall)	30 mg DIN abrasion loss; delivers 3x longer operational life than standard synthetic rubber socks
Permanent Anti-Static TPU (10⁶ to 10⁹ Ω)	Safely dissipates electrostatic charges; fully compliant with ATEX Dust Zones 20/21/22
High-Temp Polyether TPU or Pure PTFE Bellows	Continuous operation up to +110°C (TPU) or up to +260°C (Pure CNC Machined PTFE)

8. Quality Assurance & E-E-A-T Compliance Documentation

Every custom transition connector is backed by complete quality and compliance certification:

FDA 21 CFR 177.2600 Declaration of Compliance (DoC) for direct dry food and pharmaceutical contact.
EU Regulation 10/2011 & EC 1935/2004 Migration Test Reports (Certified by SGS / TÜV).
ISO 9001:2015 Quality Management System Certification ensuring tight dimensional tolerances (±1 mm).
100% Virgin Ether-Grade TPU Formulation: Completely free of phthalates, BPA, and heavy metal plasticizers.
Laser-Etched Batch Traceability Codes on every sleeve for hygienic plant maintenance auditing.
EN 10204 3.1 Material Test Certificates available upon request.

9. Frequently Asked Questions (FAQ)

Q1: Is there a minimum order quantity (MOQ) for custom square-to-round sleeves?

A1: No. Because we use CNC digital cutting and high-frequency welding without molds, our MOQ is 1 piece. We support single-piece prototyping for plant maintenance as well as large-scale OEM serial supply.

Q2: Will high-frequency welded seams crack under continuous sifter vibration?

A2: No. High-frequency welding fuses the polyether-TPU at a molecular level. The weld seam retains over 100% of the parent material's tear strength (> 110 N/mm) and maintains full flexibility under continuous 3D dynamic vibration.

Q3: Can SOSHH supply custom transitions in anti-static or weighing bellows configurations?

A3: Yes. Custom transition geometries can be fabricated using our SOSHH® SF-StatFlex™ Permanent Anti-Static TPU (10⁶ to 10⁹ Ω) or formed into SOSHH® SF-WeighFlex™ Multi-Convolution Weighing Bellows for zero-reaction-force weighing hoppers.

10. Related Custom Powder Handling Solutions

Square & Rectangular Flexible Connectors (FLR Series) – Custom square-to-round and rectangular hopper transition sleeves.

FLC Round Flange Flexible Connectors – Custom drilled polyurethane and stainless steel flange sleeves.

SOSHH® SF-WeighFlex™ Ultra-Flexible Weighing Bellows – Multi-convolution zero-force sleeves for loss-in-weight feeders and weighing hoppers.

SOSHH® Tool-Free Snap-In Flexible Sleeves (Engineering Guide) – Engineering deep-dive into gasket-free 30-second quick-change sealing.

SOSHH® SF-StatFlex™ Permanent Anti-Static TPU Connectors – ATEX Zone 20/21 explosion-proof sleeves (10⁶ to 10⁹ Ω).

SOSHH® SF-ClearFlex™ Transparent TPU Snap-In Sleeves – Standard tool-free quick-change flexible sleeves.

Pure PTFE Convoluted Bellows – Chemical- and high-temperature-resistant expansion joints up to +260°C.

11. Request Your Custom 2D/3D CAD Drawing & Quote

Solve irregular duct alignment issues with zero tooling costs. Email your dimensions or equipment sketches to our technical engineering department for immediate review.

Free 2D/3D CAD Review for all custom geometries within 24 hours
Zero Tooling Fees on any diameter, square, rectangular, or conical transition
Rapid 5 to 7 Day Fabrication with global DDP express shipping to your facility
Bulk Order & OEM Serial Supply Pricing available upon request
📧 Technical RFQ & Drawings: amin@soshh.com
🌐 Official Website: www.soshh.com
📱 WhatsApp / Direct Engineering Support: +86 13567045023

blog

Custom Square-to-Round & Conical Reducer Sleeves: Zero Tooling Fee Fabrication for Misaligned Powder Ducts

Custom Square-to-Round & Conical Reducer Sleeves: Zero Tooling Fee Fabrication for Misaligned Powder Ducts

1. Why Standard Sleeves Fail on Misaligned & Irregular Powder Ducts

Square-to-Round Flange Mismatches

Axial and Angular Offsets (Eccentric Misalignment)

Restricted Height (Short Installation Envelopes)

2. Common Non-Standard Transition Geometries in Bulk Solids Handling

3. The Digital High-Frequency Welding Advantage: Zero Tooling Fees Explained

Digital 3D CAD Pattern Unfolding

Automated CNC Laser & Knife Cutting

High-Frequency Molecular Fusion Welding

4. Engineering Comparison & Performance Benchmark: Molded Rubber vs. SOSHH® Welded TPU

5. Mounting & Flange Configurations for Custom Transitions

6. Fast RFQ Guide: 4 Key Measurements for Custom Fabrication

7. Material Selection Guide by Powder & Process Type

8. Quality Assurance & E-E-A-T Compliance Documentation

9. Frequently Asked Questions (FAQ)

Q1: Is there a minimum order quantity (MOQ) for custom square-to-round sleeves?

Q2: Will high-frequency welded seams crack under continuous sifter vibration?

Q3: Can SOSHH supply custom transitions in anti-static or weighing bellows configurations?

10. Related Custom Powder Handling Solutions

11. Request Your Custom 2D/3D CAD Drawing & Quote

Categories

Related Posts

SOSHH Tool-Free Snap-In Flexible Connector (ATEX & Metal Detector Safe)

Engineered Flanged Polyether-TPU Flexible Sleeves: Standard DIN/ANSI Sizes & Custom Irregular Configurations

High-Performance Polyurethane Snap-In Connectors for Powder Handling | SOSHH®

Traditional Hose Clamps vs. Tool-Free Snap-in Connectors: Why Powder Plants are Switching

The Ultimate Guide to Choosing the Best Flexible Connector for Powder Transfer | SOSHH

Tags

SOSHH

Start Chat with:
