What Is a Machined PTFE Bellows?
A machined PTFE bellows is a flexible expansion joint turned from a solid virgin PTFE billet on a CNC lathe, rather than blow-molded. It absorbs thermal expansion, vibration, and pipe misalignment in chemical, semiconductor, and battery material lines while providing full vacuum stability and high-pressure surge resistance up to 1.6 MPa. Unlike molded bellows, the machined wall thickness is uniform and can be fabricated to large bore sizes up to DN1200.
Product Overview & Heavy-Duty Engineering
The SOSHH® Heavy-Duty CNC Machined Pure PTFE Corrugated Bellows (Series CB-2026) is engineered for extreme industrial environments where standard thin-walled molded connectors fail under pressure spikes, high vacuum, or mechanical fatigue.
Unlike conventional blow-molded bellows with uneven wall thickness, SOSHH® bellows are precision-turned from solid high-density virgin PTFE billets. Featuring a structured trapezoidal wall profile and optional stainless steel limit tie-rods, this heavy-duty expansion joint delivers exceptional high-pressure surge resistance (up to 1.6 MPa), full vacuum stability (-100 kPa), and 100% metal-free liquid contact.
![Heavy-duty CNC machined pure solid PTFE corrugated bellows for chemical piping]()
Key Engineering Advantages & Failure Protection
- Heavy-Wall Trapezoidal Geometry: Machined with consistent wall thickness to absorb severe hydraulic pressure surges and violent thermal expansion without ballooning or deformation.
- 100% Zero Metal Ion Contamination: Pure, non-pigmented virgin PTFE ensures zero copper (Cu) or iron (Fe) ion leaching into lithium-ion battery slurry, electronic-grade chemicals, or semiconductor ultrapure water (UPW).
- Integrated Stainless Steel Limit Tie-Rods: High-tensile external tie-rod assemblies limit maximum expansion and compression, absorbing pipeline blind flange thrust forces and protecting pump nozzles from dead-weight stress.
- Absolute Vacuum & Thermal Shock Resilience: Engineered to survive repeated alternating cycles between high-temperature steam sterilization (CIP/SIP) and full vacuum purging (-100 kPa) without sidewall collapse or stress whitening.
CNC Machined PTFE Bellows vs Blow-Molded PTFE Bellows
| PARAMETER | MACHINED PTFE BELLOWS | BLOW-MOLDED PTFE BELLOWS |
|---|
| Wall Thickness | Uniform trapezoidal profile | Inconsistent, variable |
| Pressure Rating | Up to 1.6 MPa (16 bar) | Typically lower |
| Vacuum Stability | Full vacuum -100 kPa | Prone to collapse |
| Fatigue Life | High, low internal stress | Low, micro-pinhole risk |
| Large Bore Capability | Up to DN1200 | Limited by mold size |
| Material Traceability | EN 10204 3.1 MTC | Often unavailable |
When to choose a PTFE machined bellows: when the line runs high-pressure surges, full vacuum cycles, or requires large-bore non-standard dimensions that molded bellows cannot physically produce.
![Custom stainless steel limit tie-rods assembly on heavy duty PTFE expansion joint]()
Technical Specifications (Engineering Datasheet)
| Engineering Parameter | Technical Specification | Compliance & Industry Standards |
| Product Series | SOSHH® Heavy-Duty CNC Machined PTFE Bellows | High-Pressure Non-Metallic Expansion Joint |
| Material Formulation | 100% Virgin High-Density PTFE Billet | FDA 21 CFR 177.1550, USP Class VI, SEMI |
| Nominal Diameter Range | DN15 (1/2") up to DN1200 (48") Large Bore | Custom CNC machining for non-standard piping |
| Pressure Rating | Full Vacuum (-100 kPa) up to 1.6 MPa (16 bar) | Hydrostatic leak tested at 1.5x working pressure |
| Operating Temperature | -70°C to +260°C (-94°F to +500°F) | Extreme thermal stability & chemical inertness |
| Flange Standards | Lap-Joint Flanges (SUS304 / SUS316L / Carbon Steel) | ASME B16.5 Class 150/300, DIN PN10/PN16, JIS 10K |
| Special Hardware | External Stainless Steel Limit Tie-Rods / Rings | Prevents over-extension & absorbs thrust forces |
📥 Official 2D/3D CAD & Engineering PDF Submittals
📐 Need Custom 2D/3D CAD Submittals & Dimension Tables?Access our complete official document: "SOSHH® Heavy-Duty CNC Machined Pure PTFE Corrugated Bellows Master Spec Catalog" to download full PCD flange dimensions, vacuum performance curves, and standardized RFQ order templates.
Primary Applications & Industry Use Cases
- Lithium-Ion Battery Cathode/Anode Slurry Transfer: Non-pigmented virgin PTFE guarantees pure fluid path with zero metal particle shedding for high-viscosity battery powders.
- Fine Chemical & Glass-Lined Reactors: Direct flexible inlet and outlet joint connections for glass-lined vessel necks and thermal oil headers, isolating vessel thermal expansion.
- Semiconductor Ultra-Pure Chemical Loops: Recirculation lines for high-purity aggressive acids, etchants, and solvents requiring parts-per-trillion (PPT) chemical clarity.
- Large Bore Exhaust & Ducting Networks: Non-standard custom engineering up to DN1200 for high-temperature corrosive vapor exhaust fan inlets.
Typical Applications of Corrugated PTFE Bellows
| EQUIPMENT / LINE | WHY A MACHINED PTFE BELLOWS | KEY PARAMETER |
|---|
| Lithium Battery Slurry Transfer | Zero Cu/Fe ion contamination | Non-pigmented virgin PTFE |
| Glass-Lined Reactors | Absorbs vessel thermal expansion | Flange DN, stroke |
| Semiconductor UPW Loops | PPT-level chemical clarity | Virgin PTFE, no filler |
| High-Temperature Exhaust Ducts | Corrosive vapor, up to DN1200 | Large bore, tie-rods |
| Load Cell / Weighing Systems | Zero parasitic reaction force | Thin convolution design
|

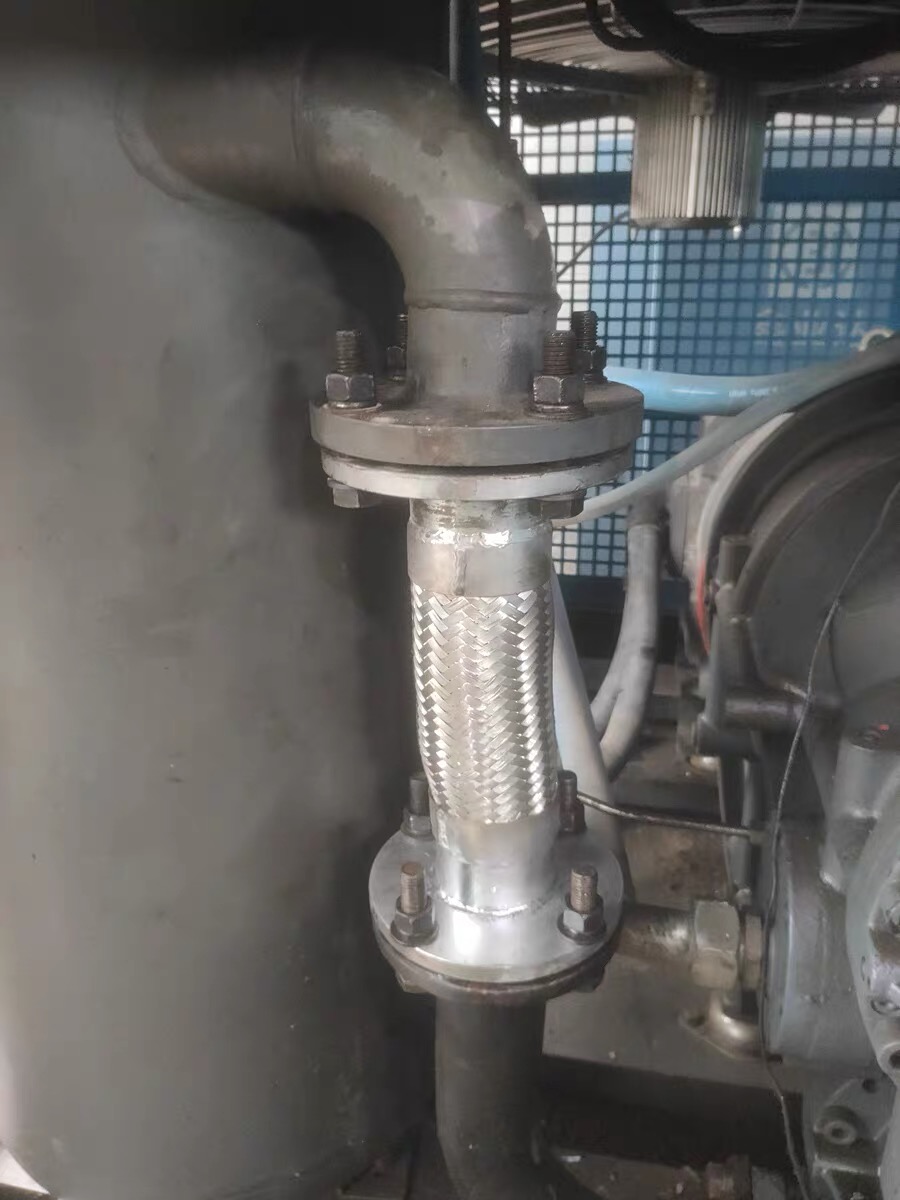

![PTFE corrugated expansion joint installed on glass-lined chemical reactor flange]()
Quality Guarantee & Engineering Verification
Every SOSHH® heavy-duty expansion joint undergoes rigorous quality assurance to meet global industrial safety requirements:
- 100% Pressure & Vacuum Integrity Test: Each unit is factory hydrostatic leak-tested at "1.5× Working Pressure" and verified under "-100 kPa Full Vacuum" conditions.
- Material Traceability & Certification: Supplied with full "EN 10204 3.1 Material Test Certificate (MTC)", guaranteeing pure raw material sourcing and full batch traceability.
- Precision Dimensional Control: Machined strictly adhering to "ISO 2768-m (General Metric Tolerance)" standards to ensure perfect on-site flange alignment.
Choosing the Right PTFE Bellows Configuration
| SITUATION | RECOMMENDED CONFIGURATION |
|---|
| Pressure > 0.3 MPa or floating anchors | With stainless steel limit tie-rods |
| Full vacuum purging cycles | Heavy-wall trapezoidal profile |
| Large bore DN600–DN1200 | Custom CNC-machined, non-standard |
| Load cell weighing accuracy | Zero-stiffness convoluted design |
| CIP/SIP steam sterilization | Virgin PTFE, -70°C to +260°C
|
Frequently Asked Questions (Engineering Review)
Q: Why choose CNC-machined solid PTFE bellows over standard blow-molded bellows?
A: Blow-molded PTFE bellows suffer from inconsistent wall thickness and high internal stress, making them vulnerable to micro-pinholes under high pressure or vacuum cycles. SOSHH® CNC-machined bellows are turned from solid virgin PTFE billets, offering precise trapezoidal wall thickness, superior fatigue life, and pressure resistance up to 1.6 MPa.
Q: Are custom tie-rods required for high-pressure installations?
A: For operating pressures exceeding 0.3 MPa or piping systems with floating anchors, we highly recommend custom stainless steel limit tie-rods (limit bolts) to absorb blind flange thrust forces and prevent catastrophic over-extension.
Q: Can SOSHH supply custom large-diameter bellows up to DN1200?
A: Yes. Supported by our specialized heavy-duty lathe equipment, SOSHH provides full 2D/3D CAD submittals and custom manufacturing for large-bore non-standard expansion joints up to DN1200.
Q:What is a corrugated bellow?
A: A corrugated bellow is a flexible connector with a series of convolutions (corrugations) formed along its length. These convolutions allow the bellow to compress, extend, and deflect to absorb thermal expansion, vibration, and pipe misalignment. SOSHH produces corrugated PTFE bellows by CNC machining from solid virgin PTFE billets.
Q:What is the operating temperature range of a PTFE machined bellows?
A: 100% virgin PTFE operates continuously from -70°C to +260°C, with a short-term peak of +280°C. This makes machined PTFE bellows suitable for high-temperature chemical and semiconductor applications.
Q:How do I specify a custom PTFE bellows?
A: Provide the flange standard (ASME / DIN / JIS), nominal diameter, operating pressure, vacuum requirement, temperature, and whether tie-rods are needed. SOSHH supplies full 2D/3D CAD submittals and an EN 10204 3.1 material certificate.
