Can Powder Processing Plants Install Tool-Free SF Snap-In Connectors to Replace Hose Clamps and Achieve Dust-Tight Seals Meeting Food Safety and ATEX Standards?

SOSHH SF internal snap-in flexible connector sleeve for food and pharmaceutical powder processing lines

💡 Executive Summary:Core Solution: SOSHH® SF Internal Snap-In Connectors eliminate traditional hose clamps using internal spring steel bands seated in SS316L spigot grooves.Key Benefits: Tool-free 30-second installation, 100% flush inner pipe wall (Zero Dead Zone), and absolute dust-tight sealing.Standards Compliance: Fully certified for FDA 21 CFR 177.2600 food contact and ATEX Zone 20/21/22 anti-static combustible dust environments.Interchangeability: Direct compatible alternative for standard BFM® fittings and Jacob tubing spigots.

SF Weld-On Steel Spigot Specification Matrix (Key Sizes)

DN Size Code	Pipe Outer Dia. D (mm)	Pipe Inner Dia. d (mm)	Spigot Height h (mm)	Internal Groove Profile
DN150	169	165	50	6mm Precision Snap Groove
DN200	204	200	50	6mm Precision Snap Groove
DN215	219	215	50	6mm Precision Snap Groove
DN270	273	269	50	6mm Precision Snap Groove
DN350	364	360	50	6mm Precision Snap Groove

SS316L 304 Weld-On Steel Spigots

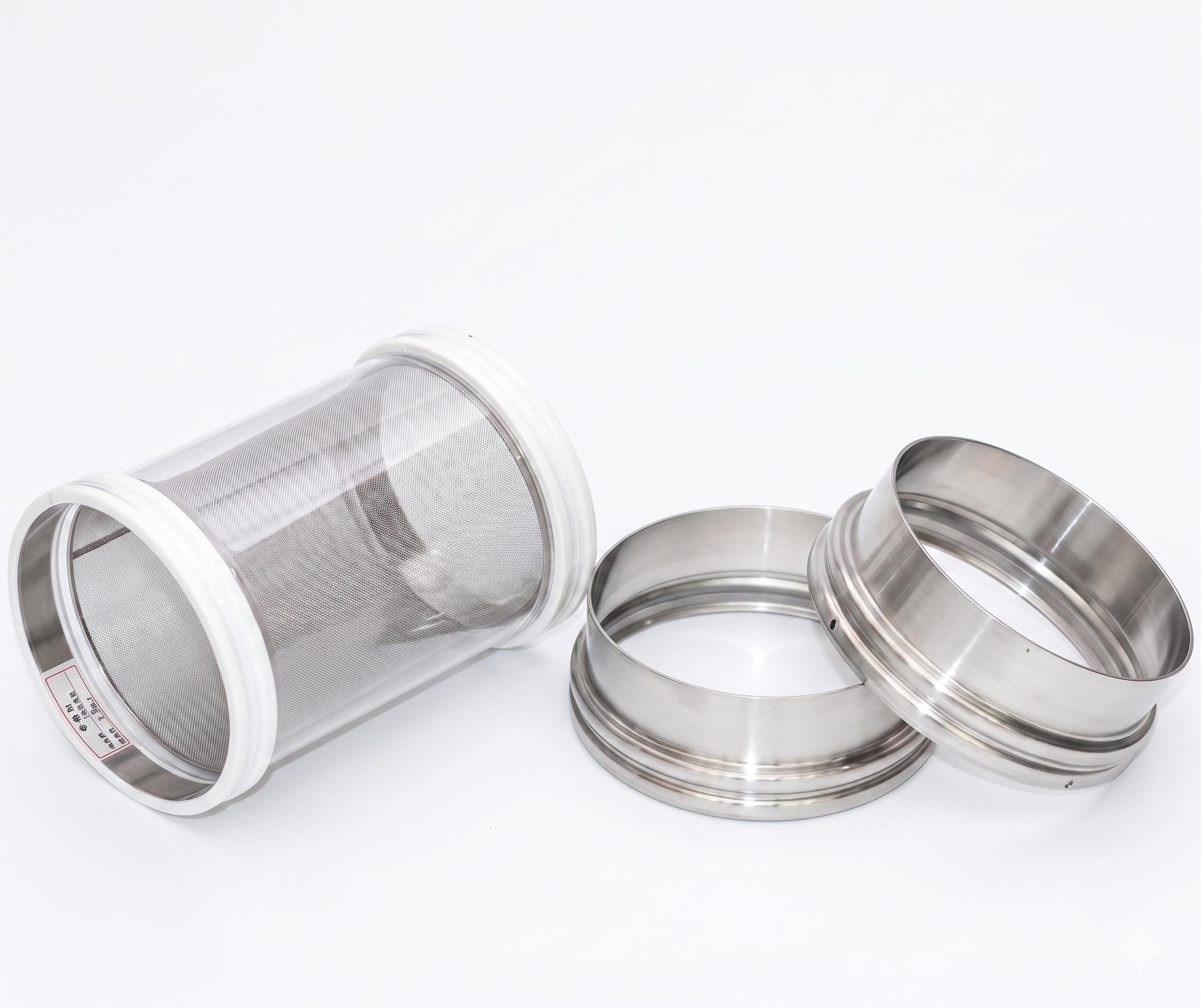

SOSHH SS316L weld-on steel spigots with internal snap-in flexible polyurethane sleeve

Pre-Installation Engineering Checklist

Measure Flange Outer Diameter: Verify pipeline OD within ±1 mm tolerance before spigot welding.
Deburr Welding Seams: Ensure weld seams inside the spigot groove are ground smooth to prevent TPU lip abrasion.
Select Proper Sleeve Length (CL): Match sleeve collar length (100 mm to 1000 mm) to machine stroke and dynamic vibration amplitude.
Regulatory Compliance Check: Confirm FDA 21 CFR 177.2600 food-grade status or specify ATEX anti-static TPU for combustible dust hazard zones.

2. Tool-Free Installation: 4 Steps for Dust-Tight Seal (<30 Seconds)

TPU lip (spring steel-reinforced option) snaps via elasticity; powder pressure auto-tightens.

Align & Compress: Match lip to groove; fold into "C" (gloves for hygiene).
Insert: Slide into 6mm groove via side hole.
Snap Lock: Release—tug 360° for uniform seat.
Connect & Verify: Repeat end 2; test with air/powder flow (transparent wall inspection).

Pro Tip: >300mm diameters: Top-down gravity assist. Matches soshh.com diagrams (01→02→03→04).

3. Maintenance & CIP Cleaning: Zero Dead Zone Hygiene

Traditional hose clamps wrap over the outside of pipes, creating an internal ledge where fine powders trap and bacteria colonies multiply. The SOSHH® internal snap-in design seats within a recessed groove, providing a completely smooth inner wall ideal for CIP (Clean-In-Place) washdowns. For ultra-high pressure applications, engineers can also evaluate our .

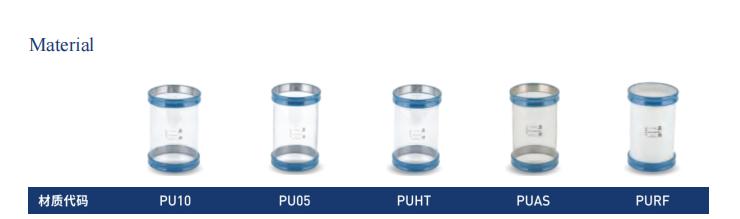

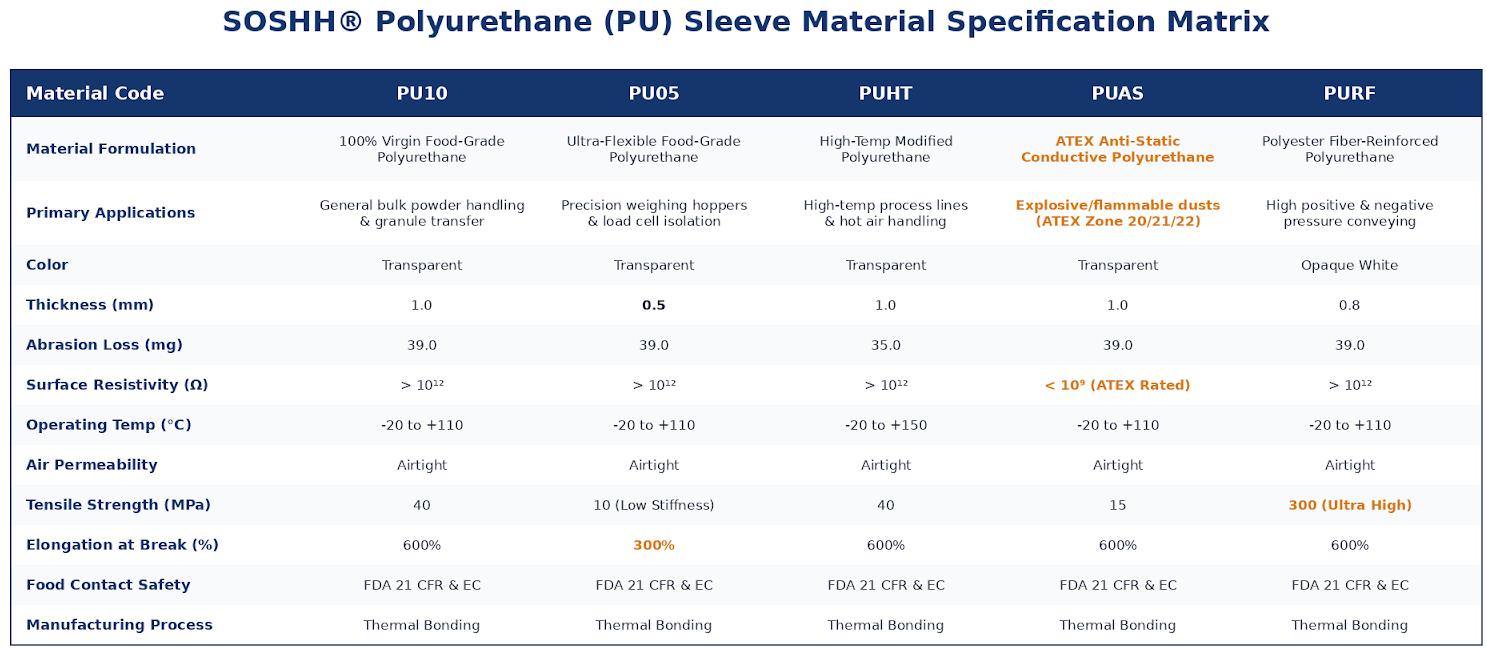

TPU Material Selection & Compliance Matrix

Material Code	Wall Thickness	Temp Range (°C)	Transparency	Primary Process Application	ATEX Rating
PU10	1.0 mm	-20 to +110	99% Clear	General powder handling & visual flow monitoring	Standard
PU05	0.5 mm	-20 to +110	High Clear	Loss-in-weight feeders & precision weighing hoppers	Low Stiffness
PUAS	1.0 mm	-20 to +110	High Clear	Combustible dusts (Sugar, Starch, Battery Chemicals)	< 10⁹ Ω (Zone 20/21/22)
PURF	0.8 mm	-20 to +110	Opaque White	Positive/negative pressure pneumatic conveying lines	High Strength
PUHT	1.0 mm	-20 to +150	Clear	High-temperature processing & hot air drying lines	Standard

4. Troubleshooting: Engineer-Approved Fixes

Observed Issue	Probable Root Cause	Immediate Field Fix	Long-Term Preventive Action
Minor Dust Leakage	Contaminated spigot groove or debris build-up	Disengage sleeve and clean groove with isopropyl alcohol wipe	Pre-inspect grooves during routine CIP maintenance shifts
Sleeve Pop-Out Under Surge	Extreme pressure surge exceeding rating or wrong CL length	Verify differential pressure; install spring-supported sleeve	Check pneumatic system relief valves (≤ 0.5 bar limit)
Hard Ring Compression	Low ambient temp or heavy-duty 1.0mm PU wall thickness	Warm spring ring in 40°C clean water to increase flexibility	Use standard C-fold technique with uniform hand pressure
Static Electricity Sparks	Non-conductive sleeve used in dry powder movement	Replace immediately with SOSHH® PUAS conductive sleeve	Verify steel spigots are fully grounded to main plant earth
Chemical Clouding	CIP sanitizing agents exceed chemical limits	Replace with TE02 100% pure PTFE flexible connector	Review chemical concentration and temp compatibility

Quality Assurance & Official Test Reports

Q: Can SOSHH® SF snap-in connectors directly replace hose clamps on existing US food plants?

A: Yes. By welding SOSHH® stainless steel spigots onto your existing pipe ends, you can instantly upgrade from external hose clamps to tool-free internal snap-in sleeves. All materials carry full FDA 21 CFR 177.2600 and EC 1935/2004 hygiene compliance certification.

Q: How does the 0.5mm PU05 sleeve prevent weighing errors on load cell hoppers?

A: Traditional thick rubber sleeves exert vertical stiffness that causes weight measurement drift. SOSHH® PU05 features an ultra-flexible 0.5mm wall with low axial stiffness, absorbing machine vibration without exerting parasitic forces on sensitive load cells.

Q: Are these connectors safe for explosive powder atmospheres (ATEX zones)?

A: Yes. For ATEX Zone 20, 21, and 22 hazardous environments, specify our PUAS material grade. Formulated with surface resistivity under 10^9 Ω, it continuously bleeds off electrostatic charges to prevent dust explosion risks.

Q: What is the lead time for non-standard spigot diameters?

A: Standard spigots (DN100 to DN300) ship from stock. Custom spigot diameters (from 100mm to 800mm) and non-standard collar lengths are prototyped within 48 hours and shipped globally via DHL/FedEx within 7–14 days.

🛠️ B2B Engineering Services & Plant Support

CAD 3D STEP Models Available: Designing a new sifter or hopper line? Contact our engineering desk at soshh.com to request 3D STEP files and CAD drawings for instant assembly into your SolidWorks / AutoCAD designs.
Free Engineering Sample Express: We provide free test samples for OEM machine builders and plant trial runs. Dispatched via DHL Express within 24 hours.
Flexible MOQ & Global DDP Terms: No strict Minimum Order Quantity (MOQ). DDP (Delivered Duty Paid) shipping available directly to your factory door in North America, Europe, and Australia.

Conclusion & Actionable Next Steps

Eliminate line downtime, powder leakage, and regulatory compliance risks with SOSHH® SF Internal Snap-In Flexible Connectors.
