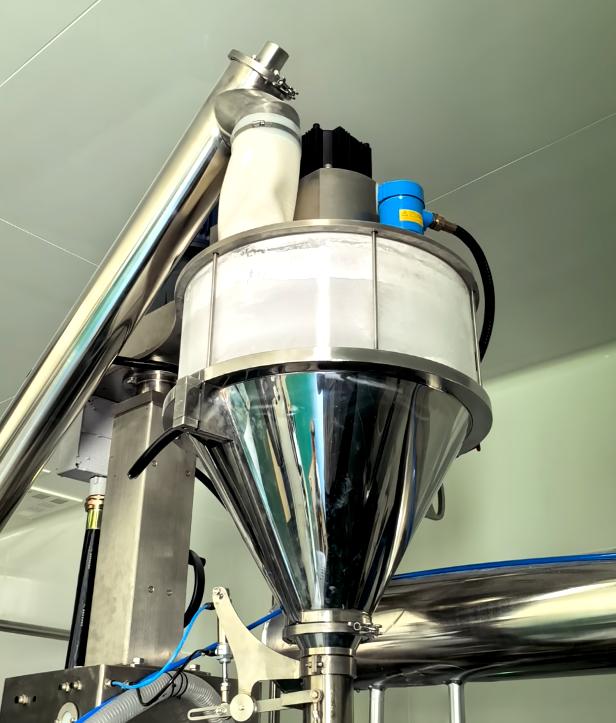

1. The Engineering Challenge: Screener-to-Hopper Misalignment & Vibration

In sanitary powder processing lines across pharmaceutical, food, battery materials, and specialty chemical facilities, transferring bulk solids from a rotary vibrating screener to an auger filling hopper or inclined screw conveyor presents severe mechanical and containment hurdles.

Common Cleanroom Failure Points:

• Multi-Axis Dynamic Fatigue: Rotary and gyratory screeners generate continuous 3D orbital vibrations. Conventional fabric, canvas, or standard rubber sleeves quickly tear at the seams.
• Eccentric & Axial Misalignment: Discharge nozzles rarely line up perfectly with downstream receiving spigots in tight cleanroom layouts, creating high shear stress on the flexible joint.
• Dead Zones & Powder Accumulation: Traditional hose-clamp fittings create internal folds where fine powders accumulate, risking microbial growth and cross-contamination.
• Negative/Positive Pressure Surges: Airflow from pneumatic transfer or dust extraction systems often causes thin sleeves to collapse under vacuum or blow dust into cleanroom air.

2. Key Technical Advantages of SOSHH TPU Flexible Connectors

• 100% Dust-Tight & Sanitary Compliant: Molded from premium virgin polyurethane meeting FDA 21 CFR 177.2600 and EU food contact standards.
• Continuous Vibration Isolation: High elastic memory (Shore 85A/90A) absorbs severe multi-axis vibration without transmitting stress to static equipment.
• High Optical Clarity: Crystal-clear transparent walls allow operators to inspect material flow in real time without stopping production.
• Superior Wear Life: Provides 5 to 8 times higher abrasion resistance than standard rubber, silicone, or canvas bellows.
• Tool-Free Installation: Engineered for snap-in or quick-release connections, cutting changeover time from 30 minutes to under 30 seconds.

3. Engineering Specifications & Sizing Matrix

• Available Diameters: DN50 to DN600 mm (Custom square-to-round and eccentric shapes available)
• Wall Thickness: 0.5mm (Ultra-flexible), 1.0mm (Standard transfer), 1.5mm / 2.0mm (Heavy-duty vacuum/abrasion)
• Operating Temperature: -30°C to +90°C (Intermittent up to +110°C)

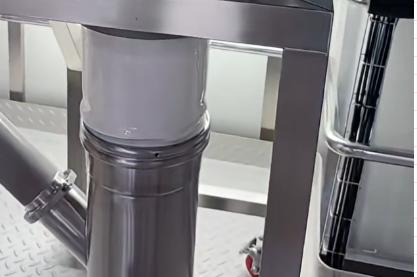

• Pressure Resistance: -0.4 bar (Standard) / up to -0.8 bar (Reinforced with stainless steel anti-collapse rings)
• Safety & Compliance: SGS Certified FDA Compliant, ATEX Antistatic surface resistivity available (10^6 to 10^9 Ohms)

4. Cleanroom Retrofit Case Study

• Application: High-purity pharmaceutical powder dosing line.
• Equipment: 800mm Rotary Screener connected to an automated stainless steel dosing station.
• Previous Issue: Clamped canvas sleeves leaked powder every 3 days due to eccentric vibration, contaminating the cleanroom.
• The SOSHH Solution: Installed a custom 1.0mm FDA-grade transparent TPU sleeve with sanitary quick-release ends.
• Results:Zero powder leakage over 6 months of continuous 24/7 operation.Airborne particle count dropped by 94% around the packaging station.Annual maintenance and replacement costs reduced by 60%.

5. Frequently Asked Questions (FAQ)

Q: How do I calculate the correct sleeve length for an eccentric vibrating screener?

A: Measure the static center-to-center distance between the screener outlet and the receiving hopper at rest, then add the maximum vibration stroke amplitude plus a 10% to 15% flex margin.

Q: Can these TPU sleeves handle negative pressure from dust extraction systems?

A: Yes. For high negative pressure systems, SOSHH provides sleeves reinforced with integrated stainless steel support rings or embedded spiral wire to prevent collapse.

Q: Does SOSHH provide official FDA compliance documentation?

A: Every order is accompanied by official SGS FDA test reports and a Certificate of Conformity (COC) for your validation records.
