Can powder processing plants replace traditional hose clamp connectors with a sealed, tool-free snap-in system to meet FDA and ATEX standards?

Yes. The snap-in cuff-and-spigot system replaces hose clamps with an HF-welded polymer sleeve that snaps over stainless steel spigots, forming a 360° dust-tight, crevice-free seal with no tools. Food-grade sleeves are compliant with FDA 21 CFR 177.2600 (Report TQT4821B36E) and EU 10/2011; the static-dissipative grade (PU-10-AS) meets ATEX Directive 2014/34/EU for Zones 20, 21 and 22 (IEC 60079-32-2).

Can SOSHH® manufacture custom square-to-round, conical, and eccentric offset flexible sleeves without tooling fees?

Yes. Square-to-round, conical and eccentric offset sleeves are engineered as complete sleeve-plus-spigot assemblies. Standard sizes carry no tooling fee; complex custom geometries may carry a one-time sample/tooling fee that is 100% credited toward your first bulk order exceeding $3,000.

When should plants choose CNC-machined PTFE bellows over polyether TPU flexible connectors?

Choose CNC-machined pure PTFE bellows (continuous -70 to +260 °C, peak +280 °C, pH 0-14) for strongly corrosive acids, alkalis, solvents, or continuous temperatures above +150 °C. Choose polyether TPU (continuous -20 to +110 °C, peak +120 °C) for abrasive, high-flex powder and sifter duty, where its superior abrasion resistance and flexibility outperform PTFE.

What quality compliance certificates (DoC, FDA, EU 10/2011) are provided with SOSHH® shipments?

Each order ships with a Declaration of Conformity, FDA 21 CFR 177.2600 test report (Ref TQT4821B36E) for PU sleeves, EU 10/2011 / EC 1935/2004 formulation compliance, and an EN 10204 3.1 material test certificate for stainless steel spigots.

Why choose Polyurethane (TPU) over traditional Silicone or Rubber for powder flexible connectors?

Polyether TPU offers roughly 10x the abrasion resistance of rubber (39.0 mg DIN abrasion), 40 MPa tensile strength, ~600% elongation, and superior flex-fatigue life versus silicone. It is transparent for visual flow verification, latex-free, and FDA-compliant, making it the default for food and powder handling.

How do SOSHH® anti-static connectors (PUAS) perform in ATEX explosive dust zones?

The anti-static sleeve (PU-10-AS) is inherently static-dissipative polyether TPU with 10^6-10^9 Ω surface resistivity and no internal wires. It dissipates charge through the material itself, tested per IEC 60079-32-2 for ATEX Zones 20, 21 and 22 (Directive 2014/34/EU), removing the need for grounding straps across the joint.

Do flexible connectors skew the accuracy of load cells and loss-in-weight feeders?

The PU-05-WB ultra-thin (0.5 mm) micro-convolution weighing bellow is engineered for near-zero parasitic tare force, so it does not pull on load cells or distort weight readings in loss-in-weight and dosing applications.

Can SOSHH® flexible sleeves withstand negative pressure (vacuum) in pneumatic conveying systems?

Yes. PU-10 handles -50 mbar and PU-15 handles -120 mbar. For full vacuum to -1000 mbar, specify PU-10-VR, which has non-metallic high-elasticity polymer rings in HF-welded external pockets to prevent collapse while remaining metal-detector transparent.

How do snap-in connectors perform on high-frequency vibratory sifters and screeners?

They isolate sifter vibration from rigid pipework, preventing fatigue cracks and leakage. Set the installation gap with 10-15% extra slack to avoid cuff bunching and tearing at full amplitude, and select the abrasion-matched wall thickness (PU-10 or PU-15) for the duty.

How does the SOSHH® design prevent powder bridging and blockages in gravity chutes?

The smooth, crevice-free HF-welded bore and correct taper/conicity eliminate ledges and dead zones where powder can accumulate, bridge or block. Transparent TPU also lets operators visually detect buildup before it becomes a blockage.

How do SOSHH® tool-free connectors shorten CIP/SIP washdowns and equipment downtime?

The tool-free snap-in cuff removes and refits in under 60 seconds, eliminating clamp disassembly. The zero-crevice HF-welded bore drains cleanly with no hidden bacteria zones, and the CIP hydrolysis-resistant grade with electro-polished spigots withstands daily hot caustic CIP at 85 °C.

What is the continuous operating temperature limit for SOSHH® TPU connectors?

Standard polyether TPU runs continuously at -20 to +110 °C with a short peak of +120 °C. High-temperature PU (PUHT) runs -20 to +150 °C continuous with a +165 °C short-term peak. Above +150 °C continuous, use CNC-machined pure PTFE (-70 to +260 °C continuous).

Are SOSHH® snap-in flexible sleeves cross-compatible with standard industry quick-connect spigot grooves?

SOSHH sleeves are engineered to match our spigot profiles precisely. Cross-compatibility with other spigot profiles cannot be guaranteed; send your spigot drawing and we will confirm fit or supply matched spigots.

What makes SOSHH® connectors superior to standard off-the-shelf quick-connect brands?

HF-welded external pockets and a polymer snap-band system (instead of integrally molded wire) deliver a crevice-free, single-homogeneous-wall seal, 40 MPa tensile strength, ~600% elongation, transparent flow visibility, and a full compliance pack (FDA, EU 10/2011, ATEX) at drop-in prices with no custom tooling fee.

Does SOSHH® provide 3D CAD models and technical drawings for OEM equipment design?

Yes. We provide watermarked 2D outline PDFs immediately, and 3D CAD models or proprietary data upon signing an NDA/NNN agreement. Provide your equipment interface dimensions and we return OEM integration drawings.

What is the standard production lead time, MOQ, and international shipping support for SOSHH® connectors?

Lead time and MOQ depend on whether the part is a standard matrix size or a custom sleeve/spigot; exact values are confirmed in the quotation with payment milestones. We support FOB and DAP international shipping worldwide.

What documentation do you provide for ATEX zones?

For ATEX applications we provide the IEC 60079-32-2 static-dissipative test documentation and confirmation of compliance with ATEX Directive 2014/34/EU for Zones 20, 21 and 22. A full ATEX risk assessment of the entire line remains the end user's responsibility.

Why do flexible sleeves tear at the clamp edges on vibratory sifters?

Clamp edges create localized stress concentration under high-frequency dynamic shear, and an incorrect installation gap adds tension at full amplitude. The snap-in cuff distributes load evenly around the circumference and, with the correct IG, removes the clamp-edge failure point.

Do I need a gasket with a snap-in flexible connector?

No. The elastic cuff forms a 360° radial compression seal directly against the spigot, so no separate gasket is required. This eliminates a leak path and a spare-part item.

How do I measure the installation gap for a flexible connector?

IG is the distance between the two spigot end faces once the sleeve is fitted. Measure spigot OD (ØD) and sleeve length (CL), then set IG approximately equal to CL minus one cuff depth per end, adding 10-15% for vibratory service. Send us ØD and CL for a confirmed part number.

Which material should I choose for a food-contact powder line?

Polyether TPU (PU-10) is the default - transparent, FDA 21 CFR 177.2600 compliant, EU 10/2011 formulated, and latex-free. For abrasive food powders use PU-15; for daily hot caustic CIP use the CIP hydrolysis-resistant grade.

How abrasion-resistant is the polyether TPU sleeve compared to rubber and silicone?

Polyether TPU measures 39.0 mg (DIN abrasion) and offers roughly 10x the abrasion resistance of rubber, with far higher tear strength and flex-fatigue life than silicone - the reason it is the default for abrasive powder duty.

How long do SOSHH TPU sleeves last compared to silicone or rubber?

TPU typically outlasts rubber by roughly 10x and silicone by a wide margin in abrasive powder service. Actual life depends on powder abrasiveness, temperature, vibration amplitude and installation gap - correct IG and material grade are the two biggest levers.

Are SOSHH connectors compatible with CIP cleaning chemicals?

Yes. The zero-crevice HF-welded bore drains cleanly and resists standard CIP chemistry. For daily hot caustic CIP at 85 °C and aggressive washdown, specify the CIP hydrolysis-resistant grade with zero-hole electro-polished spigots.

When should a flexible connector sleeve be replaced?

Replace the sleeve when you observe surface cracking, hardening, thinning, loss of transparency, or the onset of powder leakage at the cuff. As a rule, schedule inspection at each screen change or CIP cycle and replace proactively before failure.

What are the standard diameter and length ranges?

Standard diameters run Ø102-Ø804 mm across a 20-size matrix, with lengths 100-1000 mm in 50 mm increments. Custom diameters up to Ø1000 mm and non-standard lengths are available.

What is the difference between PU-10 and PU-15 sleeves?

PU-10 is a 1.0 mm wall sleeve rated +0.35 bar / -50 mbar for general food and powder duty. PU-15 is a 1.5 mm wall sleeve (50% thicker) rated +0.70 bar / -120 mbar for abrasive powders and higher positive-pressure duty.

What is the anti-static grade and how does it work?

The PU-10-AS grade is inherently static-dissipative polyether TPU with 10^6-10^9 Ω surface resistivity and no internal wires. Charge bleeds away gradually through the material itself, removing the need for grounding straps across the joint.

When should I choose pure PTFE instead of TPU?

Choose pure PTFE (pH 0-14, -70 to +260 °C continuous, +280 °C peak) for strongly corrosive acids, alkalis, solvents, or continuous temperatures above +150 °C. TPU (peak +120 °C) is better for abrasive, high-flex powder duty.

What materials are available besides TPU?

Four core materials: polyether TPU (standard), pure PTFE (corrosive/high-temperature), food-grade silicone (high-temp, low-abrasion), and EPDM/NBR rubber (industrial dust ducting). TPU is the default for food and powder handling.

What is the maximum sleeve length for a given diameter?

Standard length runs to 1000 mm. Longer sleeves or large-travel coordination are engineered case-by-case; for large swing use the fiber-reinforced or spiral-wire grade.

Are snap-in connectors suitable for dairy and milk powder?

Yes. The transparent polyether TPU sleeve, FDA 21 CFR 177.2600 compliance and zero-crevice CIP-compatible bore make it a drop-in for milk powder sifter, dryer and packing lines.

Are they suitable for battery materials and flammable powders?

Yes. The PU-10-AS static-dissipative grade (10^6-10^9 Ω) is specified for lithium battery powder and combustible dusts, meeting ATEX Zone 20/21/22 static-control requirements (IEC 60079-32-2).

Can they handle chemical and corrosive powders?

Yes. For strong acids, alkalis and solvents specify pure PTFE (pH 0-14, -70 to +260 °C). For mild or abrasive chemical powders, the heavier-wall PU-15 is typically the economical choice.

What is the difference between conductive and static-dissipative?

Conductive materials (<10^4 Ω) discharge charge abruptly and can create sparks; static-dissipative materials (10^6-10^9 Ω) bleed charge away gradually and safely - exactly what combustible-dust handling requires.

Do I need a grounding strap across the joint?

Not with the PU-10-AS grade - charge dissipates through the connector material itself, so no metal braid or grounding strap is needed. Standard non-dissipative sleeves may require external grounding for combustible powders.

Will the sleeve trigger my inline metal detector?

The product-contact bore contains no embedded metallic elements, so the sleeve itself will not cause false rejects. Confirm the complete assembly including spigots with your equipment supplier for the full detector configuration.

How do I weld the spigot to my equipment?

Spigots are supplied weld-on (SS304 or SS316L) with a straight tail that can be field-cut to match existing pipe. Each order ships with an EN 10204 3.1 material test certificate and a welding/positioning guideline.

Can I cut the spigot tail to fit my existing pipe?

Yes. The straight tail section is designed to be trimmed on-site to the required angle and length before welding, so you can retrofit onto existing hoppers and conveyors without re-engineering the outlet.

Does sleeve orientation matter?

For standard straight sleeves there is no directional flow preference. For tapered, square-to-round or anti-static sleeves, orientation markings are provided on the cuff and must be observed during fitting.

How long does it take to install a snap-in connector?

Under 60 seconds per end, tool-free. Once the spigots are welded in place, replacing a worn sleeve is a pull-off / snap-on operation production staff can do during a line stop.

Does the TPU contain latex, BPA or phthalates?

No. The sleeves are 100% virgin polyether TPU - latex-free, BPA-free and phthalate-tested. Phthalate, nonylphenol and BPA test reports are available on request.

What is the surface resistivity of standard vs anti-static sleeve?

Standard TPU is insulative at >10^12 Ω. The anti-static PU-10-AS grade is static-dissipative at 10^6-10^9 Ω.

Do you offer free samples?

Standard samples ship freight collect. Custom samples carry a tooling fee that is 100% credited toward your first bulk order exceeding $3,000.

How do I request a quotation?

Send your spigot diameter (ØD), sleeve length (CL), quantity, and your equipment brand/model - or a drawing - to amin@soshh.com. We return a same-day quotation with HS code (3926909090 / 7326901900), country of origin, material spec, tolerances, lead time and payment terms.

SOSHH Technical Bulletin: Polymer-Reinforced Flexible Connectors (100% Tool-Free & Metal Detector Safe)

By SOSHH Engineering Team
Engineering Guides
Tuesday, September 8, 2026

Facebook Twitter Pinterest

SOSHH Technical Bulletin: Polymer-Reinforced Flexible Connectors (100% Tool-Free & Metal Detector Safe)

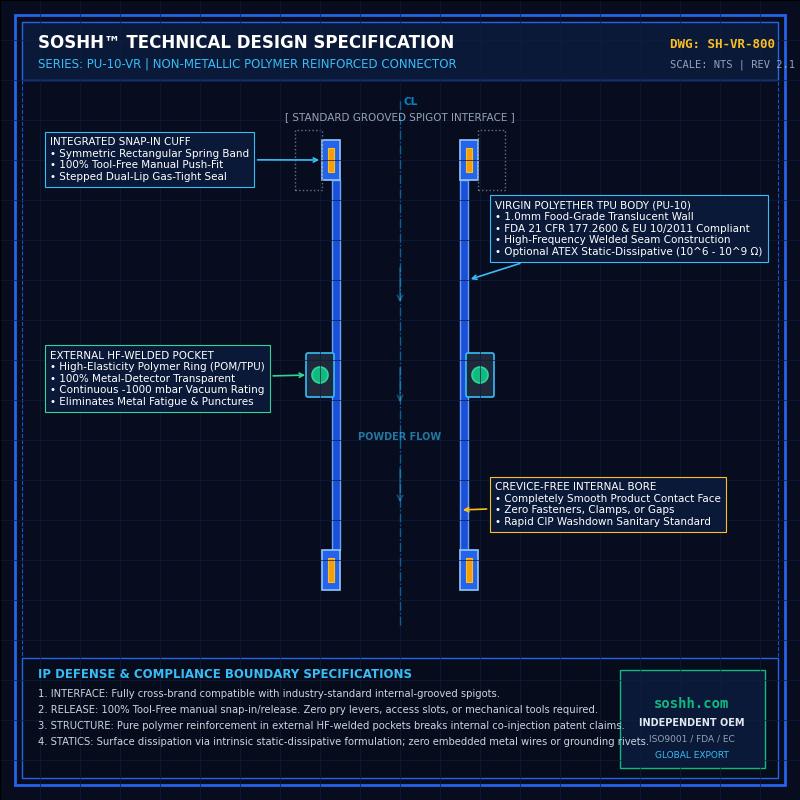

Engineering schematic of SOSHH PU-10-VR polymer-reinforced flexible connector with external HF-welded pockets and tool-free snap-in cuff.

Background & Structural Limitations of Conventional Assemblies

In industrial powder transfer and vibratory sifting processes, standard flexible sleeves utilizing internal encapsulated stainless steel rings or rigid mechanical grounding elements present three major operating risks:

Metal Fatigue & Wall Puncture: Continuous high-frequency oscillation (1440+ rpm) subjects metallic ring weld points to flexural fatigue, frequently causing sharp fracture points that puncture sleeve walls.
Inline Quality Inspection Tripping: Internal metallic components generate electromagnetic interference, triggering false rejections across inline industrial metal detectors and X-ray sorting systems.
Complex Maintenance & Gasket Abrasion: Connector variants requiring external pry levers or spigots with notched release slots often lead to scratched sealing faces and mechanical deformation during routine sanitation.

Proprietary Engineering Breakthroughs & original engineering Architecture

To establish an open-architecture, maintenance-free standard, SOSHH has deployed a fully non-metallic, modular structural layout across our PU-10-VR series and PU-10-AS ATEX series

Engineered Polymer Reinforcement Rings (POM / High-Shore TPU)

Internal metallic rings are eliminated and superseded by solid, fatigue-resistant engineering polyoxymethylene (POM) rings. This provides continuous elastic spring-back, withstanding differential negative pressures down to -1000 mbar without flow-channel constriction, a standard feature in our vacuum-rated flexible connectors

HF-Welded External Encasement Pockets

Rather than in-mold internal overmolding, polymer rings are housed in dedicated annular pockets formed on the sleeve's exterior surface via precision industrial high-frequency (HF) welding. The primary product-contact bore remains 100% monolithic and free of crevices, meeting stringent sanitary bulk material handling requirements

100% Tool-Free Manual Snap Assembly

The retaining cuffs integrate standard rectangular-section spring steel bands. Installation and extraction are accomplished by manual radial compression within 10 seconds—entirely independent of screwdrivers, pry tools, or spigot release slots.

Interface Compatibility & Legal Notice

SOSHH snap-in connectors are independently engineered for direct dimensional compatibility with industry-standard internal-grooved sanitary spigots. All designs rely strictly on public-domain radial expansion geometry, material-science static control, and visible high-frequency seam construction.

For detailed specifications or custom offsets, consult our engineering team on the Contact Us
