SOSHH® Food-Grade HC Hose Clamp Flexible Connector | PU Vibratory Sieve Sleeves for Bulk Solids
⚡ Quick Engineering Summary (At-A-Glance):Installation Type: External slip-on fit over rigid pipe O.D., locked with heavy-duty BHC or standard worm-gear hose clamps.Material Integrity: 100% Ether-based TPU/PU, FDA 21 CFR 177.2600 & EC 1935/2004 compliant.Working Temperature: Standard -20°C to +110°C (Intermittent +120°C); High-Temp PUHT up to +150°C.Explosion Safety: Anti-static options available with surface resistivity Rs < 10⁹ Ω (ATEX Zone 20/21/22 rated).Key Advantage: Zero equipment modification required. Fits existing pipeline exterior seamlessly.
High-Performance Food-Grade Flexible Connectors for Powder Processing
The SOSHH® HC-Series (Hose Clamp Style) flexible connector is engineered for sanitary, dust-tight, and high-vibration powder handling applications. Designed to slip directly over the outer wall of existing metal piping or equipment spigots, the HC series eliminates the cost and downtime of welding specialized flanges or ferrules.
Whether installed under vibratory screeners, gyratory sifters, rotary valves, or weigh hoppers, our 100% ether-based polyurethane (PU) construction guarantees superior tear resistance, high flexibility, and complete compliance with global food safety standards.
![SOSHH HC-series food-grade hose clamp flexible polyurethane connector overview banner]()
SOSHH® HC-Series Flexible PU Hose Clamp Connector
SOSHH® HC-Series sanitary flexible polyurethane connector fitted with heavy-duty BHC clamps.
Core Engineering Features & Key Benefits
- Tool-Free & Economical Retrofit: Fits directly onto existing smooth pipe ends. Secured using standard worm-gear throat rings or heavy-duty BHC band clamps without altering current plant piping.
- 100% Sanitary Internal Surface: Features smooth, crevice-free interiors and molded end sealing rings that prevent material trapment, cross-contamination, and bacteria buildup during Clean-in-Place (CIP) or dry CIP operations.
- Exceptional Fatigue & Abrasion Resistance: Boasting an elongation at break of 600%, SOSHH® PU sleeves withstand continuous high-frequency vibration from sieves and gyratory separators without cracking or tearing.
- Explosion & Static Hazard Protection: Available in specialized ATEX-compliant anti-static polyurethane (Rs < 10⁹ Ω), preventing static charge accumulation during hazardous dry powder conveyance.
🔄 Real-World Plant Retrofit: Upgrading Canvas Sleeves to SOSHH® Hygienic PU
See how leading pharmaceutical and bulk chemical processors eliminate powder contamination and maintenance downtime by replacing traditional canvas sleeves with SOSHH® food-grade polyurethane connectors:

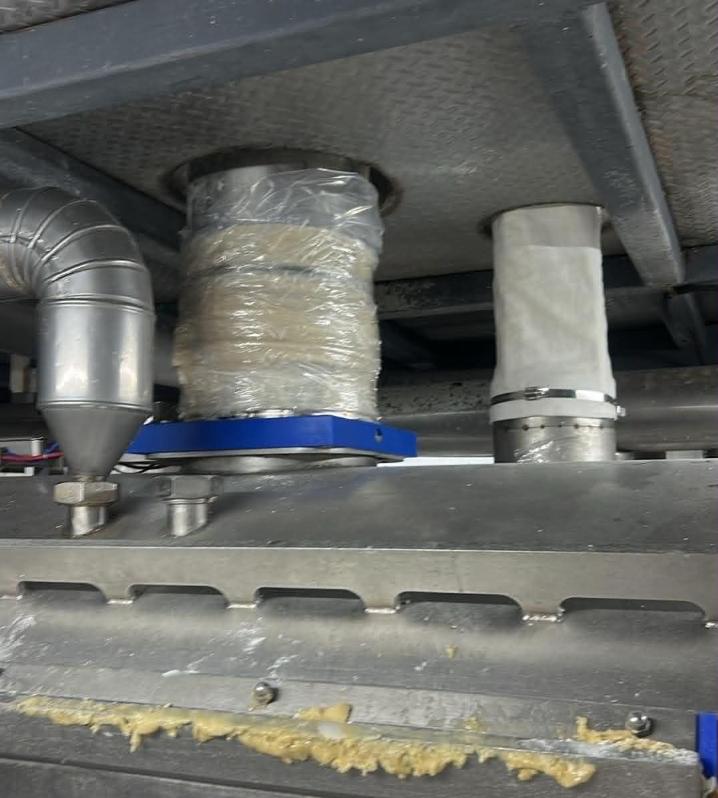

![Traditional canvas flexible joint wrapped with tape showing severe dust buildup, hygiene risks, and maintenance hassle]()
Traditional Canvas Flexible Joint Field Issue & Leakage
Figure A (BEFORE): Traditional canvas joints clog, leak fine powder, require messy tape wrapping, and fail food safety audits.
![SOSHH food-grade transparent polyurethane flexible connector cleanly installed on pharmaceutical dosing equipment]()
SOSHH® Hygienic Flexible PU Connector Cleanroom Installation
Figure B (AFTER): SOSHH® transparent PU connector provides 100% dust-tight sealing, smooth crevice-free flow, and full process visibility.
![SOSHH flexible connector features, installation diagram, and complete polyurethane PU material specification matrix]()
- Product Features, Tool-Free Installation & PU Specification Matrix
- Comprehensive product feature callouts, connection mechanism diagram, and material specification summary.
Complete Material Specification Matrix
Select the ideal material grade based on your process media, operating temperature, and explosive dust zone classifications:
| Material Code | Base Material | Recommended Application | Color / Transparency | Thickness | Temperature Range | Surface Resistivity (Rs) | Food Grade Compliance |
| PU10 | Polyurethane (PU) | General bulk solids handling | Clear / Transparent | 1.0 mm | -20°C to +110°C | > 10¹² Ω | FDA / EC Compliant |
| PU05 | Polyurethane (PU) | Precision weighing & metering | Clear / Transparent | 0.5 mm | -20°C to +110°C | > 10¹² Ω | FDA / EC Compliant |
| PUHT | High-Temp PU | High-temperature process lines | Clear / Transparent | 1.0 mm | -20°C to +150°C | > 10¹² Ω | FDA / EC Compliant |
| PUAS | Anti-Static PU | Flammable & explosive powders | Clear / Transparent | 1.0 mm | -20°C to +110°C | < 10⁹ Ω | FDA / ATEX Rated |
| PURF | Fiber-Reinforced PU | Positive & negative pressure systems | Translucent White | 0.8 mm | -20°C to +110°C | > 10¹² Ω | FDA / EC Compliant |
| PUFL | Steel Helix Wire PU | Dynamic stroke & alignment mechanisms | Translucent White | 0.6 mm | -20°C to +110°C | > 10¹² Ω | FDA / EC Compliant |
| TE02 | 100% Pure PTFE | Corrosive acids, bases & solvents | White | 0.2 mm | -40°C to +300°C | > 10¹² Ω | FDA / Chemical Inert |
| TE02AS | Anti-Static PTFE | High-temp corrosive chemical lines | Black | 0.2 mm | -40°C to +300°C | < 10⁶ Ω | ATEX / Chemical Inert |

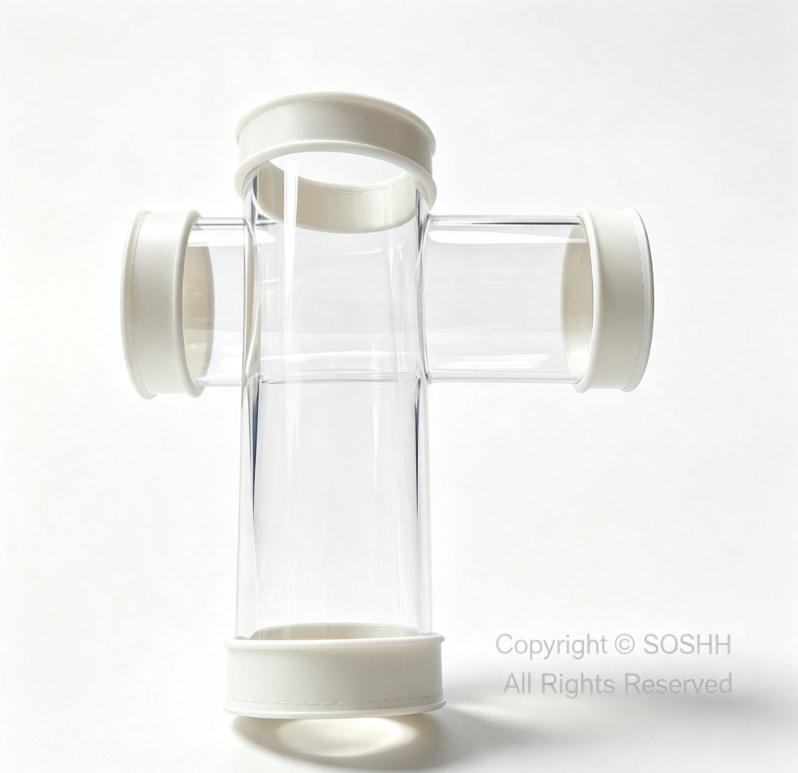

![SOSHH custom 4-way cross manifold flexible polyurethane connector for powder distribution]()
Custom 4-Way Cross Manifold PU Flexible Connector
Custom-engineered 4-way cross manifold flexible connector for complex powder distribution lines.
Field Issue vs. SOSHH® Polyurethane Solution
Why leading pharmaceutical, food, and lithium battery material plants are replacing traditional canvas and rubber sleeves with SOSHH® PU connectors:
| Plant Operating Challenge | Traditional Canvas / Rubber Hose | SOSHH® Polyurethane (PU) Solution |
| Dust Leakage & Hygiene Risks | Fabric weaves clog, leak fine powder, and foster microbial growth. | Seamless 100% airtight TPU construction with zero crevice traps; 100% CIP washdown safe. |
| Frequent Fatigue Tearing | Rubber hardens, cracks under flexure, causing line downtime. | High mechanical strength (Tensile = 40 MPa) and 600% elongation absorb multi-axis vibration. |
| Dust Explosion Hazards | Non-conductive rubber generates high electrostatic discharge. | ATEX-certified PUAS grade (Rs < 10⁹ Ω) safely dissipates static charges to ground. |
| Inaccurate Batch Weighing | Stiff heavy sleeves exert force on load cells, causing scale errors. | Ultra-flexible 0.5 mm (PU05) sleeves deliver near-zero resistance for precision weighing. |

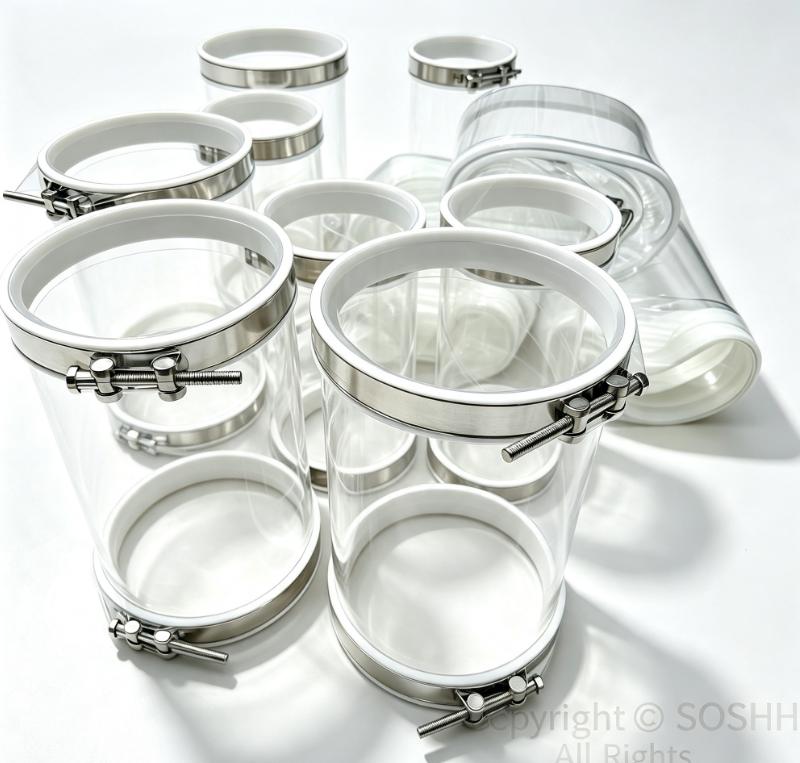

![Bulk supply of SOSHH transparent PU flexible connectors equipped with stainless steel heavy duty band clamps]()
Bulk Hose Clamp Style Flexible Polyurethane Connectors
SOSHH® HC connectors supplied with heavy-duty stainless steel BHC band clamps for leak-free sealing.
![SOSHH vacuum resistant transparent PU flexible sleeves fitted with stainless steel support rings and clamps]()
Vacuum-Reinforced PU Flexible Connectors with Stainless Support Rings
Vacuum-reinforced PU sleeves featuring stainless steel support rings for continuous negative pressure.
📐 2D Engineering Spec Sheet & Custom RFQ Worksheet Center
Need to replace a non-standard or worn-out canvas sleeve? You don't need complex CAD files to get started.
Simply take quick field measurements of your existing pipe or sleeve (as shown in Figure C below), download our standardized 2D Dimensional RFQ Worksheet, and send us the parameters for an instant engineering quote.

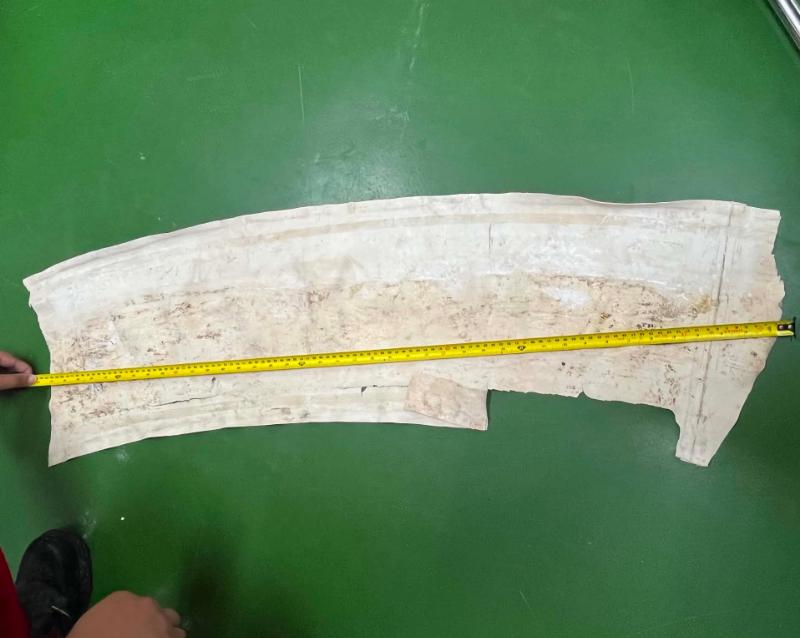

![Measuring worn-out traditional canvas sleeve on plant floor for custom SOSHH PU flexible connector retrofit]()
- Title: Field Retrofit Service: Measuring Old Sleeve Dimensions
- Caption: Figure C: Easy field measurement — measure your worn sleeve's total length and flat/outer diameter to request a custom PU replacement.

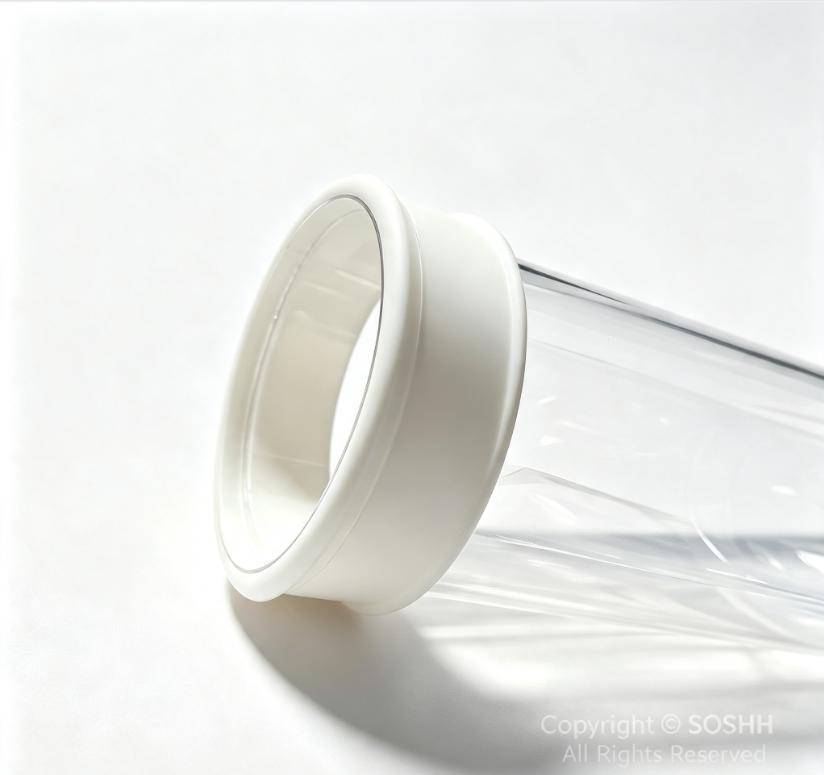

![Close-up detail of SOSHH snap-in hygienic cuff and integrated sealing band for dust-tight pipeline connection]()
- Title: Snap-In Cuff & Integrated Gasket Sealing Detail
- Caption: Figure 7: Precision molded cuff detail providing airtight compression over rigid metal pipe ends.
Frequently Asked Questions (FAQ)
Q1: How do I select the correct diameter for an HC hose clamp connector?
A: Measure the Outer Diameter (O.D.) of your existing rigid pipe or equipment spigot using a caliper. SOSHH® HC connectors are sized according to the pipe O.D. to ensure a precise, airtight slip-on fit.
Q2: Can these flexible connectors handle CIP (Clean-In-Place) washdowns?
A: Yes. Our 100% ether-based polyurethane (PU10, PU05, PUHT) resists hot water hydrolytic degradation and standard CIP sanitizing agents up to +110°C.
Q3: Are 3D CAD STEP files available for plant equipment designers?
A: Absolutely. We provide free 3D STEP models and 2D CAD drawings for all standard pipe diameters. Contact our engineering desk at amin@soshh.com or download the technical pack above.
Q4: What is the lead time for custom diameters or non-standard lengths?
A: Standard sizes ship within 24 hours. Custom diameters, eccentric reducers, or specific lengths are manufactured within 48 hours and shipped globally via DHL/FedEx Express (7–14 days door-to-door, DDP available).
Conclusion & Direct Engineering Inquiry
Eliminate dust leaks, unexpected downtime, and compliance risks with SOSHH® HC-Series Hose Clamp Flexible Connectors.
