HC Series Silicone Weighing Flexible Connector for Loss-in-Weight Feeders

Application: Engineered for loss-in-weight (LIW) feeders, load cell hoppers, gravimetric blenders, and micro-dosing scales.

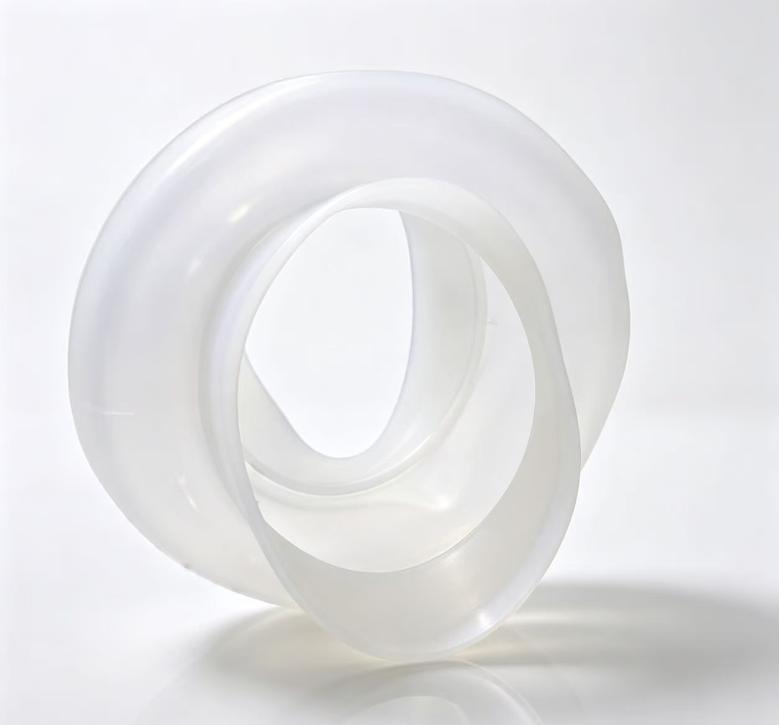

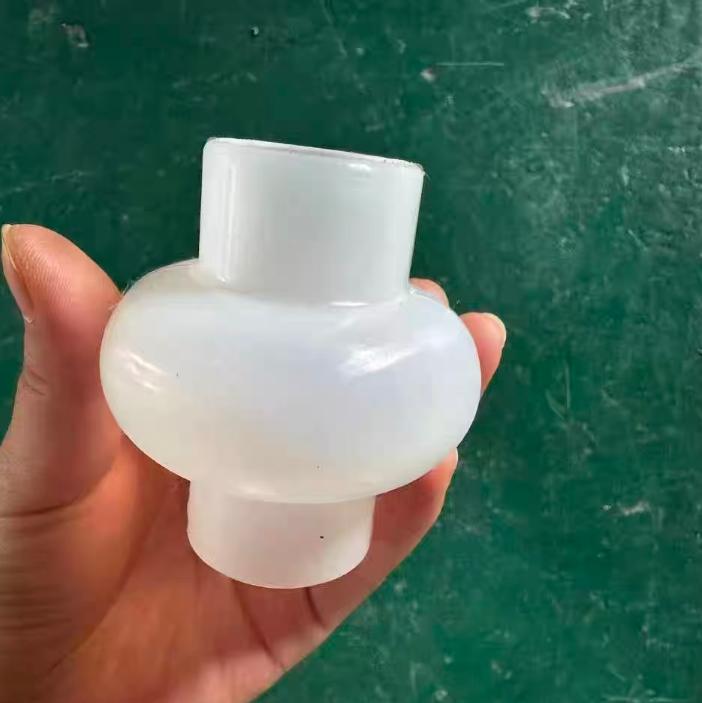

One-Piece Molded & Seamless: 100% integral compression-molded construction with zero glued seams or weld joints—eliminating powder traps, bacterial harborage, and seam splitting under continuous vibration.
Zero Tare Interference: Ultra-flexible 0.8–1.0 mm thin belly profile (or standard 2.0 mm molded arch) decouples mechanical vibration and eliminates parasitic tare forces for maximum gravimetric precision.
Secure Clamp Connection: Reinforced 2.0 mm straight slip-on cuffs ensure tear-resistant, leak-free installation using standard stainless steel worm-gear or T-bolt hose clamps.
Verified Food-Grade Compliance: Formulated with high-purity silicone elastomer compliant with FDA 21 CFR 177.2600 (SGS Report No. TSNEC25003876901 — Distilled Water Extractives: ND) and GB 4806.11-2016 (-50°C to +200°C, CIP-ready).

Material Selection Guide: Food-Grade Silicone vs. Polyether TPU

Material OptionManufacturing ProcessFlexibility & Parasitic ForceAbrasion ResistanceTemperature RangeBest Application
Food-Grade Silicone (This Product)One-Piece Molded (Seamless)Ultra-Flexible / Lowest Force (Best for Weighing)Low to Moderate-50 deg C to +200 deg C (-58 deg F to +392 deg F)High-precision loss-in-weight feeders, sanitary food & pharma powder weighing, CIP/SIP zones
Polyether TPU (Alternative)High-Frequency Welded / MoldedHigh Flexibility / Low ForceOutstanding-20 deg C to +110 deg C (-4 deg F to +230 deg F)Abrasive bulk solid weighing (e.g., crystalline sugar, minerals, plastic pellets)

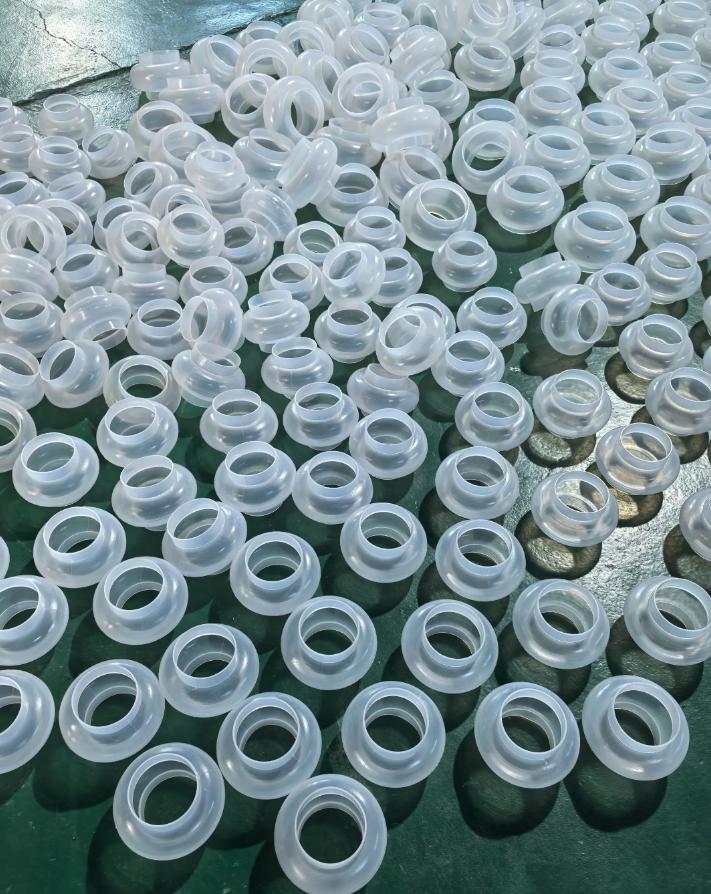

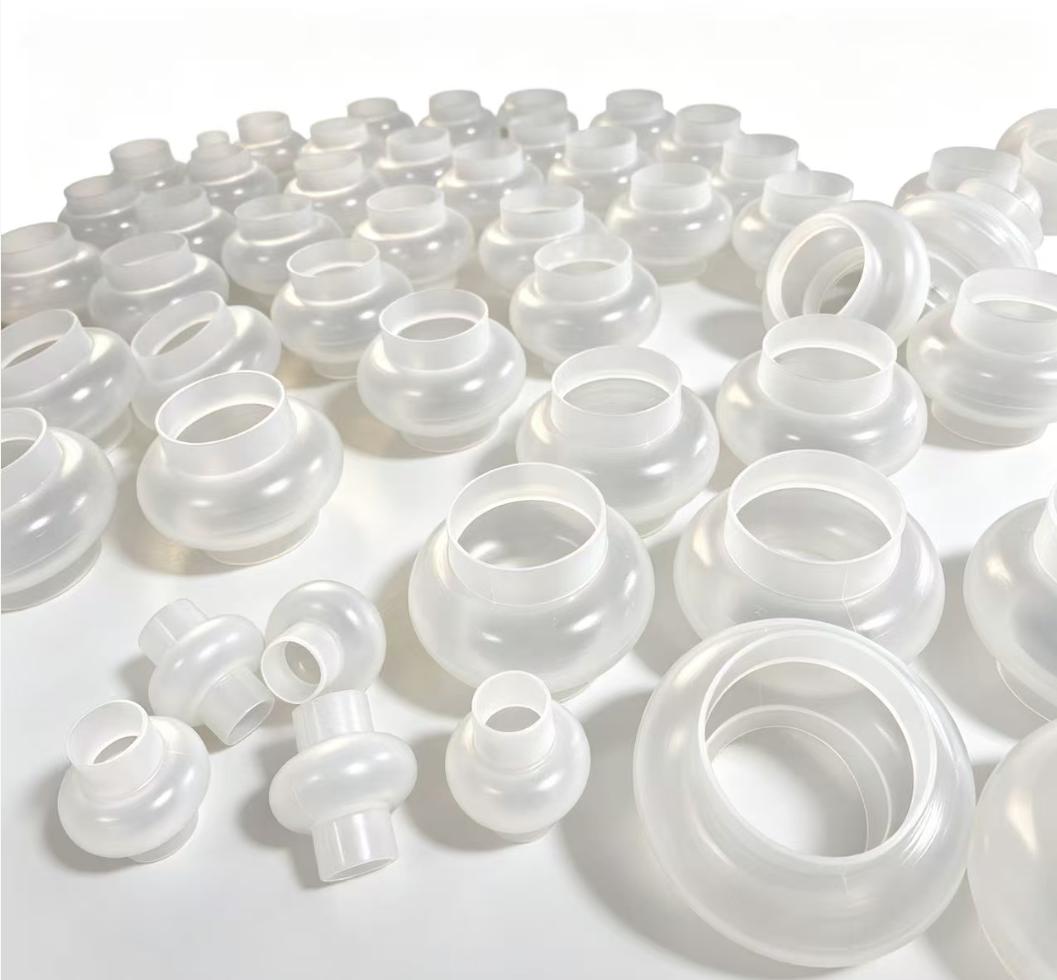

Standard Molded Dimensions (Over 60 In-Stock Molds, Zero Tooling Cost)

Slip-on straight cuffs are designed to fit directly over your existing metal pipe Outer Diameter (OD). Over 60 standard compression-molded sizes are available for immediate production with zero mold fees. Custom lengths, wall thicknesses, and tapered reducers are available upon request.

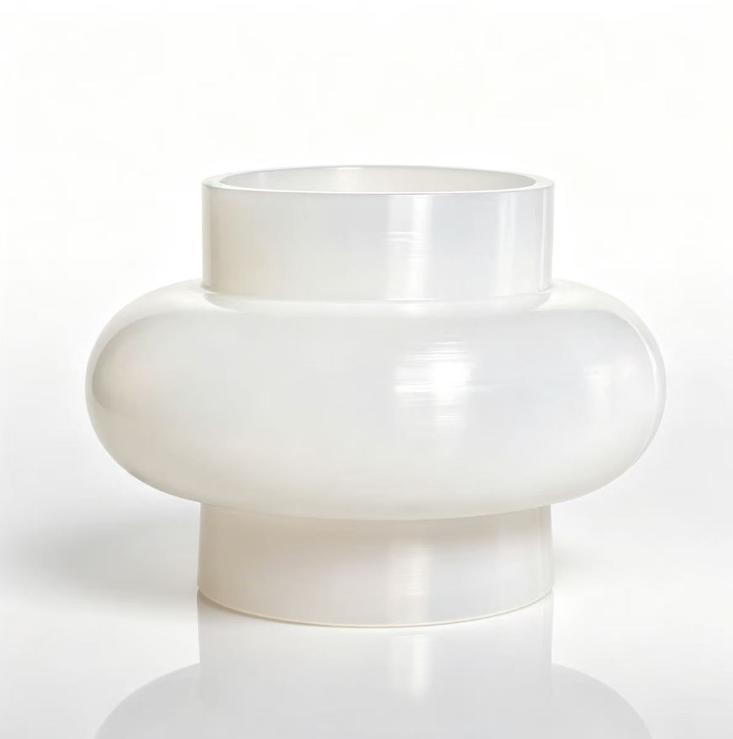

1. Single-Arch Lantern Bellows Series (ID 25 mm to 320 mm)

Fit Pipe OD / Connector ID (mm)Standard Total Length L (mm)Belly Wall Thickness (mm)Reinforced Cuff Thickness (mm)Recommended Cuff Clamping Length (mm)
ID 25 mm90 mm1.0 mm or 2.0 mm2.0 mm20 - 25 mm
ID 30 mm70 mm1.0 mm or 2.0 mm2.0 mm20 - 25 mm
ID 37 mm40 mm1.0 mm or 2.0 mm2.0 mm15 - 20 mm
ID 38 mm (1.5 inch)90 mm / 150 mm1.0 mm or 2.0 mm2.0 mm25 - 30 mm
ID 46 mm60 mm1.0 mm (Ultra-Thin Belly)2.0 mm20 - 25 mm
ID 50 mm (2 inch)90 mm / 150 mm1.0 mm or 2.0 mm2.0 mm25 - 30 mm
ID 60 mm90 mm / 120 mm / 200 mm1.0 mm or 2.0 mm2.0 mm30 mm
ID 65 mm (2.5 inch)120 mm / 150 mm1.0 mm or 2.0 mm2.0 mm30 mm
ID 70 mm90 mm1.0 mm or 2.0 mm2.0 mm30 mm
ID 75 mm (3 inch)120 mm1.0 mm or 2.0 mm2.0 mm30 mm
ID 80 mm170 mm1.0 mm or 2.0 mm2.0 mm30 - 35 mm
ID 89 mm (3.5 inch)100 mm / 110 mm / 120 mm / 200 mm1.0 mm or 2.0 mm2.0 mm30 - 40 mm
ID 100 mm (4 inch)100 mm / 110 mm / 120 mm / 200 mm1.0 mm or 2.0 mm2.0 mm30 - 40 mm
ID 108 mm100 mm / 200 mm1.0 mm or 2.0 mm2.0 mm30 - 40 mm
ID 114 mm (4.5 inch)110 mm / 150 mm / 200 mm1.0 mm (Ultra-Thin) or 2.0 mm2.0 mm40 - 50 mm
ID 120 mm150 mm1.0 mm or 2.0 mm2.0 mm35 - 45 mm
ID 125 mm (5 inch)100 mm / 200 mm1.0 mm or 2.0 mm2.0 mm35 - 45 mm
ID 133 mm120 mm1.0 mm or 2.0 mm2.0 mm35 - 45 mm
ID 140 mm110 mm1.0 mm or 2.0 mm2.0 mm35 - 45 mm
ID 150 mm (6 inch)100 mm / 150 mm / 200 mm1.0 mm or 2.0 mm2.0 mm40 - 50 mm
ID 155 mm200 mm1.0 mm or 2.0 mm2.0 mm40 - 50 mm
ID 159 mm100 mm / 150 mm / 200 mm / 250 mm1.0 - 1.5 mm or 2.0 mm2.0 mm40 - 50 mm
ID 170 mm110 mm / 200 mm1.0 - 1.5 mm or 2.0 mm2.0 mm40 - 50 mm
ID 195 mm200 mm1.0 - 1.5 mm or 2.0 mm2.0 mm40 - 50 mm
ID 200 mm (8 inch)150 mm / 250 mm1.0 - 1.5 mm or 2.0 mm2.0 mm40 - 50 mm
ID 205 mm110 mm / 250 mm1.5 mm or 2.0 mm2.0 mm40 - 50 mm
ID 219 mm (8.5 inch)110 mm / 200 mm1.5 mm or 2.0 mm2.0 mm40 - 50 mm
ID 250 mm (10 inch)200 mm / 250 mm1.5 mm or 2.0 mm2.0 mm50 mm
ID 255 mm200 mm1.5 mm or 2.0 mm2.0 mm50 mm
ID 273 mm (10.75 inch)120 mm1.5 mm or 2.0 mm2.0 mm45 - 50 mm
ID 300 mm (12 inch)200 mm / 250 mm1.5 mm or 2.0 mm2.0 mm50 mm
ID 320 mm150 mm1.5 mm or 2.0 mm2.0 mm50 mm

2. Extended Cylindrical & Large-Diameter Series (ID 90 mm to 550 mm)

Series CategoryAvailable Inner Diameters ID (mm)Standard Total Length L (mm)Wall Thickness (mm)Typical Application
Medium Extended Sleeves90, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190 mm250 mm2.0 mmVertical spout chutes, vibratory feeders, extended pipe gaps
Large Extended Sleeves200, 210, 220, 230, 240, 250, 260, 270, 280, 290, 300 mm250 mm (ID 220 mm also in L 150 mm)2.0 mmWeigh hoppers, rotary sifters, IBC & big-bag discharge stations
Extra-Large Hopper Sleeves320, 330, 350, 380, 400, 450, 500, 550 mm250 mm2.0 mmSilo outlets, bulk bin transitions, large dust-tight chutes
Concentric Reducer SleeveTop ID 140 mm to Bottom ID 160 mm100 mm2.0 mmConnecting mismatched inlet and outlet pipe diameters
  • Installation Note: Slide the straight cuffs over your equipment spigots and secure them tightly using standard stainless steel worm-gear hose clamps or T-bolt clamps.

Why Engineers Specify Our Silicone Weighing Connectors (Solving Common Pain Points)

1. Eliminates Parasitic Tare Forces for Load-Cell Accuracy

Stiff rubber or fabric connectors introduce vertical and horizontal spring forces that corrupt load-cell readings and cause weight drift. Our lantern-shaped single-arch bellows with an ultra-flexible 0.8-1.0 mm belly wall decouples mechanical vibration and protects gravimetric dosing accuracy.

2. 100% Seamless One-Piece Molded Construction

Unlike glued or heat-welded sleeves that split along overlapped seams or trap fine powders, our connectors are compression-molded in a single piece. The smooth, seamless inner wall prevents material hang-up, cross-contamination, and bacterial growth in sanitary food and pharmaceutical lines.

3. Tear-Resistant 2.0 mm Reinforced Clamping Cuffs

Uniformly thin silicone tubes often tear under the clamping pressure of metal hose clamps. We reinforce the straight clamping cuffs to 1.5-2.0 mm while keeping the central bellows ultra-thin, ensuring secure clamp retention and a significantly longer service life.

4. CIP-Ready & Wide Temperature Resistance (-50 deg C to +200 deg C)

Unlike deep-groove corrugated tubes that accumulate powder, our smooth-wall lantern profile simplifies Clean-In-Place (CIP) washing and steam sterilization. The elastomer remains flexible from -50 deg C to +200 deg C (-58 deg F to +392 deg F) without hardening or cracking.

Verified Food-Grade Compliance: US FDA 21 CFR 177.2600 (SGS Tested)

Our food-grade silicone elastomer (Compound Model NE-261) is independently tested by SGS (Report No. TSNEC25003876901) and fully complies with US FDA 21 CFR 177.2600 (Total Extractives for repeated food contact) and GB 4806.11-2016.

Extraction SimulantTest Condition (FDA 21 CFR 177.2600)FDA Maximum LimitSGS Tested ResultConformity
Distilled Water (First Extraction)Reflux temperature for 7.0 hours20 mg/sq. in.ND (Not Detected, under 0.5 mg/sq. in.)PASS
Distilled Water (Succeeding Extraction)Reflux temperature for 2.0 hours1 mg/sq. in.ND (Not Detected, under 0.5 mg/sq. in.)PASS
n-Hexane (Fatty Food First Extraction)Reflux temperature for 7.0 hours175 mg/sq. in.10.3 mg/sq. in. (94% below max limit)PASS
n-Hexane (Succeeding Extraction)Reflux temperature for 2.0 hours4 mg/sq. in.1.1 mg/sq. in.PASS
  • Full SGS FDA test reports and material compliance certificates are available upon request for quality audits.

Typical Industrial Applications

This HC hose-clamp series silicone flexible compensator is widely specified for:

  • Loss-in-weight (LIW) feeders and gravimetric twin-screw dosers
  • Load-cell weigh hoppers, batching scales, and micro-dosing systems
  • Vibratory weigh feeders and sifter transitions in pharmaceutical cleanrooms
  • Sanitary powder, infant formula, API, and food additive processing plants
  • Volumetric-to-gravimetric feeder upgrades and OEM equipment maintenance

Custom Manufacture & Fast RFQ Guide (For Procurement & Engineering)

SOSHH provides fast global shipping on over 60 standard molded sizes and rapid custom manufacturing for non-standard transitions. To request a fast quote (RFQ), please provide our engineering team with the following details:

  1. Pipe Outer Diameter (OD): Top and bottom metal pipe ODs (e.g., straight ID 114 mm to ID 114 mm, or custom reducer like ID 140 mm to ID 160 mm).
  2. Total Length (L) & Cuff Length: Total installation length and required clamping cuff length (standard cuff length is 25-50 mm for hose clamping, extendable upon request).
  3. Operating Environment & Wall Thickness: Specify whether you require the ultra-thin 0.8-1.0 mm belly for high-sensitivity load cells, the standard 2.0 mm wall for general dust-tight transitions, or Ether-based TPU for highly abrasive materials.

Frequently Asked Questions (Engineering & Procurement FAQ)

How do I choose the correct connector Inner Diameter (ID) for my pipe?

Measure the Outer Diameter (OD) of your existing metal inlet and outlet pipes. Because food-grade silicone is highly elastic, select a connector Inner Diameter (ID) that matches or is 1-2 mm smaller than your metal pipe OD for a tight, slip-on fit before securing with a hose clamp.

Should I select the 0.8-1.0 mm belly thickness or the 2.0 mm standard thickness?

Specify the 0.8-1.0 mm ultra-thin belly (with 2.0 mm reinforced cuffs) for micro-dosing feeders and high-resolution load cells where zero vertical stiffness is critical. Specify the 2.0 mm uniform wall thickness for larger pipe diameters (ID 150 mm to 550 mm), higher bulk flow rates, or systems operating under slight negative dust-extraction pressure.

Are FDA 21 CFR 177.2600 test reports available for audit?

Yes. Our silicone raw material is third-party tested by SGS against US FDA 21 CFR 177.2600 (Report No. TSNEC25003876901) and Chinese standard GB 4806.11-2016. Full PDF test reports are provided upon request.
