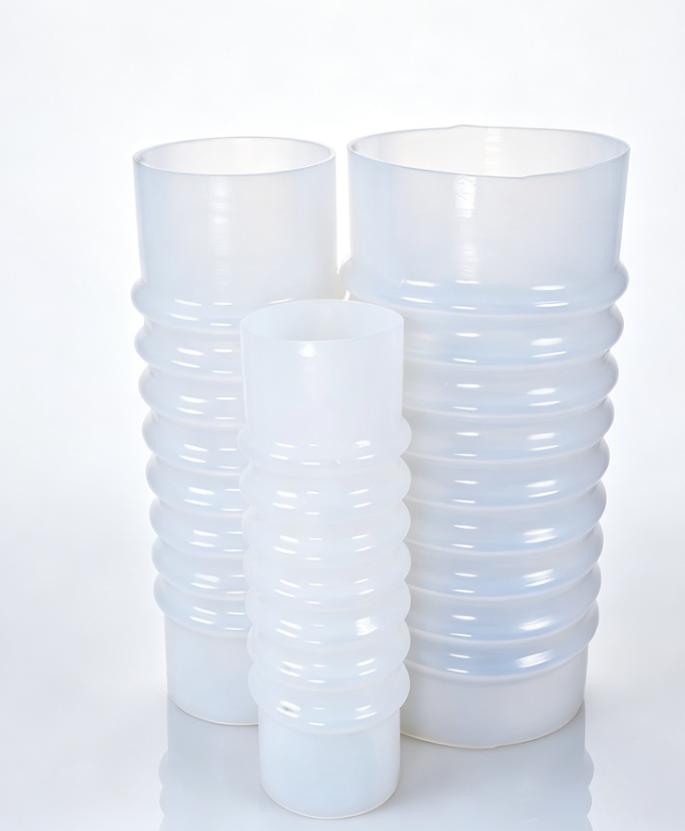

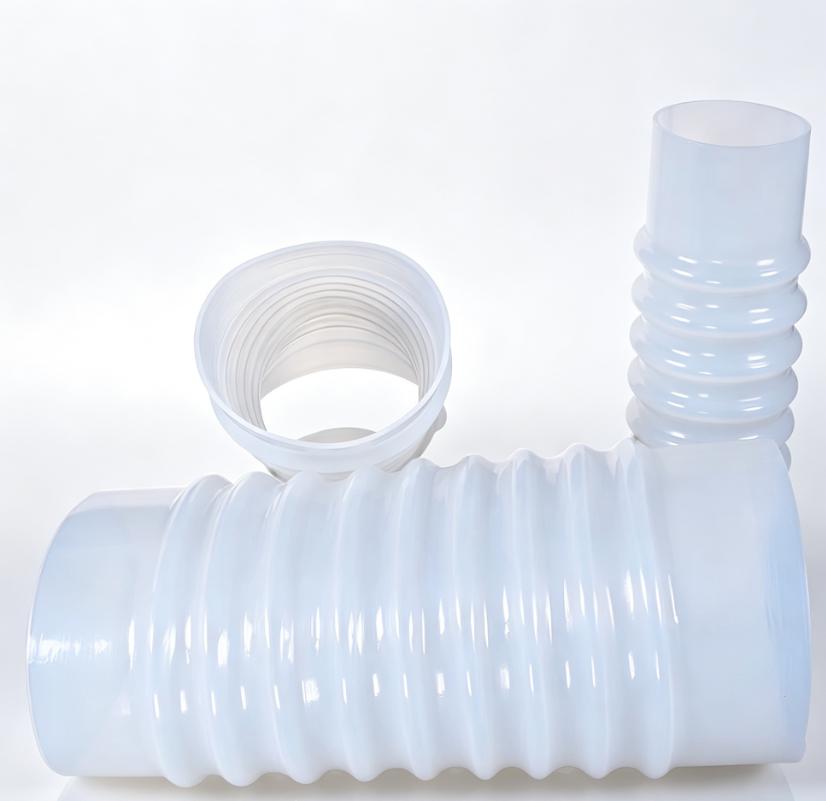

The HC Series food-grade silicone flexible connector uses platinum-cured silicone with hose clamp (HC) ends, for food, dairy and pharmaceutical powder lines that need hygienic, non-abrasive, high-temperature transfer. Selected for its −50 °C to +200 °C temperature tolerance, Shore 50A–70A softness and semi-transparent wall, it seals over the pipe outer wall without welding or equipment modification.
Product Overview
The HC Series food-grade silicone flexible connector is designed for non-abrasive, hygienic powder transfer where temperature range and cleanability matter more than abrasion resistance:
- Platinum-cured food-grade silicone — odorless, taste-neutral, latex-free.
- −50 °C to +200 °C continuous working temperature — handles hot CIP/SIP washdown and cold storage.
- Shore 50A–70A — extremely soft and flexible, absorbs vibration without transferring load.
- Hose clamp (HC) connection — slides over the pipe outer wall, secured with a throat clamp; no welding, no flange modification.
Material Specifications (SSOT)
| PROPERTY | SSOT VALUE | WHY IT MATTERS |
|---|
| Material | Platinum-cured food-grade silicone | Hygienic, odorless, latex-free |
| Hardness | Shore 50A – 70A | Extremely soft, high flexibility |
| Working temperature | −50 °C to +200 °C | Hot CIP and cold storage |
| Tensile strength | 7 – 10 MPa | Sufficient for non-abrasive transfer |
| Abrasion resistance | ★★☆☆☆ | Low — use only for non-abrasive powder |
| Transparency | Semi-transparent / translucent white | Visual material-flow monitoring |
| Regulatory (material) | GB 4806.11-2016 tested supplier material | China food-contact, material level |
| FDA finished-product | Report available on request | Product-level report pending |
Standard Size Chart (All Fully Customizable)
All dimensions below are standard references only. As a direct manufacturer, every dimension can be fully customized to match your existing equipment — ID, length, wall thickness, corrugation count and profile.
| NOMINAL SIZE | INNER DIAMETER (ID) | STANDARD LENGTH (L) | WALL THICKNESS | MATERIAL |
|---|
| DN100 | 100 mm (4") | 150 / 200 mm | 3.0 – 4.0 mm | Food-Grade Silicone |
| DN150 | 150 mm (6") | 200 / 250 mm | 3.0 – 4.0 mm | Food-Grade Silicone |
| DN200 | 200 mm (8") | 250 / 300 mm | 4.0 mm | Food-Grade Silicone |
| DN250 | 250 mm (10") | 250 / 300 mm | 4.0 mm | Food-Grade Silicone |
| DN300 | 300 mm (12") | 300 / 350 mm | 4.0 – 5.0 mm | Food-Grade Silicone |
Customization note: ID from DN25 up to DN1000+, lengths from 50 mm to 1000+ mm, wall thickness from 0.5 mm (soft) to 5.0 mm (heavy). Send your spigot diameter and installation gap — we confirm the drawing within 24 hours.

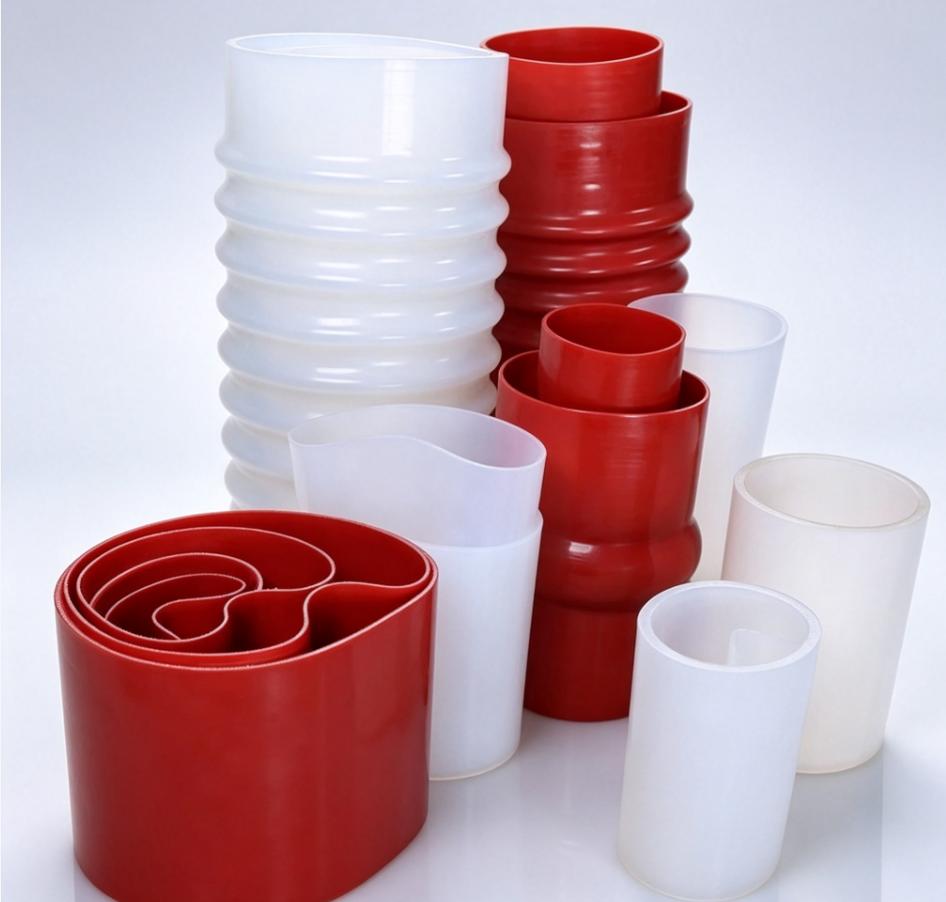

Custom Shapes & Profiles
Beyond straight sleeves, SOSHH provides bespoke molding for complex lines:
- Concentric & eccentric reducers — taper between different pipe diameters.
- Square & rectangular — for square chutes and sifter outlets.
- Square-to-round transition） — rectangular outlet to round pipe.
- Flanged ends — molded with integrated silicone flange for bolt-on installation.
- Color options — translucent white (standard food-grade), solid white, or custom pigmentation.
Compliance & Documentation
- GB 4806.11-2016 — food-grade silicone sourced from tested supplier material.
- FDA 21 CFR 177.2600 — finished-product compliance report available on request.
- Plasticizer-free, latex-free, BPA-free — suitable for direct food contact.
- Material Test Certificate (MTC) — shipped with each order.
Application Fit — When to Choose Silicone vs. TPU
| CONDITION | CHOOSE FOOD-GRADE SILICONE (HC) | CHOOSE POLYETHER TPU (HC) |
|---|
| Food/dairy/pharma, non-abrasive powder | ✅ | ✅ |
| Hot CIP/SIP washdown | ✅ (up to +200 °C) | ⚠️ (up to +110 °C) |
| Abrasive powder (cement, glass, minerals) | ❌ Low tear resistance | ✅ (39.0 mg DIN, ★★★★★) |
| High-frequency vibrating screen | ⚠️ Only if non-abrasive | ✅ Recommended |
| Visual flow monitoring | ✅ Semi-transparent | ✅ (ClearFlex transparent) |
FAQ
Q: What is the temperature range of food-grade silicone?
A: −50 °C to +200 °C continuous. It tolerates hot CIP/SIP washdown and cold storage, unlike polyether TPU which is limited to −20 °C to +110 °C.
Q: Is silicone tear-resistant?
A: No. Silicone has low tear/abrasion resistance (tensile 7–10 MPa). It is specified for non-abrasive food/pharma transfer. For abrasive powder, choose polyether TPU.
Q: Is this product FDA compliant?
A: The material is sourced from a GB 4806.11-2016 tested supplier. An SOSHH finished-product FDA 21 CFR 177.2600 report is available on request.
Q: Can you match my existing spigot size?
A: Yes. All dimensions — ID, length, wall thickness, corrugation profile — are fully customizable. Send your drawing for a 24-hour approval.
Next Step — Send Your Drawing or Photo
Not sure which size, material, or connection type you need? Send us a drawing, sketch, or a photo of your existing connector — including the spigot/pipe outer diameter, installation gap (IG), and operating temperature if known.
Our engineering team will:
- Analyze your installation — confirm the correct ID, length, wall thickness and connection type.
- Recommend the right material — food-grade silicone vs. polyether TPU vs. PTFE, based on your powder, temperature and CIP cycle.
- Return an engineering solution + quotation — with a confirmation drawing, typically within 24 hours.
📩 Email: AMIN@soshh.com
🌐 Web: www.soshh.com
Attach photos of the existing sleeve (installed and removed), and note the spigot OD and installation gap for the fastest turnaround.
